Eje de 22 mm
Pasadores de Cerradura
Eje de 38 mm
Pasadores de Cerradura

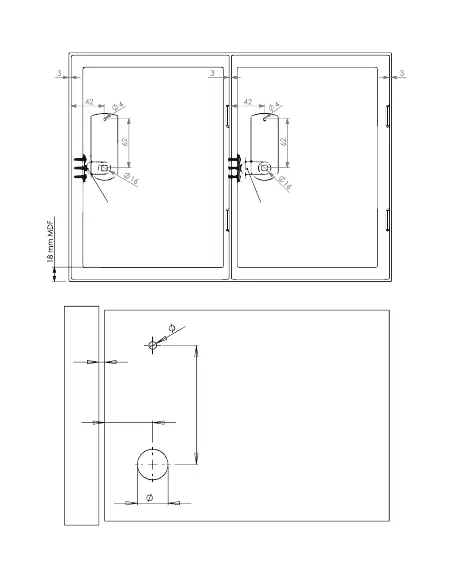

DIMENSIONES DE INSTALACIÓN PARA LA CERRADURA RECESSADA
25
3
16
62
4
DIMENSIONES DE INSTALACIÓN PARA LA CERRADURA CONJUNTA INDENTADA
20
