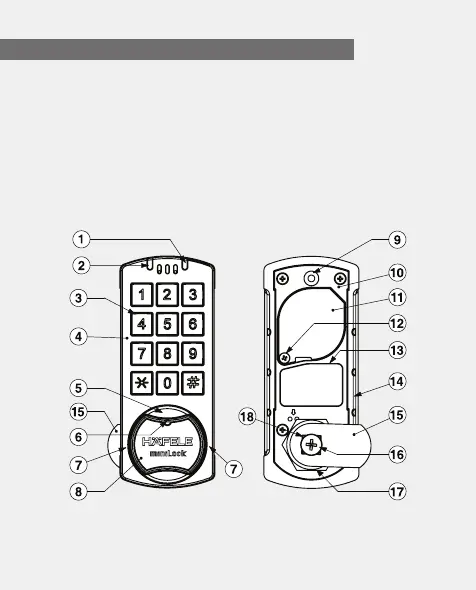

ALLGEMEINE INFORMATIONEN
1. Rote LED
2. Grüne LED
3. Tastatur
4. Schlossgehäuse
5. Markierung für verschlossenen Riegel
6. Griff-Markierung
7. Markierung für offenen Riegel
8. Griff
9. Montagemutter
10. Schlossgehäuse
11. Batterieabdeckung
12. Schraube für Batterieabdeckung
13. ID-Etikette
14. Rahmen für Handgriff
15. Dreh-Riegel
16. Riegel-Schraube
17. Zylindermutter
18. R/L Stop-Nocken
Vorn Hinten
