Mortise Lock Exit Device
Installation Instructions
I-ED01553
Rev 4, Rev Date: 06/19/18 27390043 Page 2 of 10
Fasteners and Other Parts Included
Qty.
Purpose
¼”-20 x ¾” Pan Head Machine Screws
4
Through-bolting to wood or metal doors or surface mounting to metal
doors
#12 x 1.25” Wood Screws
4
Surface mounting to wood doors
Hex Dogging Wrench
1
Used to dog the device
Mortise Lock Armor Plate
1
Protects mortise lock body
M4 x 0.7 x 6 Flat Head Machine Screw
2
Fastening the armor plate to the mortise lock
#12 Combination Wood/Metal Screw
4
Fastening the strike to the frame and the mortise lock body to the door

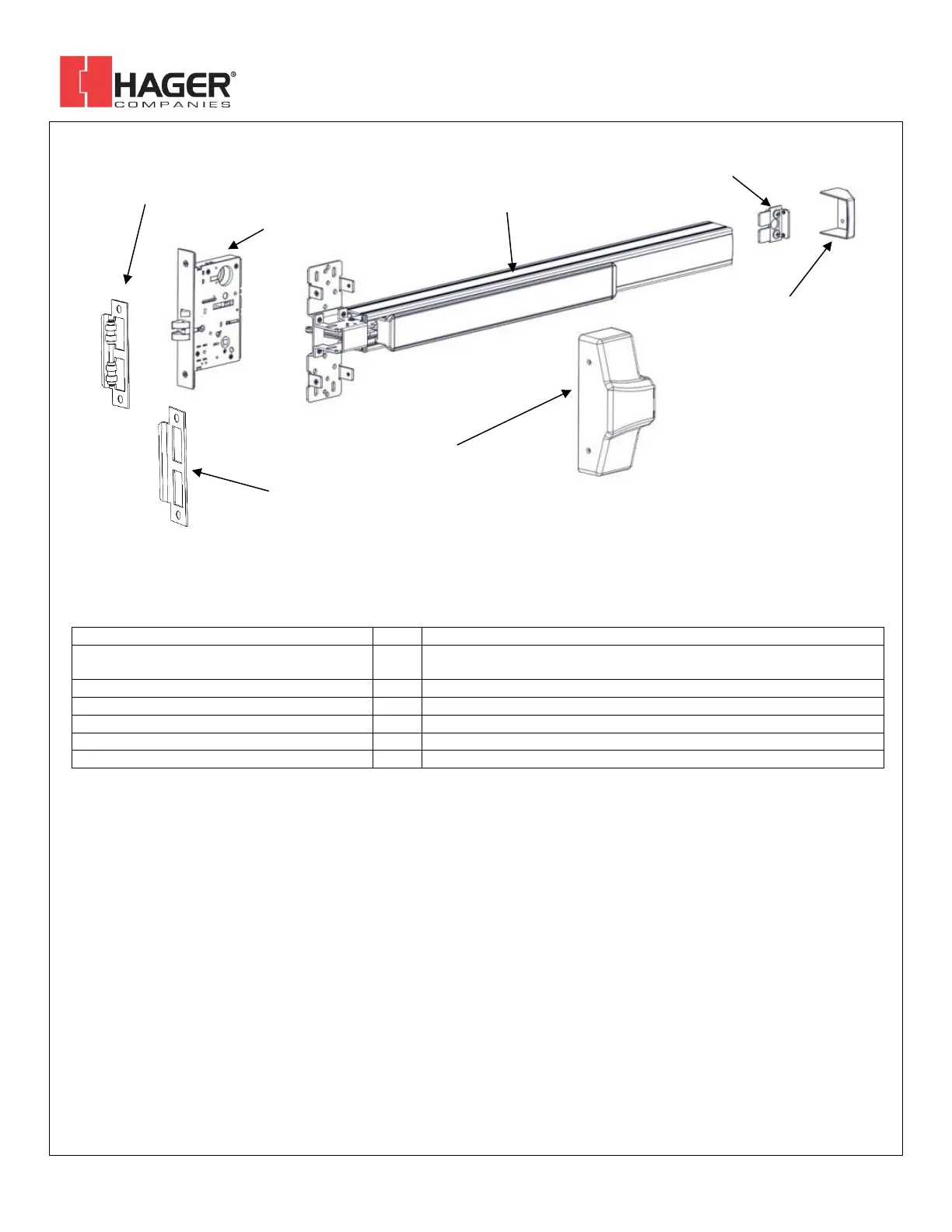

MORTISE STRIKE (PANIC-RATED)
MORTISE LOCK BODY
MORTISE LOCK EXIT DEVICE
END CAP BRACKET
END CAP
CHASSIS COVER
MORTISE STRIKE (FIRE-RATED)
