hager 5200 Series User Manual

Interior Door Width
24"
(610mm)
30"
(762mm)
34"
(865mm)
38"
(965mm)
48"
(1219mm)
54"
(1372mm)
Size 2
(5ccw)
Size 3
(0)
Size 4
(5cw)
Size 5
(10cw)
Size 1
(5ccw)
Size 1
(10ccw)
Size 2
(0)
Size 3
(5cw)
Size 4
(10cw)
Exterior (and Vestibule) Door Width
24"
(610mm)
30"
(762mm)
36"
(914mm)
42"
(1067mm)
Size 3
(0)
Size 4
(5cw)
Size 5
(10cw)
Size 3
(5cw)
Size 4
(10cw)
Regular Arm &
Top Jamb
Parallel Arm
Regular Arm &
Top Jamb
Parallel Arm
Minimum Door Width (24")
Minimum Door Width (24")
L
S
L
S
ADJUSTMENTS (USE 5/32" HEX WRENCH FOR THESE ADJUSTMENTS)
SPRING POWER ADJUST (Sizing in accordance to BHMA/ANSI 156.4)
ARM PLACEMENT IN SHOE
SWEEP SPEED LATCH SPEED BACKCHECK
5200 Series Door Closer - Adjustments
Installation Instructions
Meets ANSI A156.4
6
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149
(Use 5/32" Hex Wrench
for this adjustment)
Adjust latch speed so door
completely closes and latches.
Adjust backcheck accordingly
to prevent excessive opening
speed.
Note: Adjust closing time speed
to between 3 and 7 seconds
from 90˚ to 0˚. Greater closing
times may be required for
elderly or handicapped.
TABLE OF SIZES
Closer is shipped set to size
3. To change the closer size,
use a hex wrench to rotate
the spring power adjust.
Follow the chart to make the
correct numbers of 360°
turns to set the closer size
appropriately for the door
application.
The number of turns is an
approximation and does not
account for environmental or
door hardware affects.
Approx. 5 turns to
increase / decrease one size.
cw = clockwise
ccw = counterclockwise
7-1/2% Stronger
7-1/2% Weaker
or
or
---
-----
OPTIONAL DELAY ACTION
Adjust delay action accordingly to
obtain desired delay time.
L
S

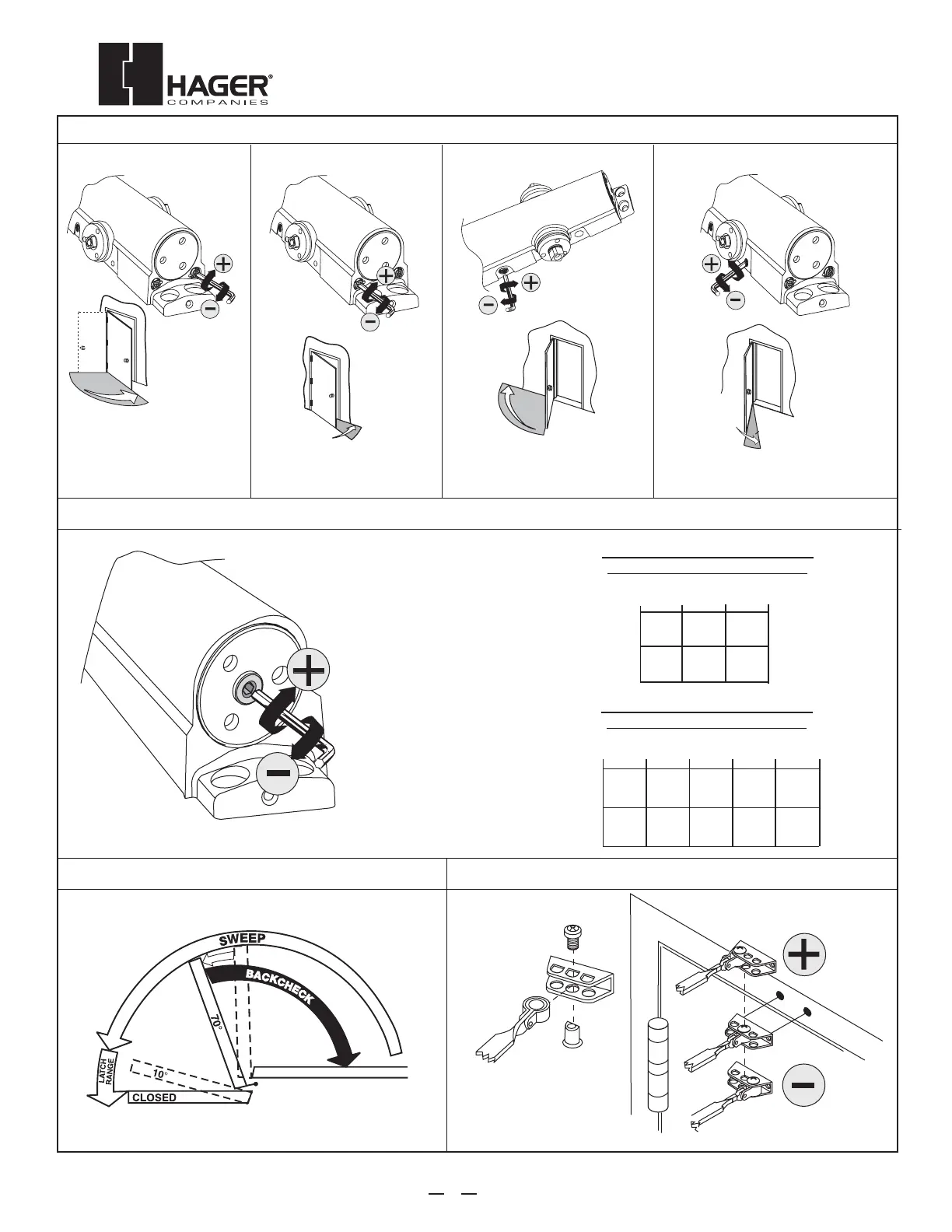

ADJUSTMENT DIAGRAM
DELAY

hager 5200 Series Specifications
