FRAME
WHEN ASSEMBLING TO SPINDLE
PINION FLAT
L
H
R
POSITION OF MAIN ARM
RIGHT HAND DOOR
90˚ RIGHT ANGLE
1-1/4"
(32mm)
1-3/4"
(44mm)
1"
(25mm)
9-1/16"
(230mm)
6"
(152mm)
3/4"
(19mm)
A
L
S
1. PARTS
3. INSTALL CLOSER
2. MARK AND DRILL HOLES (Right Hand Shown)
4. INSTALL MAIN ARM 5. INSTALL MAIN ARM AND
CONNECTING ROD
7. ADJUSTMENTS 8. INSTALL COVER / PINION CAP
COVER
PINION CAP
Select hand of door and degree
of door opening. Fold template
on the corresponding line for
desired degree of door opening
and hand. Match this line with
the hinge edge of door and
attach template to door. Be sure
frame line on template lines up
with the bottom edge of frame
face. Mark, prep and drill/tap
1/4" - 20 holes for closer body
and jamb shoe mounting screws.
Remove template and use mounting screws
to install the closer body to the door and the
jamb shoe to the frame. Closer body should
be oriented so that the speed regulating valves
are toward the hinge stile of door.
Press pinion cap onto un-used closer
body spindle. If installing cover instead
of pinion cap, slide cover over closer
body and secure by tightening screws.
Orient main arm so that the “H”, located on
the main arm, lines up with the flat on the
spindle. Press arm down on spindle and
secure with spindle bolt.
Slide connecting rod into forearm of main arm.
Rotate main arm until connecting rod is at a
90˚ angle to frame. While holding arm in this
position, tighten down forearm screw.
Door Opening Dimension “A”
To 100
7"
(178mm)
6"
(152mm)
3-1/2"
(89mm)
101 to 120
121 to *180
*Door/Wall/Hardware/Jamb
conditions permitting
Speed regulating valves toward hinge edge.

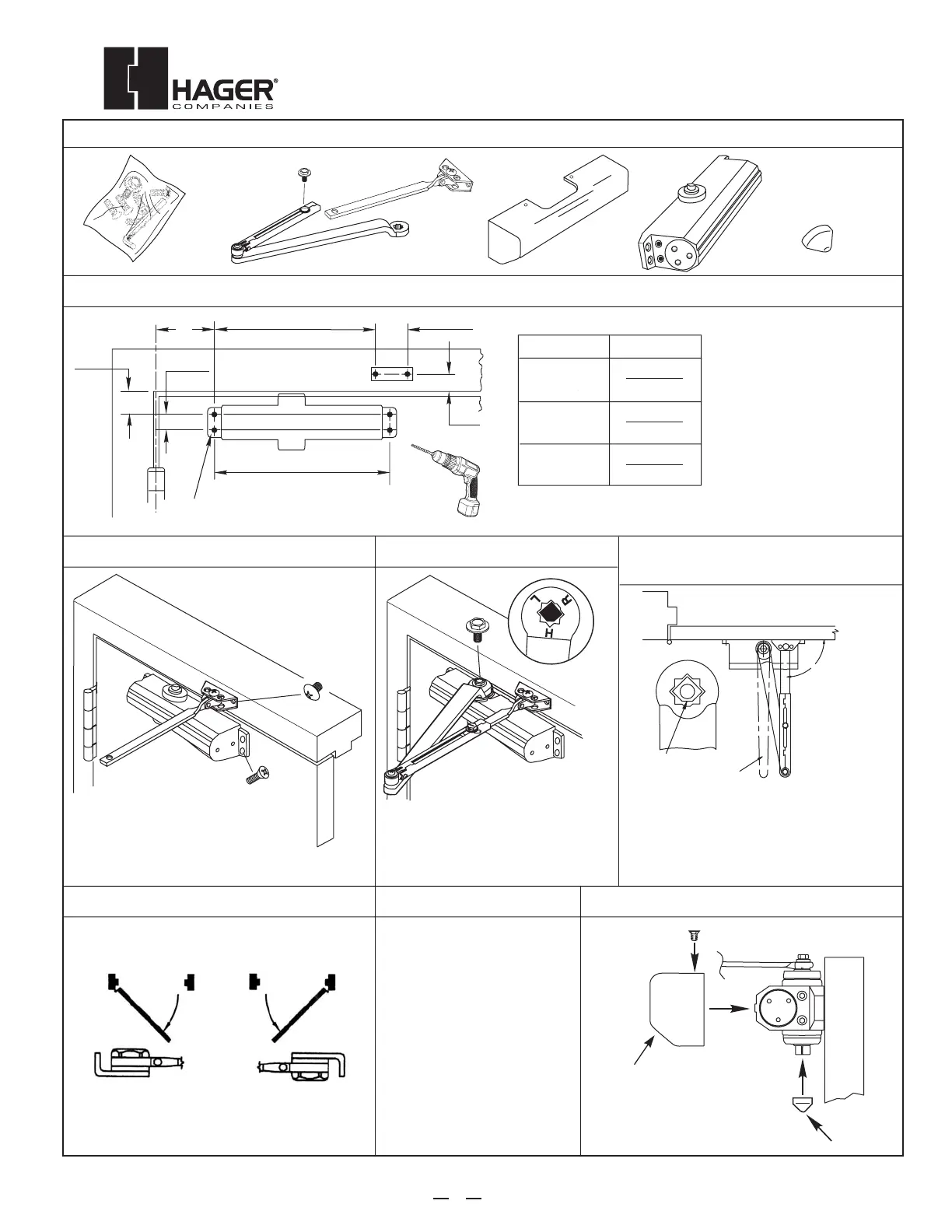

5300 Series Non-Hold Open Door Closer - Regular Arm
Installation Instructions
Meets ANSI A156.4
2
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149
6. OPTIONAL HOLD-OPEN ARM
See Adjustments on Page 6
for setting Spring Power,
Sweep Speed, Latch Speed,
and Backcheck.
NOTE: Do not fully unscrew valves or
hydraulic fluid will leak and closer will no
longer be functional.
Identify direction of hold-open nut according to hand
of door and mount arm.
Adjust by loosening hold-open nut, then open door
to desired position and tighten hold-open nut
securely.
To Next Page
