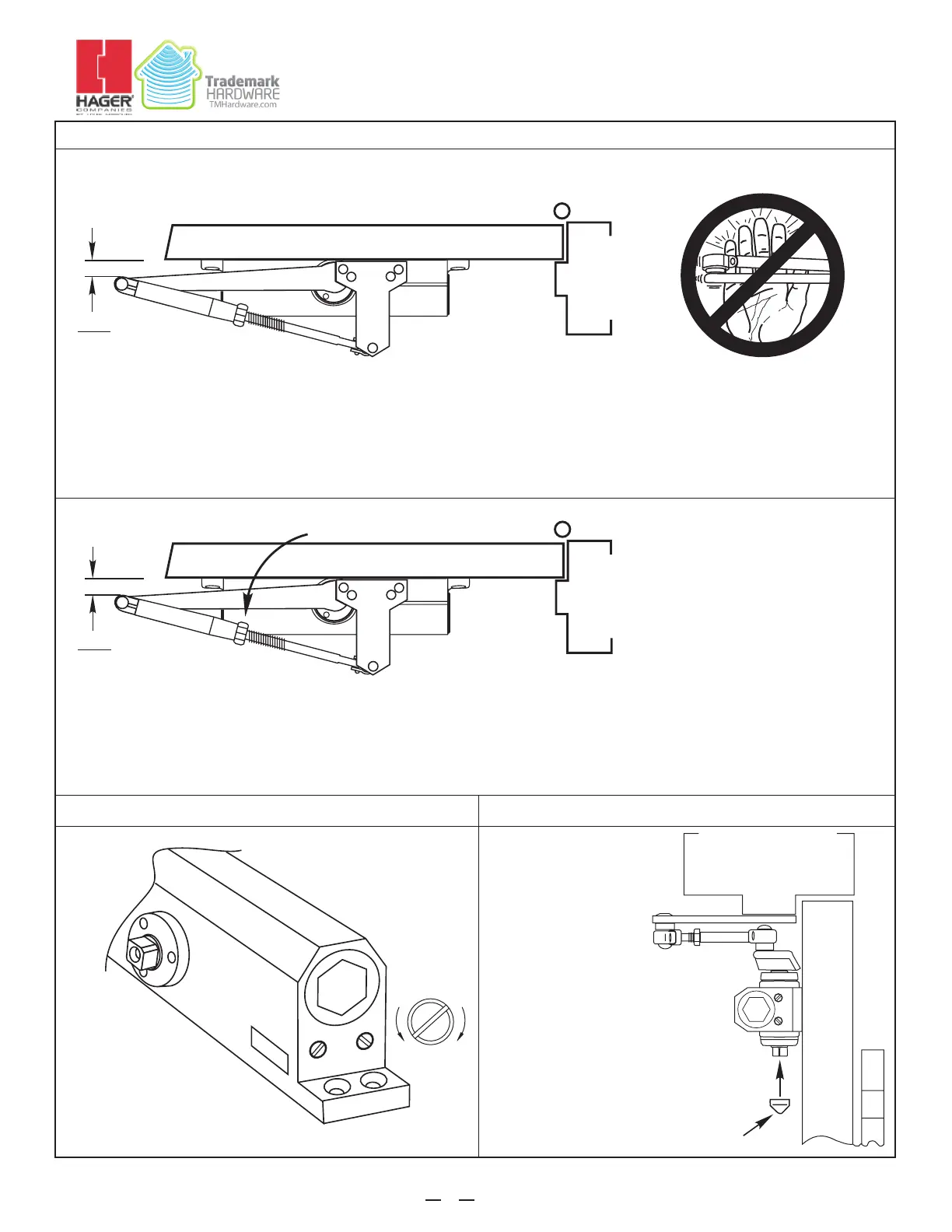

6. INSTALL MAIN ARM AND CONNECTING ROD
7. ADJUSTMENTS 8. INSTALL PINION CAP
Screw connecting rod into forearm of main arm
until pivot point is 1-1/2" from door surface.
While holding arm in this position, tighten down forearm screw.
5400 Series Non-Hold Open Door Closer - Parallel Arm
Installation Instructions
a)
b)
4
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995 • Fax (800) 782-0149
PINION CAP
Press pinion cap onto un-used closer
body spindle.
See Adjustments on Page 6 for setting
Sweep Speed and Latch Speed.
NOTE: Do not fully unscrew valves or hydraulic fluid will leak and
closer will no longer be functional.
1-1/2"
(38mm)
1-1/2"
(38mm)
