Technical specifications :
Electrical characteristics :
- supply voltage : 230V +10/-15% 50Hz
- outputs : 2 changeover contact
µ 16A - 250V AC1.
µ 3A - 250V cos = 0,6
1000 W incandescent lighting
- power consumption : 1 VA
- protection degree : IP20
- insulation class : II
Functional characteristics :
- accuracy : ± 1sec. / day at 20 °C
- operating reserve : lithium battery,
total of three years.
Environment :
Operating temperature : -10 to +50 °C
Storage temperature : -10 to +50 °C
Connection tunnel terminals :
flexible : 0,5 to 2.5 mm
2
rigid : 0,5 to 4 mm
2
Dimensions : 3 modules (3x17,5mm)
Electrical connections :

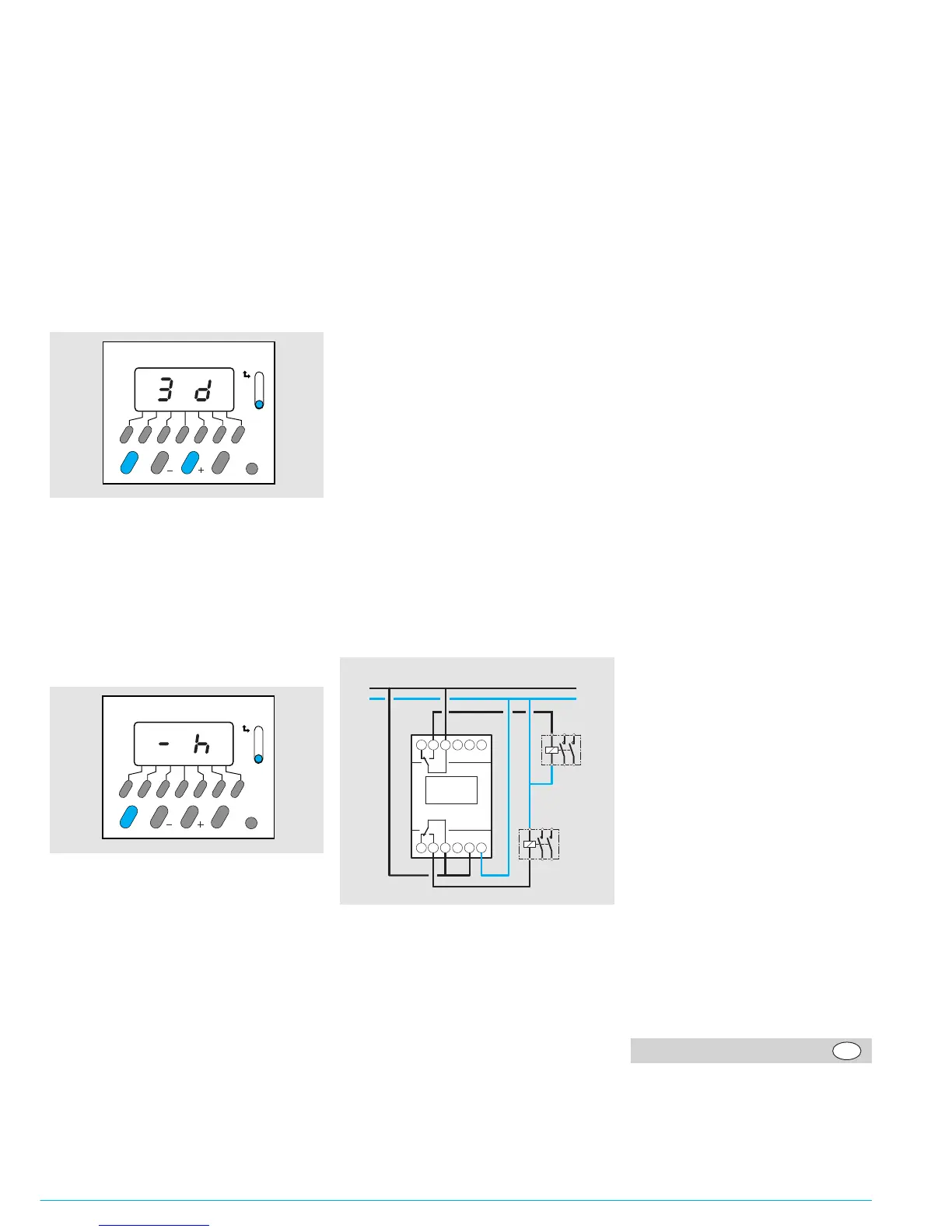

1. Move mode selector to “manu”.
2. Select the state of the outputs with key “on/off”.
3. Input with key “+” and “-” the override duration :
from 1 to 23 hours by steps of 1 hour.
Then from 1 to 27 days by steps of 1 day.
4. Move mode selector to “auto”.
The state indication is flashing. This means a timed
override. Return to the initial program after the
duration.
To reset the time switch :
Press “reset“ to clear the program.
1. Move mode selector to “manu”.
2. Press key “-” or “+” until display -h.
3. Move mode selector to “auto” to switch back to
automatic mode.
Timed override :
To cancel the timed override :
A warranty period of 24 months is offered on hager products,
from date of manufacture, relating to any material of manu-
facturing defect. If any product is found to be defective it must
be returned via the installer and supplier (wholesaler). The
warranty is withdrawn if :
- after inspection by hager quality control dept the device is
found to have been installed in a manner which is contrary to
IEE wiring regulations and accepted practice within the industry
at the time of installation.
- the procedure for the return of goods has not been followed.
Explanation of defect must be included when returning
goods.
Warranty
GB
6E 6128.b
