Performance and ceves diagrams

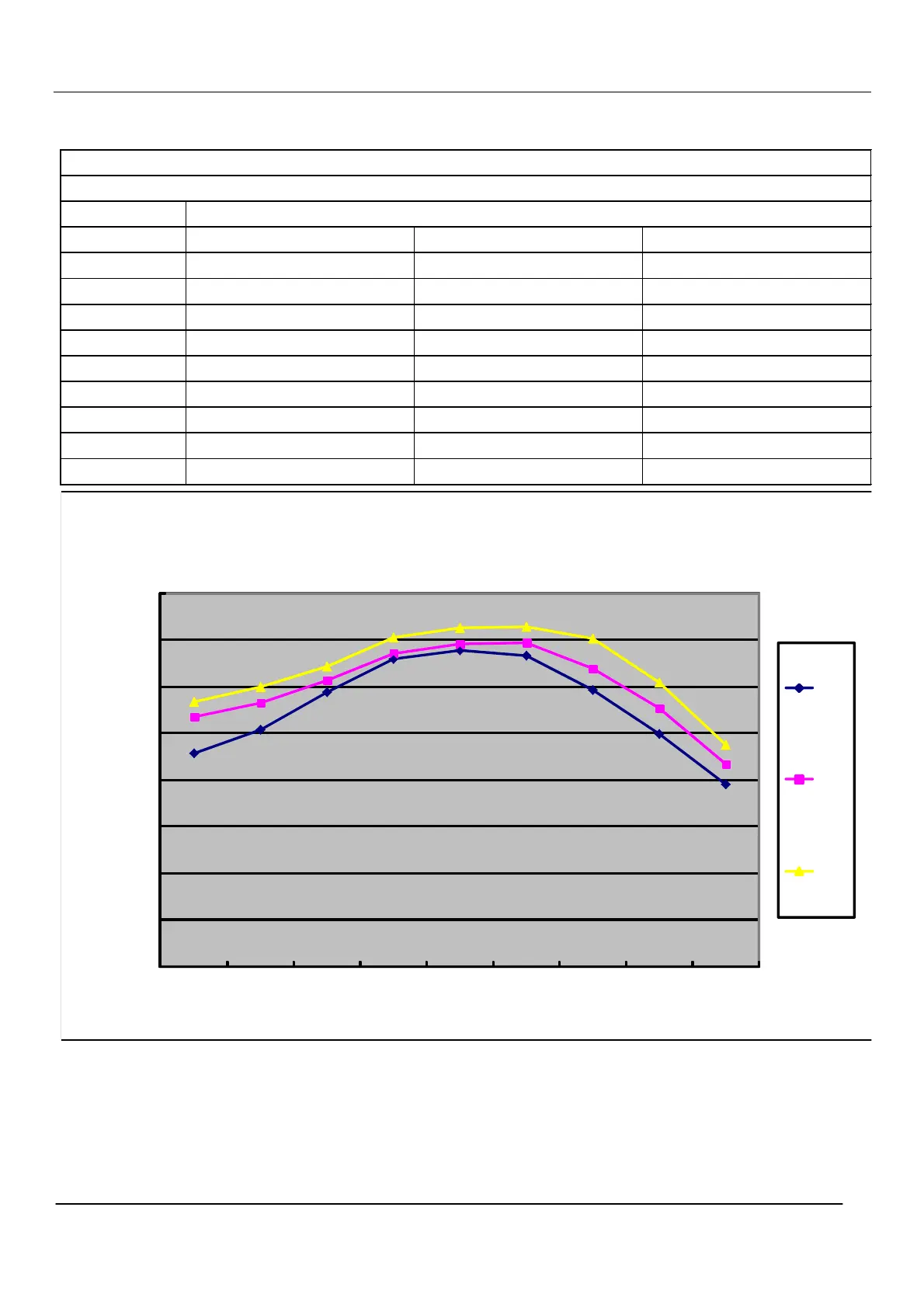

11.6 Heating power consumption value- temperature curves
performance curves
power consumption value-temp.table
outdoor temp. indoor temp.(humidity 46%)
DB/WB
10
℃
20
℃
27
℃
-20
℃
910 1071 1135
-15
℃
1015 1128 1196
-10
℃
1175 1224 1285
-7/-8
℃
1315 1342 1409
2/1
℃
1352 1379 1448
7/6
℃
1332 1388 1457
12/11
℃
1186 1275 1403
18/16
℃
996 1106 1217
24/20
℃
778 865 951
power consumption and temp
1600
1400
1200
10℃
1000
800
20℃
600
400
27℃
200
0
-20℃ -15℃ -10℃ -7/-8℃ 2/1℃ 7/6℃ 12/11℃ 18/16℃ 24/20℃
outdoor temp.(DB/WB)
56 Domestic air conditioner
power consumption(w)
