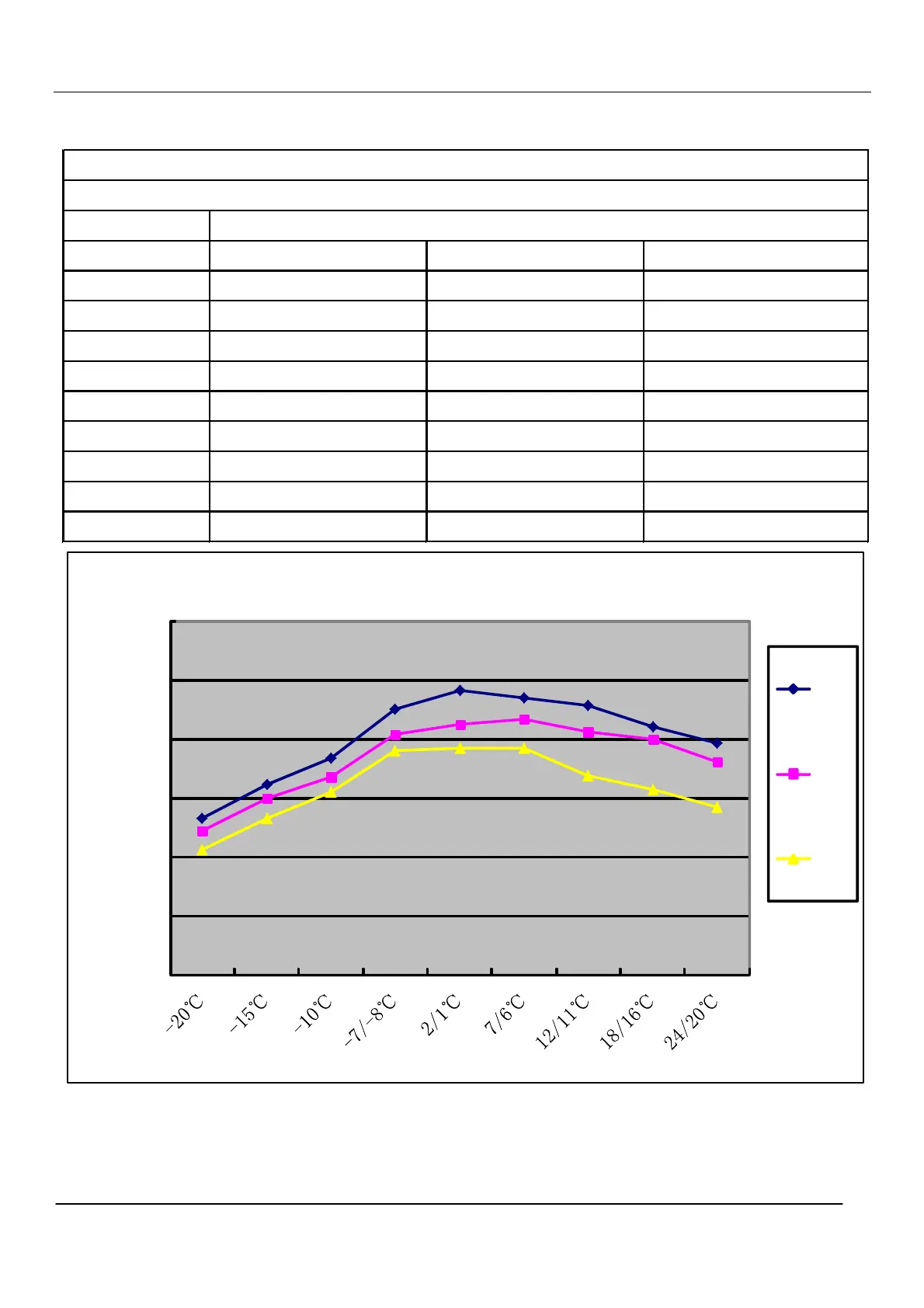

Performance and ceves diagrams
11.5 Heating capacity-temperature curves
performance curves
heating capacity and indoor/outdoor temp.table
outdoor temp. indoor temp.(humidity 46%)
DB/WB 10℃ 20℃ 27℃
-20℃
2654 2449 2123
-15℃
3229 3008 2654
-10℃
3672 3357 3097
-7/-8℃
4512 4091 3802
2/1℃
4824 4257 3860
7/6℃
4695 4335 3857
12/11℃
4584 4129 3375
18/16℃
4202 4005 3159
24/20℃
3941 3623 2843
heating capacity and indoor/outdoor temp.curves
6000
5000
10℃
4000
20℃
3000
2000
27℃
1000
0
outdoor temp.(DB/WB)
54 Domestic air conditioner
heating capacity(W)
