-7-

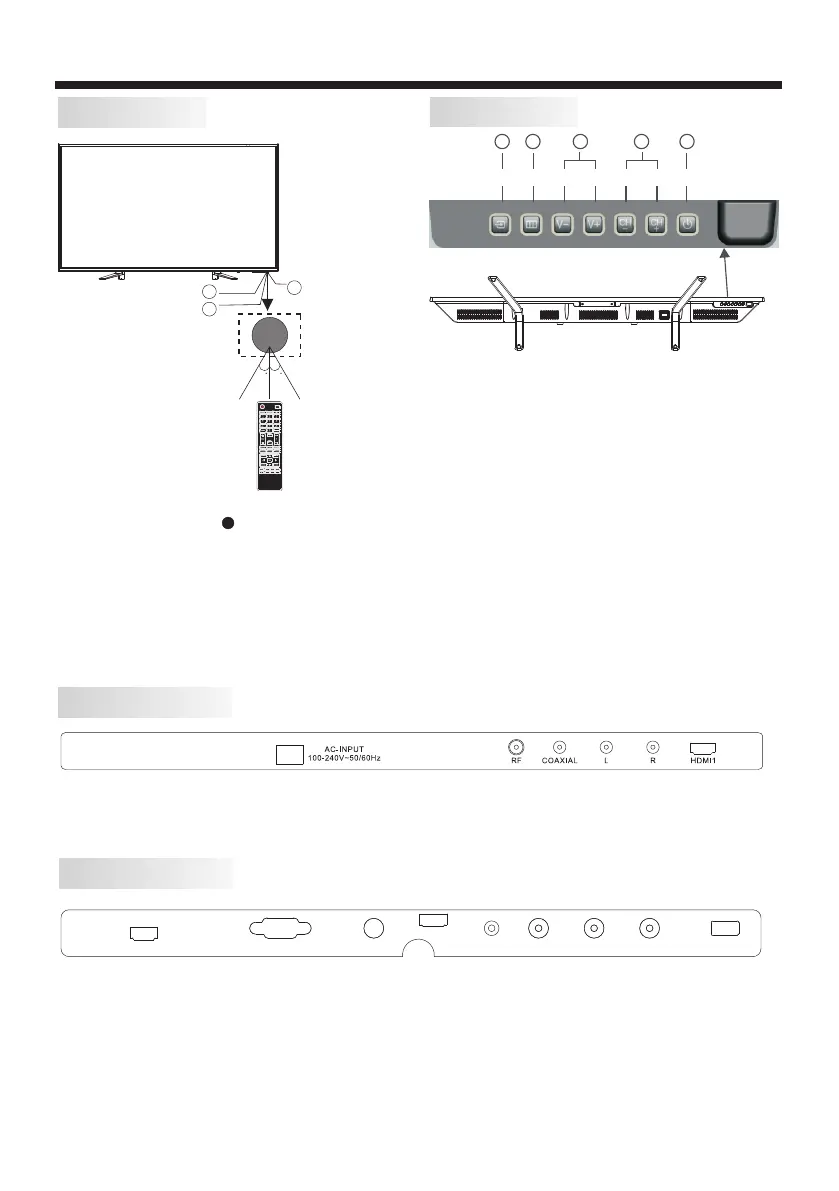

INSTALLATION
Front panel
REAR Connections
SIDE Connections
All the terminals are (from left to right):
MHL/HDMI2, VGA, PC AUDIO, HDMI3, HEADPHONE, AV/YPbPr(COMPONENT)INPUT, USB.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
AV and component (YPbPr) share the R and L audio inputs.
All the terminals are (from left to right):
POWER SOCKET, RF, COAXIAL (audio output), AUDIO INPUT, HDMI1.
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3:
Panel keys
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press“V+”or“V-”to
adjust the item that you selected.
4．CH-/CH+
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
SOURCE MENU V- V+ CH- CH+ Standby
1 2 3 4 5
Panel keys
USBAV/Y
Pb
PrVGA
HDMI3
PC AUDIO HEADPHONE
HDMI2
MHL
3
2
30 30
1
