188
Super Match
WARNING
Danger of bodily injury or death
■ Turn off electric power at circuit breaker or power source before making any electric connections.
■ Ground connections must be completed before making line voltage connection.
Precautions for Electrical wiring
■ Electrical wiring work should be conducted only by authorized personnel.
■ Do not connect more than three wires to the terminal block. Always use round type crimped terminal lugs with
insulated grip on the ends of the wires.
■ Use copper conductor only.
Selection of size of power supply and interconnecting wires
Select wire sizes and circuit protection from table below. (This table shows 20 m length wires with less than 2%
voltage drop.)
Item
Model
Phase
Circuit breaker
Power source
wire size
(minimum)
(mm
2
)
Earth leakage breaker
Switch
breaker (A)
Over-current
protector rated
capacity (A)
Switch
breaker
(A)
Leak
current
(mA)
AD48HS1ERA(S)
AD60HS1ERA(S)
3 30 20 4.0 30 30

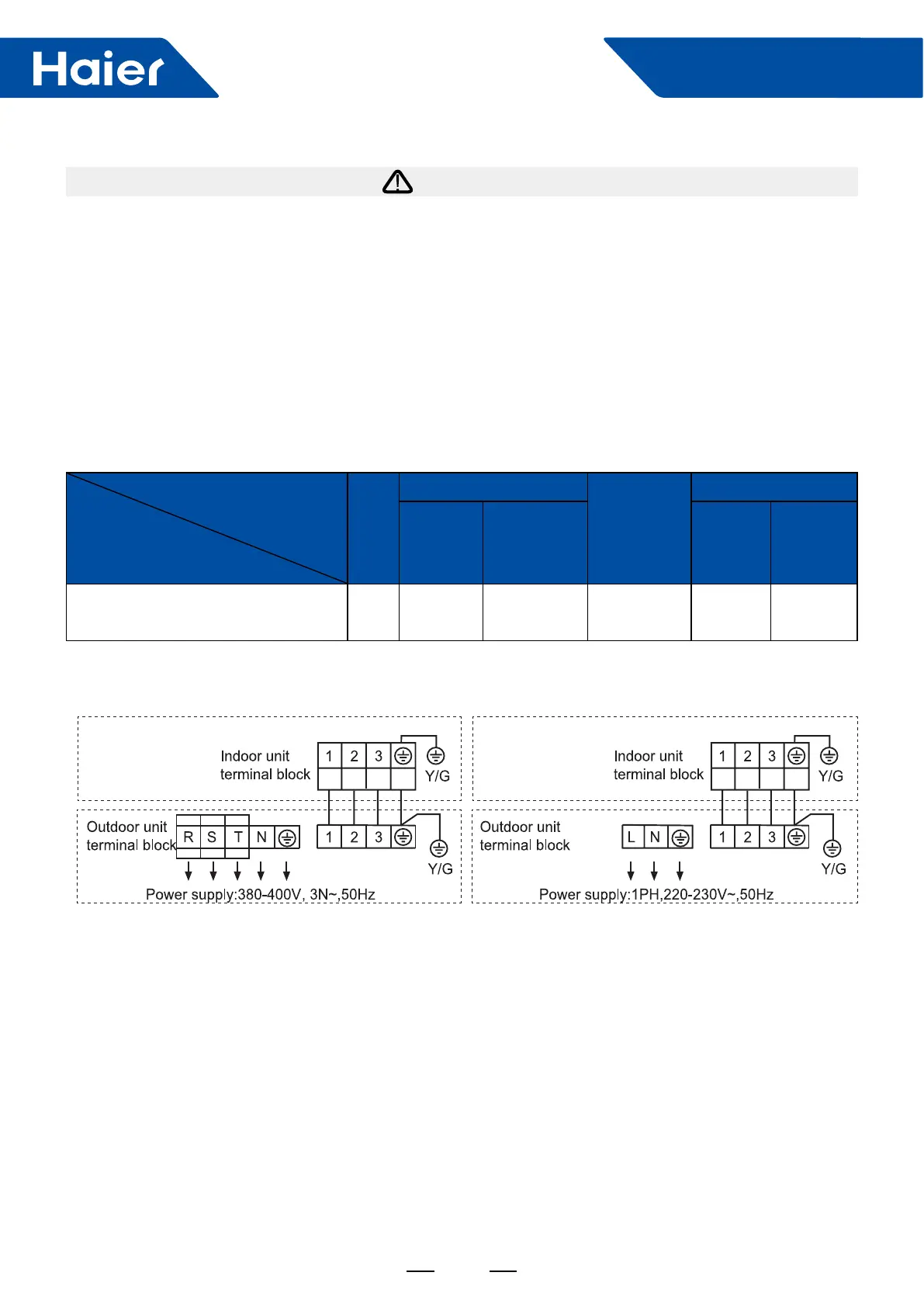

Wiring connection
Make wiring to supply power to the outdoor unit, so that the power for the indoor unit is supplied by terminals.
