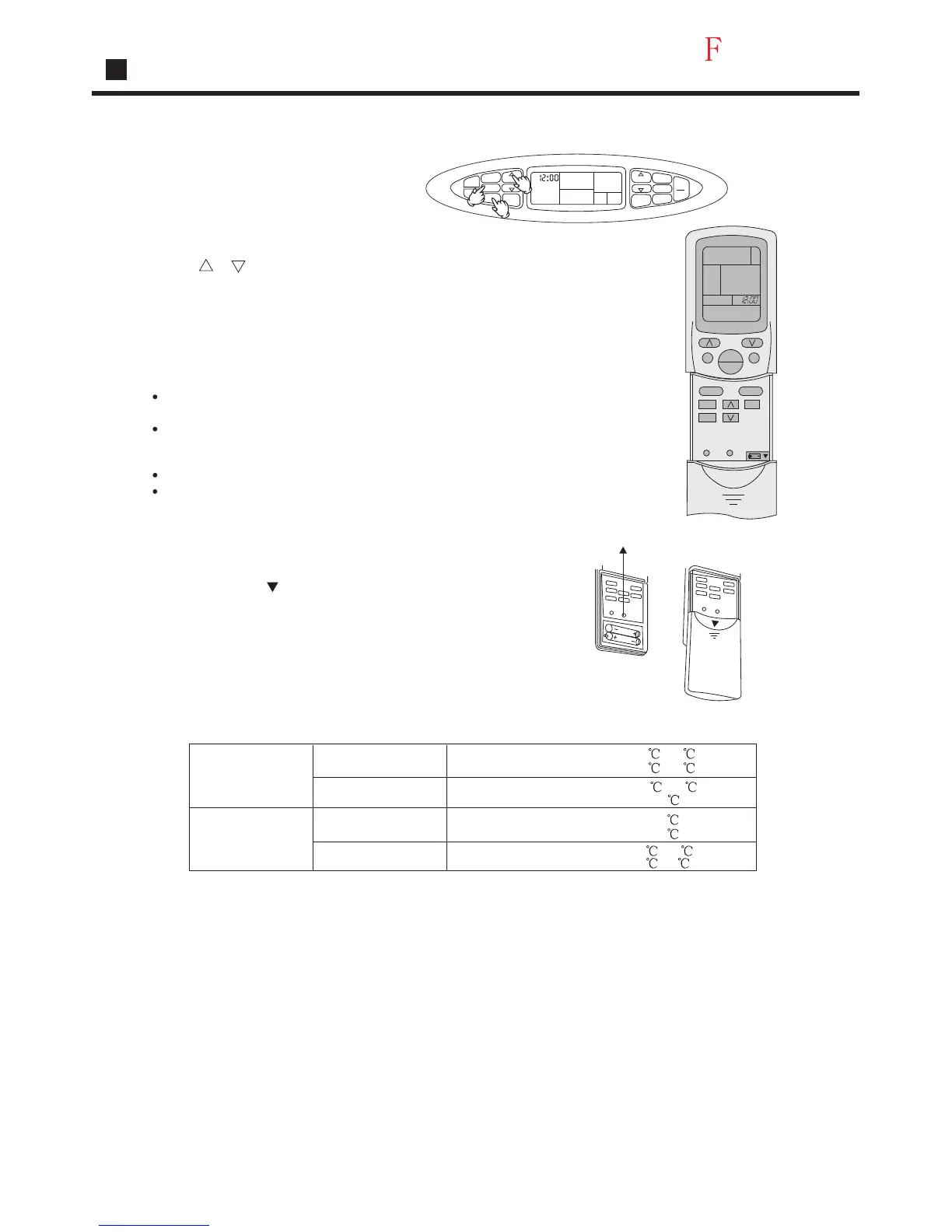

Haier AP242ACAAA - Operation

Clock set
Remote contronller's operation
Loading of the battery
THE MACHINE IS ADAPTIVE IN FOLLOWING SITUATION
When unit is started for the first time
and after replacing batteries in remote
controller, clock should be adjusted as follows:
Press CLOCK button,"AM"or "PM"flashes.
Press or to set correct time. Each press will increase
or decrease 1min. If the button is kept depressed, time will change quickly.
After time setting is confirmed, press SET,"AM"and"PM"
stop flashing, while clock starts working.
When in use, put the signal transmission head directly
to the receiver hole on the indoor unit.
The distance between the signal transmission head and
the receiver hole should be within 7m without any
obsacles as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over
type fluorescent lamp or wireless telephone is installed in the
room, the receiver is apt to be disturbed in receiving the signal
so the distance to the indoor unit should be shorter.
reset key
lock
Slinghtly press " "and push down the cover.
Load the batteries as illustrated.
2 R-03 dry batteries.(cylinder)
Be sure that the loading is in line with the "+"/"-"pole
request as illustrated.
Applicable ambient temperature range:
1.If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similar
qualified person.
2. If the fuse on PC board is broken please change it with the type of 50F.3.15A/250V.
3.The waster batteries should be disposed properly.
Note:Use two new same-typed batteries when loading.
If the remote controller can't function normally or doesn't work at all, use a sharp-pointed item to pres the
reset key.
Hint:Remove the batteries in case unit won't be in usage for a long period.
If there are any displays after taking-out just need to press reset key. The waste batteries should be
disposed properly.
Cooling
Maximum: D.B/W.B
Minimum: D.B/W.B
32 /23
18 /14
43 /26
18
24 /18
-7 /-8
27
15
Maximum: D.B/W.B
Minimum: D.B/W.B
Maximum: D.B
Minimum: D.B
Maximum: D.B/W.B
Minimum: D.B
Indoor
Outdoor
Indoor
Outdoor
Heating
In disorderation, reload the batteries or load the new batteries after 5 mins.
Put on the cover again
Confirmation indicator:
AM
TIMER
TIME
TEMP
TEMP
TIME
CLOCK
SET
SLEEP
SWING
FAN SPEED
MODE
ON
OFF
Operation
AM
TEMP
SWING
MODE
CLOCK
TIMER
SLEEP
SET
FAN
ON
OFF
RESETLOCK
