Selection of installation place
Place where it is easy to route drainage pipe and outdoor piping.
Place away from heat source and with less direct sunlight.
Place where cool and warm air could be delivered evenly to every corner of the room.
Place near power supply socket.Leave enough space around the unit (refer to installation
drawings).

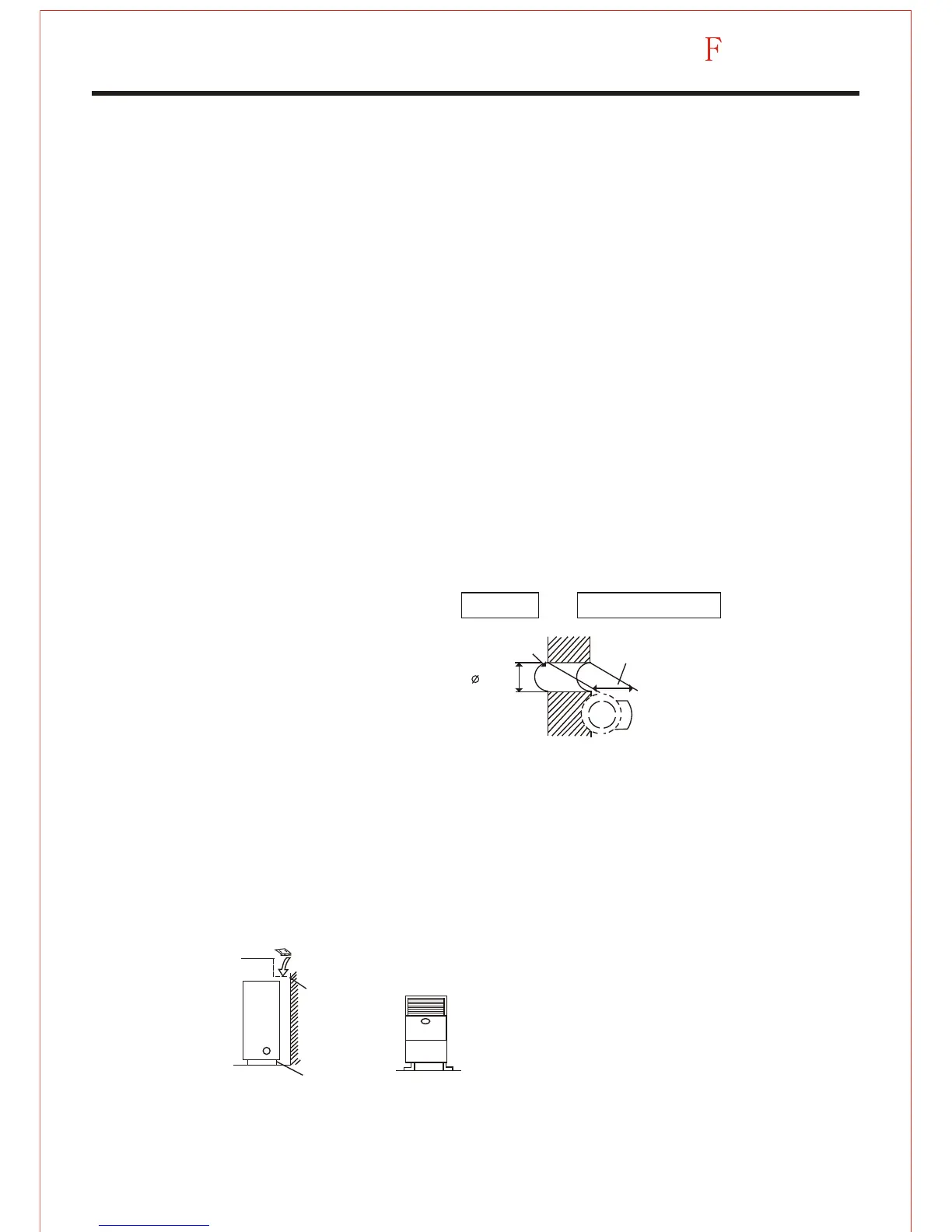

Fixing of the unit
1. Position of the wall hole
Wall hole should be decided according to installtion place and piping direction.(refer
to installation drawings)
2. Making a wall hole
Drill a hole of 70mm dia. with a little slope towards outside.
Install piping hole cover and seal it with putty after installation.
Installation of indoor unit
Fixing of indoor unit
To prevent it from fall off, please fix the unit with fall-prevention fitting at wall and
L-shaped metal at floor.
Self-tapping
screw
L-shaped metal
(accessory)
Please install the whole unit horizontally,
with a slop of 1 degree at front and rear,
left and right.
all-prevention fitting metal (accessory)
Wood screw
INDOOR
OUTDOOR UNIT
wall thinkness
wall hole
70mm
(Cross section of wall hole)
Installation procedures
To Next Page
