Haier AU05IFPERA - 6. Capacity Calculation

12

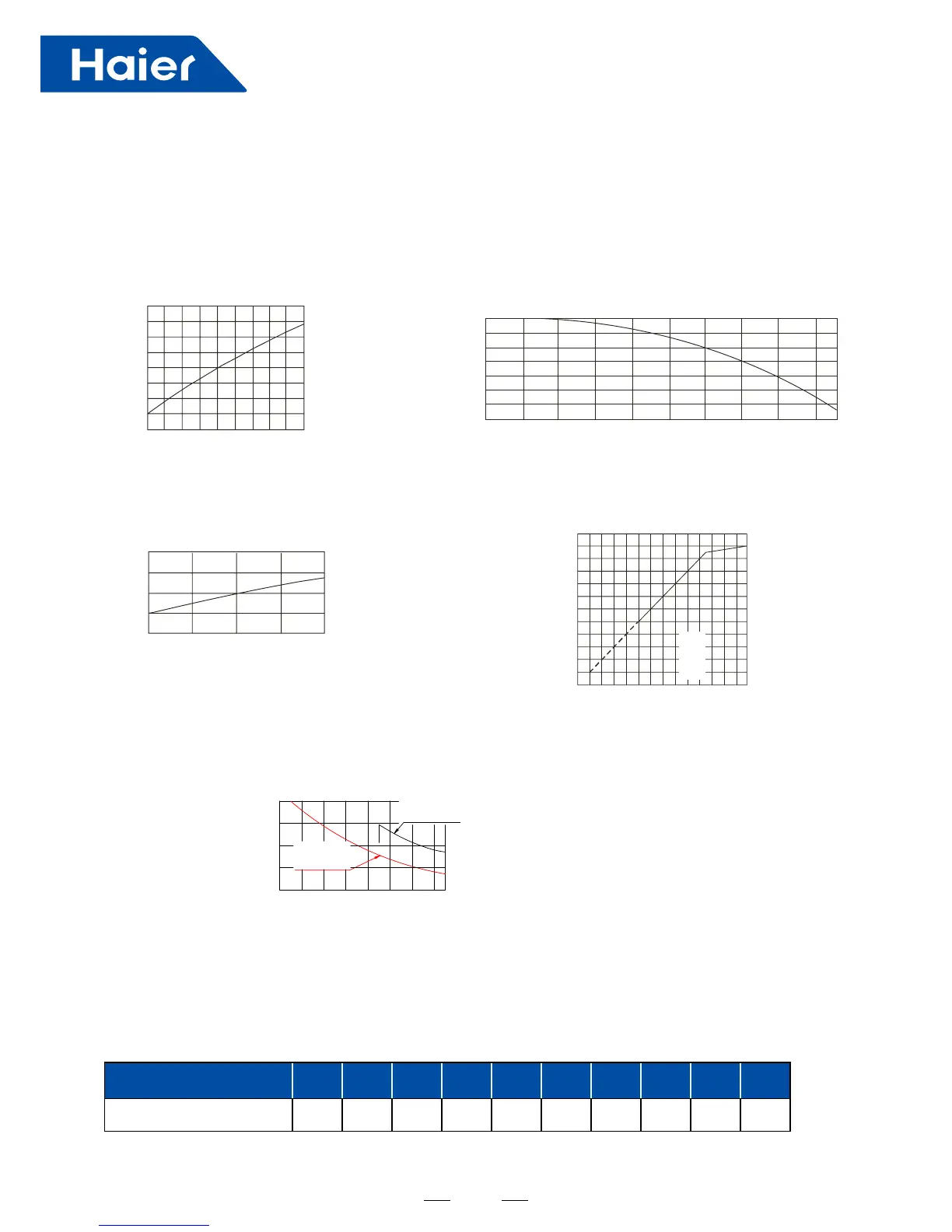

6. Capacity Calculation Due to Capacity Modication Coefcient
(1) Calculation method of refrigerating capacity----cooling capacity to be known=refrigerating
capacity*(A*B*C*D*E)W
E. Capacity compensation value of pipe length, pipe diameter and height drop
C. Capacity modication value under airow variation
rate of indoor unit group (only for duct unit)
A. Capacity compensation value of indoor
air wet-bulb temperature condition
B. Capacity compensation value of outdoor
air dry-bulb temperature condition
D. Capacity compensation suitable for
total capability of indoor unit group
1.2
1.1
1.0
0.9
0.8
15 20 24
Indoor air dry-bulb temperature (°C )
Capacity modication value
1.2
1.1
1.0
0.9
Outdoor air wet-bulb temperature (°C )
Capacity modication value
-5 200 255 3010 3515 40 43
1.1
1.0
0.9
80 90 100 110 120
Airow variation rate (%)
Capacity modication value
120
100
100 120 130
80
60
40
20
20
40 60 80
0
Total capacity of indoor unit group (%)
Standard capacity
Notes for E:
(1) The mian pipe (from outdoor to the rst branch pipe) diameter should be enlarged one size
when the single way pipe length is over 90m.
(2) When in cooling mode, outdoor is lower than indoor; or when in heating mode, outdoor is higher than indoor, the
compensation factor should be decreased the below value from gure E.
0.95
1.00
0.90
0.85
0.80
0 20 40 60 80 100 120 140
Capacity modification value
Single way pipe length (m)
Liquid pipe
： φ12.7
Gas pipe
： φ19.05
Liquid pipe：
φ9.52
Gas pipe：
φ
15.88
Vertical height drop between
indoor and outdoor
5m 10m 15m 20m 25m 30m 35m 40m 45m 50m
Adjustment factor 0.003 0.006 0.009 0.012 0.015 0.018 0.021 0.024 0.027 0.03
Notes for E:
(1) The main pipe (from outdoor to the rst branch pipe) diameter should be enlarged one size
when the single way pipe length is over 90m.
(2) When in cooling mode, outdoor is lower than indoor; or when in heating mode, outdoor is higher than indoor, the
compensation factor should be decreased the below value from gure E.
