Haier D Series User Manual

Performance and ceves diagrams

56
Domestic air conditioner

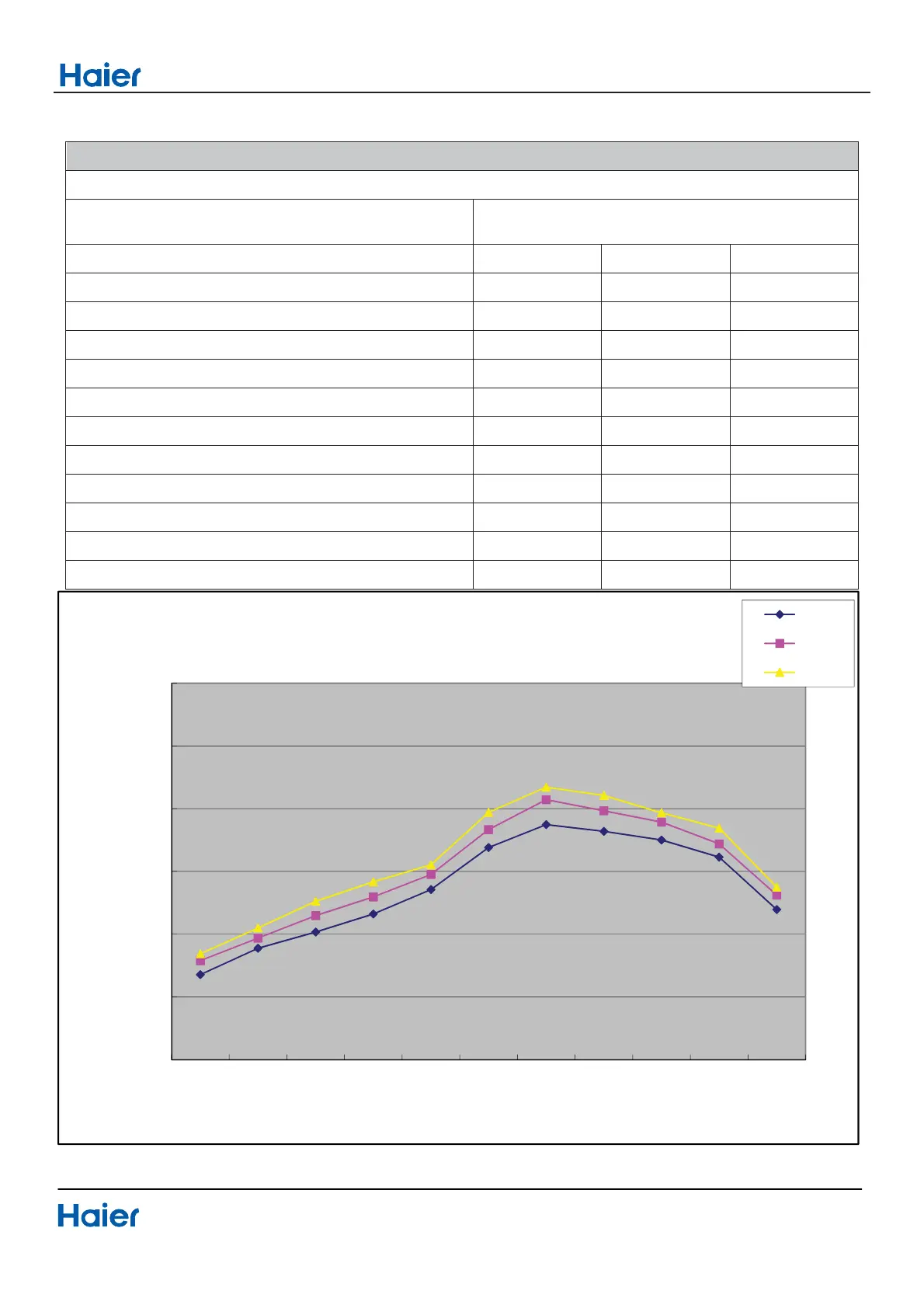

11.7 Heating discharge pressure curves˄09K˅
AS09DCAHRA 1U09JEDFRA performance curves
Heating discharge pressure.table
outdoor temp indoor temp.
DB/WB
15ć 20ć 25ć
-30ć
1710 1790 1859
-25ć
1880 1969 2047
-20ć
2035 2148 2210
-15ć
2186 2297 2388
-10ć
2351 2476 2594
-7/-8ć
2717 2834 2956
2/1ć
2916 3072 3193
7/6ć
2823 2983 3151
12/11ć
2733 2894 3007
18/16ć
2580 2720 2826
24/20ć
2163 2312 2370
1000
1500
2000
2500
3000
3500
4000
-30ć -25ć -20ć -15ć -10ć -7/-8ć 2/1ć 7/6ć 12/11ć18/16ć24/20ć
DISCHARGE PRESSURE
Outdoor Temp.
HEATING DISCHARGE PRESSURE
15ć
20ć
25ć
