Haier D Series User Manual

Performance and ceves diagrams

57
Domestic air conditioner

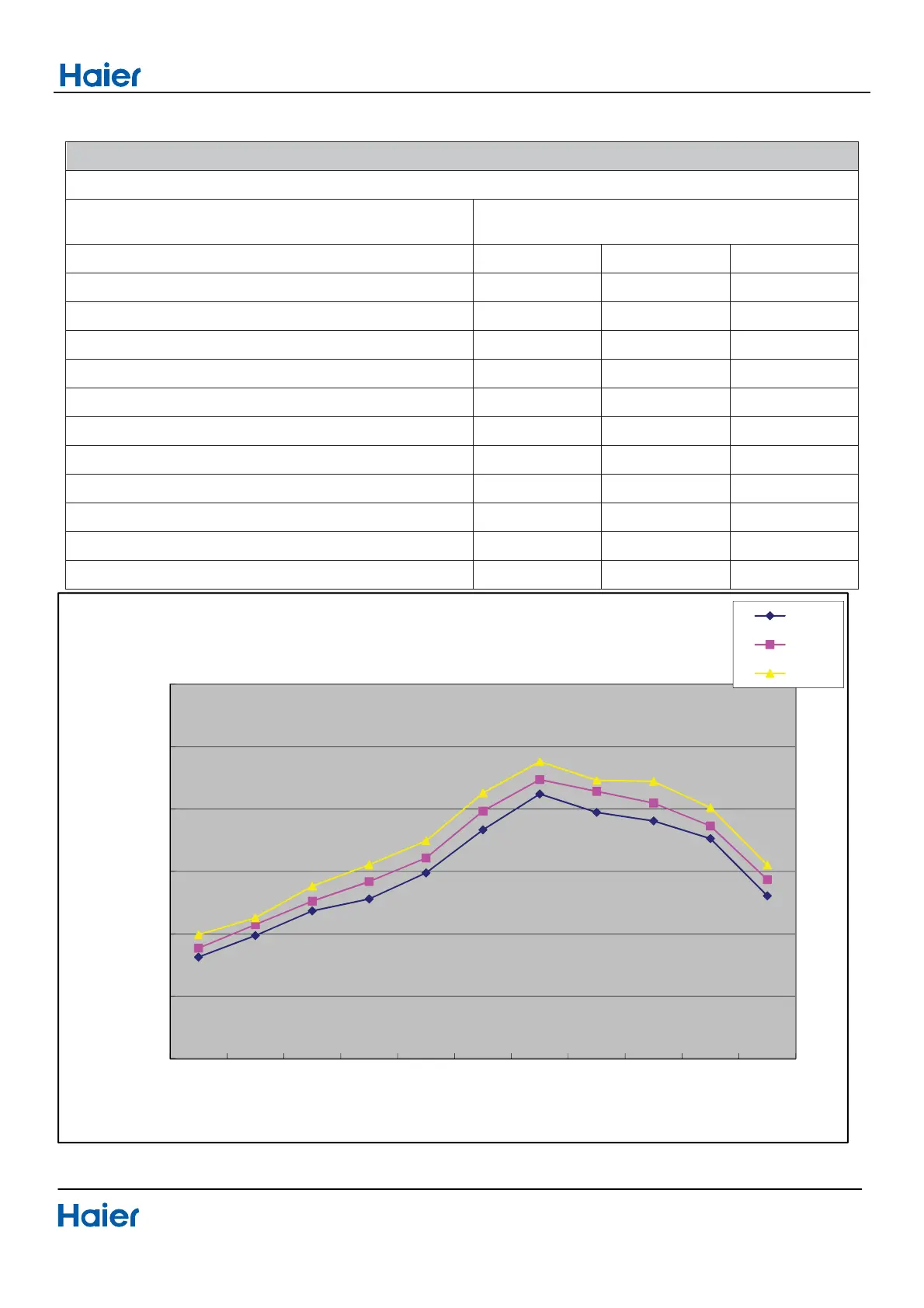

11.7 Heating discharge pressure curves˄12K˅
AS12DCAHRA 1U12JECFRA performance curves
Heating discharge pressure.table
outdoor temp indoor temp.
DB/WB
15ć 20ć 25ć
-30ć
1813 1885 1992
-25ć
1985 2073 2128
-20ć
2183 2262 2382
-15ć
2279 2419 2552
-10ć
2488 2607 2745
-7/-8ć
2832 2984 3129
2/1ć
3120 3235 3380
7/6ć
2972 3141 3231
12/11ć
2904 3047 3221
18/16ć
2763 2864 3011
24/20ć
2304 2434 2552
1000
1500
2000
2500
3000
3500
4000
-30ć -25ć -20ć -15ć -10ć -7/-8ć 2/1ć 7/6ć 12/11ć18/16ć24/20ć
DISCHARGE PRESSURE
Outdoor Temp.
HEATING DISCHARGE PRESSURE
15ć
20ć
25ć
