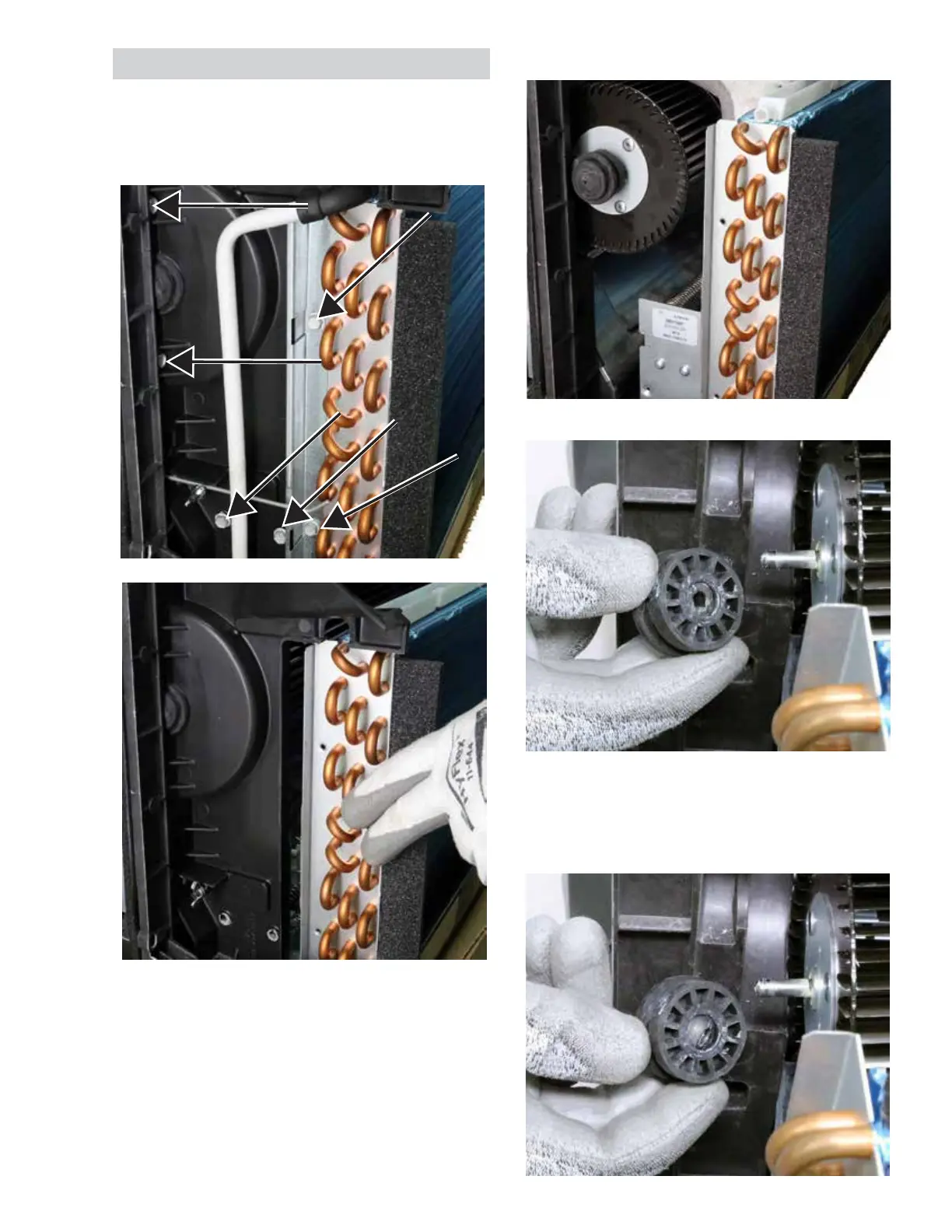

Proper Bearing Placement
NOTE: When reinstalling the bearing, ensure
the shaft goes directly into the bearing assembly.
The image above shows proper placement of the
bearing. Failure to install properly will result in a
noise complaint.
Remove six screws to remove the end cap to
access the bearing assembly. Two screws are
used to secure the bracket attached to the indoor
coil and end cap.
Indoor Fan Bearing
Components: Indoor Fan Bearing
