Haier H2F-220WSAA User Manual

8
English
FUNCTIONS

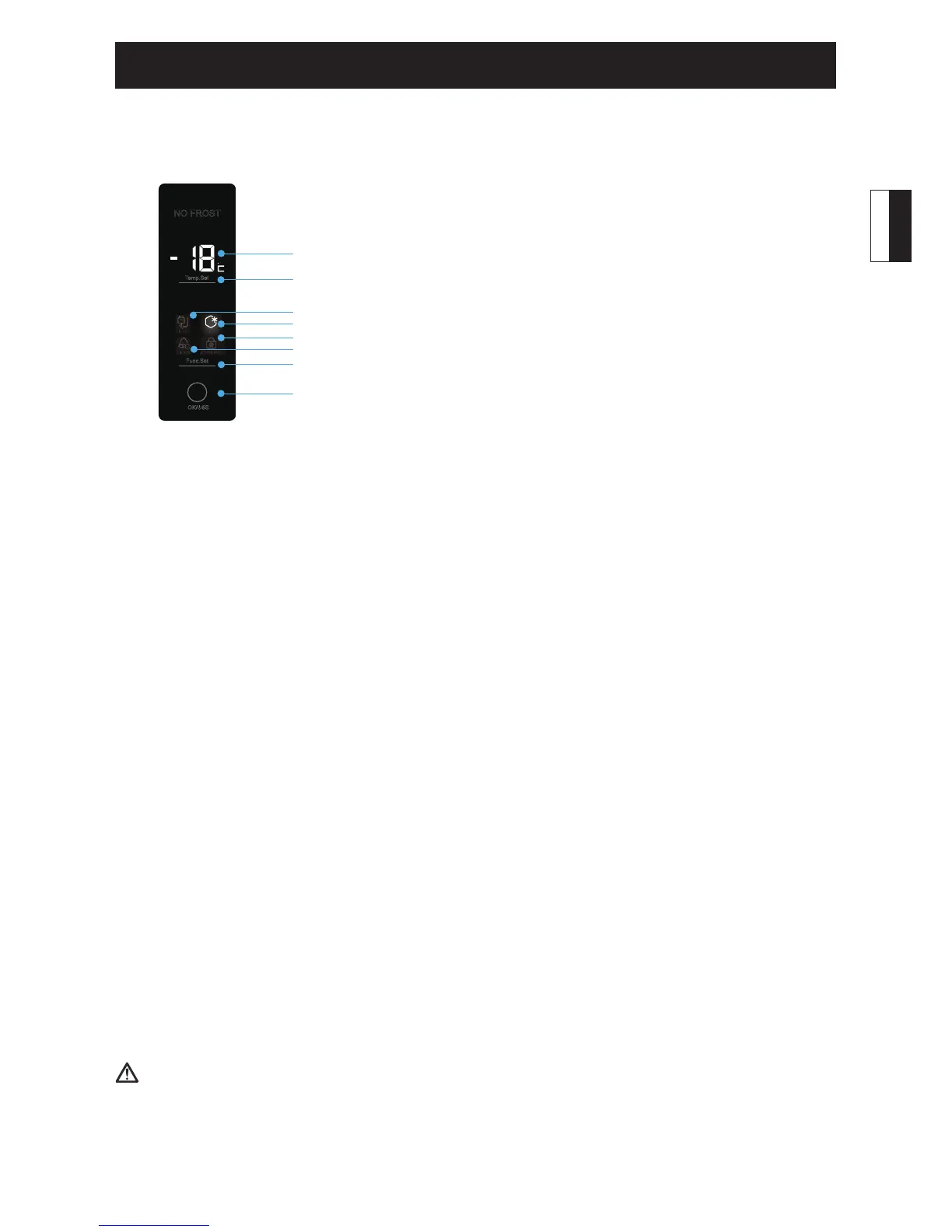

Controls panel
Temp.Set
Func.Set
Eco
S.Frz.
Alarm
NO FROST
OK/ 5S
Child lo ck
E
c
o
Ala
r
m
Chil
d
l
o
c
k
S.
F
r
z
.
o
r
m
Chil
d
l
k
C
A2
E
D
G
F
A3
A4
Start-up
Insert the plug in the socket to switch on the freezer.
Display will show you code dF and it means that the freezer is in defrosting condition. After defrosting ,
display will show you code HH.
The alarm led F and acoustic signal will indicate that the temperature inside freezer is not suciently cold
for storage of foodstuffs. Pressing the button A3 to choose the “Alarm” function then press the button A4,
you can disable acoustic signal, but warning light will be on till freezer will reach the temperature of -12°C.
When display show the temperature of -12°C, alarm condition will stop automatically and freezer will be
ready for food storage.
Check the Controls Panel:
Touch any button on the display screen and check whether the temperature area and the selected icon can
be lightened.
Set temperature:
To set temperature, push the button A2. During temperature setting two numbers on display show the
point set in flashing mode. Additional pressing on this button modify the set-point in cycling and decreasing
mode from –14°C to –26°C.
If no action is done on the OK button within 5 sec, the set point will be stored automatically.
After the temperature is set, the two numbers on display come back to the freezer temperature visualization.
Manufacturer setting of temperature is -18°C.
Power function:
Press the button A4 for 5 sec to turn off the power of the freezer; do it again the power will be turned on.
Before any cleaning operation, make sure to disconnect the appliance from the power supply by pulling
out the plug, it isn’t enough to turn off the appliance pushing power button.
C Freezing temperature display icon
A2 Temperature setting button
D Eco function icon
E Fast freezing icon
G Child lock icon
F Alarm indicator icon
A3 Function selection button
(eco/ fast freezing/ alarm/child lock)
A4 OK button / Power button

Haier H2F-220WSAA Specifications

General

Door hinge	Right
Control type	Touch
Display type	LED
Product type	Upright freezer
Product color	White
Built-in display	Yes
Shelves material	Plastic
Appliance placement	Freestanding
Freezer number of shelves/baskets	2
Icemaker	No
Noise level	40 dB
Star rating	4*
Climate class	SN-T
Freezing capacity	18 kg/24h
Freezer net capacity	226 L
Freezer gross capacity	237 L
Operating temperature (T-T)	10 - 43 °C
Storage time during power failure	7 h
Current	1.5 A
Connected load	150 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Annual energy consumption	230 kWh
Warranty period	2 year(s)
Control position	External
Package depth	739 mm
Package width	647 mm
Package height	1734 mm
Package weight	77300 g

Weight and Dimensions

Depth	660 mm
Width	595 mm
Height	1671 mm
Weight	69000 g
