6
CAM

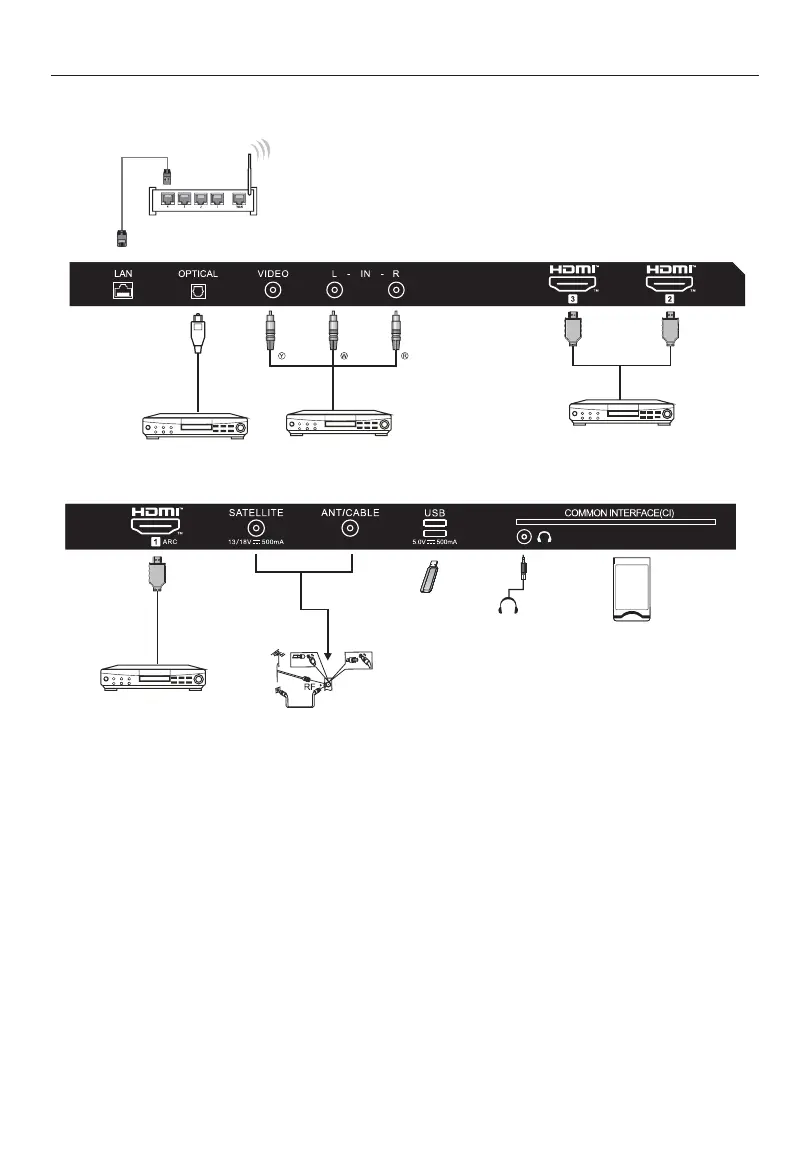

TERMINAL CONNECTION
You can use the input terminals on TV set rear as follows.
1. RF: Antenna/close circuit TV
2. EARPHONE: Earphone output.
3. USB: Connect USB device.
4. HDMI: Connect to High-definition multimedia signal resource.
5. AV INPUT: Video input/Audio input.
W (Audio L)
R (Audio R)
Y (Video)
Amplifier
CVBS, DVD Player or other
machine with CVBS/S-Video
Audio/Video machine
with HDMI interfaces
Audio/Video machine
with HDMI interfaces
CI card
