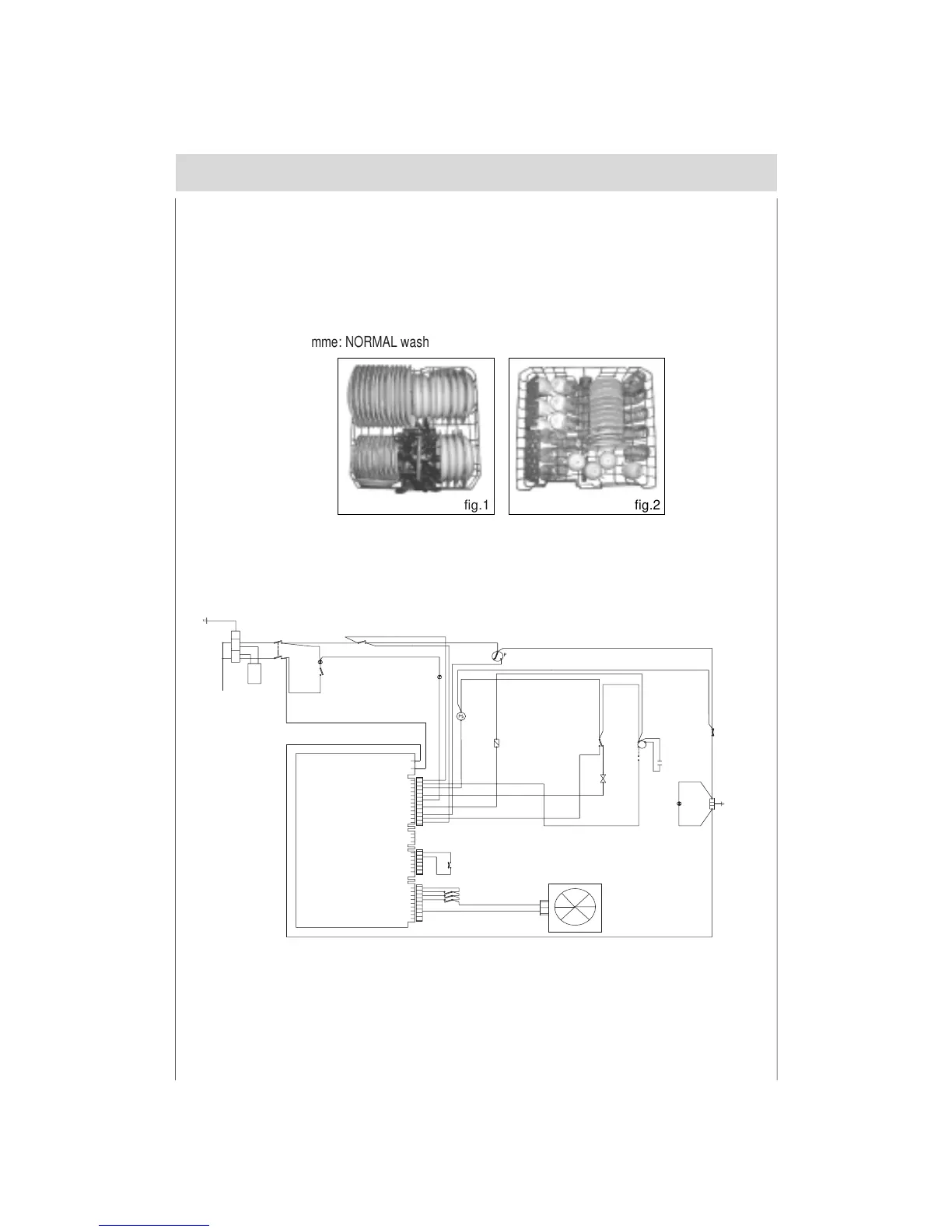

Haier HDW101SS User Manual

19
Information on comparability tests implemented in compliance with
AS/NZS 2007
Appliance loaded in accordance with standard specifications.
Example of loaded dishwasher: See fig. 1 and 2.
Capacity: 12 place settings
Comparability programme: NORMAL wash
Rinse-aid setting: 5
Detergent: 25+5g
fig.1 fig.2
Height-adjustable top-basket must be inserted in the uppermost position.
If the comparability tests do not comply fully with AS/NZS 2007, e.g., degree of soiling, type of dishes
and cutlery, etc., contact the appliance manufacturer before starting the test.
Diagram
A.Wiring box
B.Power switch
C.Power indicator
D.Door switch
E.Water lever switch
F.Drain pump
G.Dispenser
H.Overflow switch
I. Inlet valve
J.Washing pump
L.Heater
M.Temperature limiter
O.Heater indicator
R.Rinsing agent missing indicator
S.Rinsing agent missing switch
T.Temperature sensor
K1.Eco wash switch
K2.Dry switch
k3.3in1 wash switch
K5.Program switch
K5
Filter
S1
S3
S5
1 2
S4
S7
S6
Reset
S2
M
O
I
S
R
C
G
J
H
F
E
D
B
A
L
ML
M
C
C
S
1
3
1
2
IAQS
1
3
2
D-ED
IS
CnP1
3(1)
IG
2(1)
4(2)
L
N
220-240V AC 50 Hz
1(2)
PCB
5
1
3
2
4
9
7
6
8
11
10
12
4
3
1
6
2
5
5
2
6
9
7
8
1
3
4
T
CnP2
K3
K1
K2
CnP3

Haier HDW101SS Specifications

General

Type	Freestanding
Capacity	10 place settings
Energy Efficiency	A+
Wash Cycles	6
Noise Level	49 dB
Color	Stainless Steel
Control Type	Electronic
Energy Rating	A+
Child Lock	Yes
Dimensions	845 x 598 x 600 mm
Programs	Intensive, Normal, Eco, Glass
Delay Start	Yes
