Antenna Connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an
outdoor antenna . location and antenna positioning
■ To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
■ If the antenna needs to be split for two TV`s, install a “2-
Way Signal Splitter” in the connections.
■ If the antenna is not installed properly, contact your dealer
for assistance.

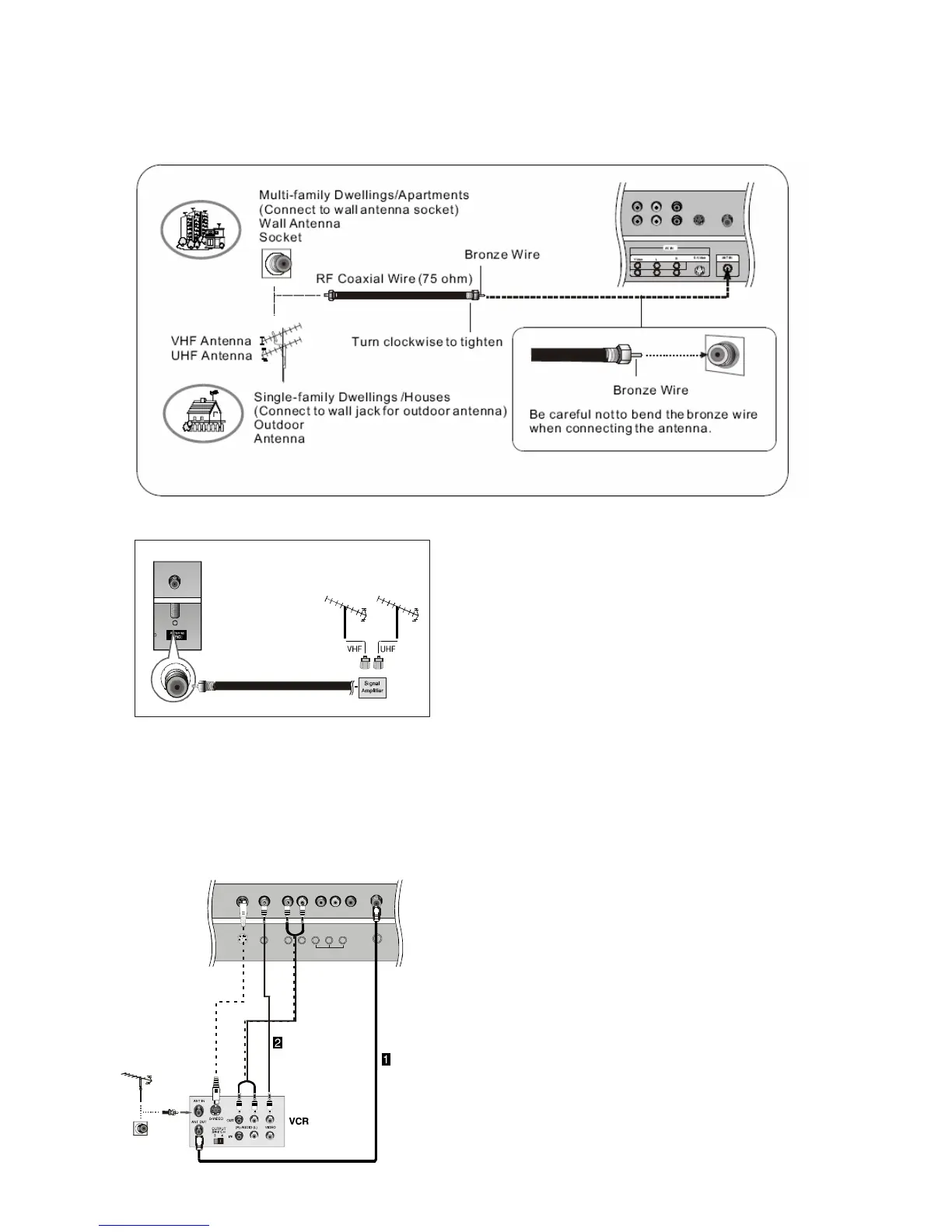

Choose Your Connection
There are several ways to connect your television, depending on the components you want to connect
and the quality of the signal you want to achieve. The following are examples of some different ways
to connect your TV with different input sources. Choose the connection which is best for you.
VCR connection
To avoid picture noise (interference), leave an adequate distance
between the VCR and TV
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
S-Vide o
CVBS
S-Video/CVBS
Audio In
LR
RL V
AV O UT
R INPUT
F
