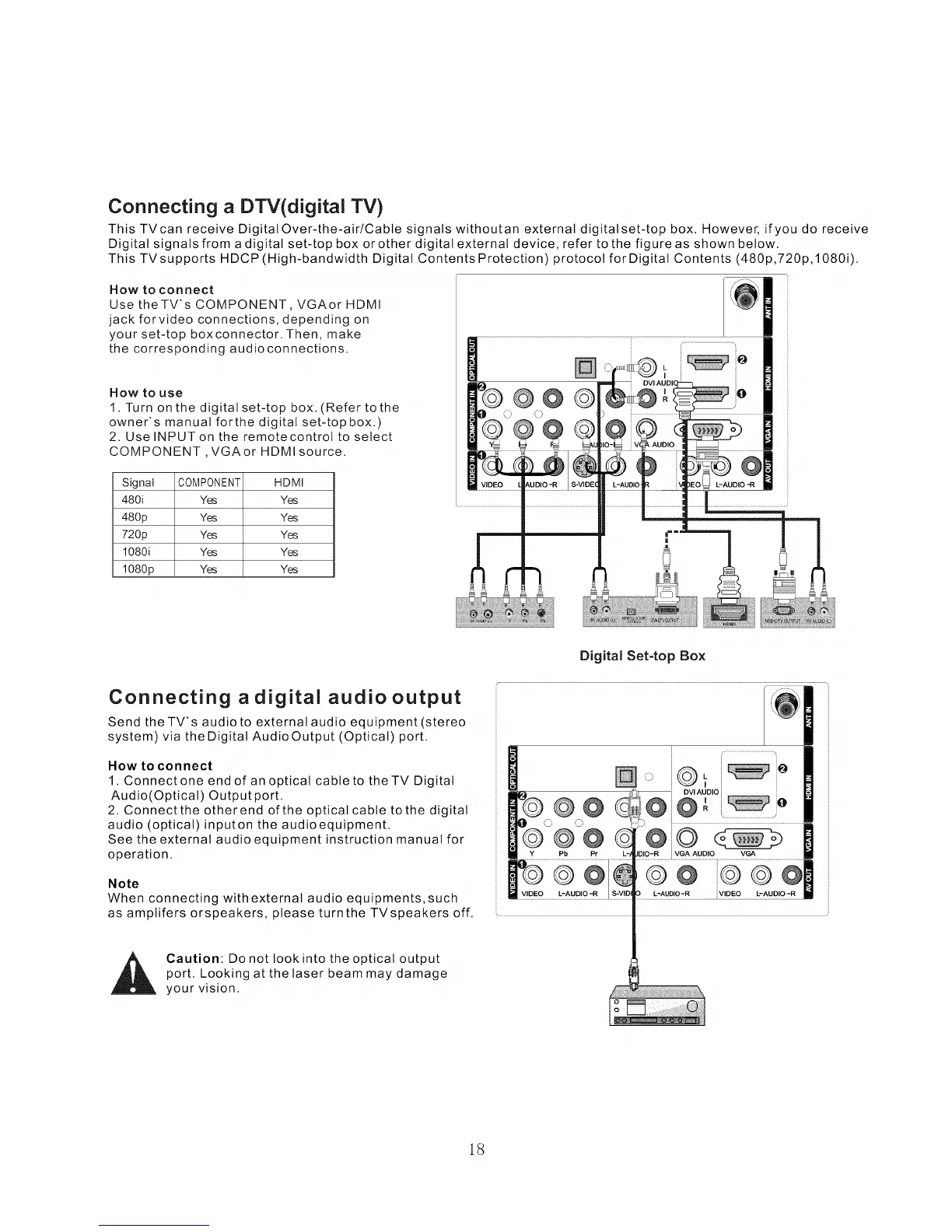

Connecting a DTV(digitai TV)
This TV can receive Digital Over-the-air/Cable signals withoutan external digital set-top box. However, if you do receive
Digital signals from adigital set-top box or other digital external device, refer to the figure as shown below.
This TVsupports HDCP (High-bandwidth Digital Contents Protection) protocol forDigital Contents 480p,720p,1080i).
How to connect
Use theTV's COMPONENT, VGAor HDMI
jack forvideo connections, depending on
your set-top boxconnector. Then, make
the corresponding audioconnections.
How to use
1. Turn on the digital set-top box. (Refer to the
owner's manual forthe digital set-topbox.)
2. Use INPUT on the remote control to select
COMPONENT ,VGAor HDMI source.
Signal COMPONENT HDMi
480i Yes Yes
480p Yes Yes
720p Yes Yes
1080i Yes Yes
1080p Yes Yes
@@@
0
Digital Set=top Box
Connecting a digital audio output
Send theTV's audio to external audio equipment (stereo
system) via the Digital Audio Output (Optical) port.
How to connect
1. Connect one end of an optical cable to theTV Digital
Audio(Optical) Output port.
2. Connect the otherend of the optical cable tothe digital
audio (optical) inputon the audioequipment.
See the external audio equipment instruction manual for
operation.
Note
When connecting with external audio equipments,such
as amptifers orspeakers, please turnthe TVspeakers off.
Caution: Do not look into the optical output
port. Looking at the laser beam may damage
your vision.
@@
© ©
@@
Y Pb Pr
©@
VIDEO L-AUDIO °R
©
i VGA AUDIO VGA
@@ @@@
L-AUDIO -R VIDEO L-AUDIO _R
18
