Haier hlp140e Service Manual

13
Tumble Exhaust Type Clothes Dryer
Model:HLP140E
Cleaning the Lint Filter
Unplug the power cord prior to any cleaning.
The lint filter must be cleaned before and after
each use. Never use the dryer without the filter
in place.

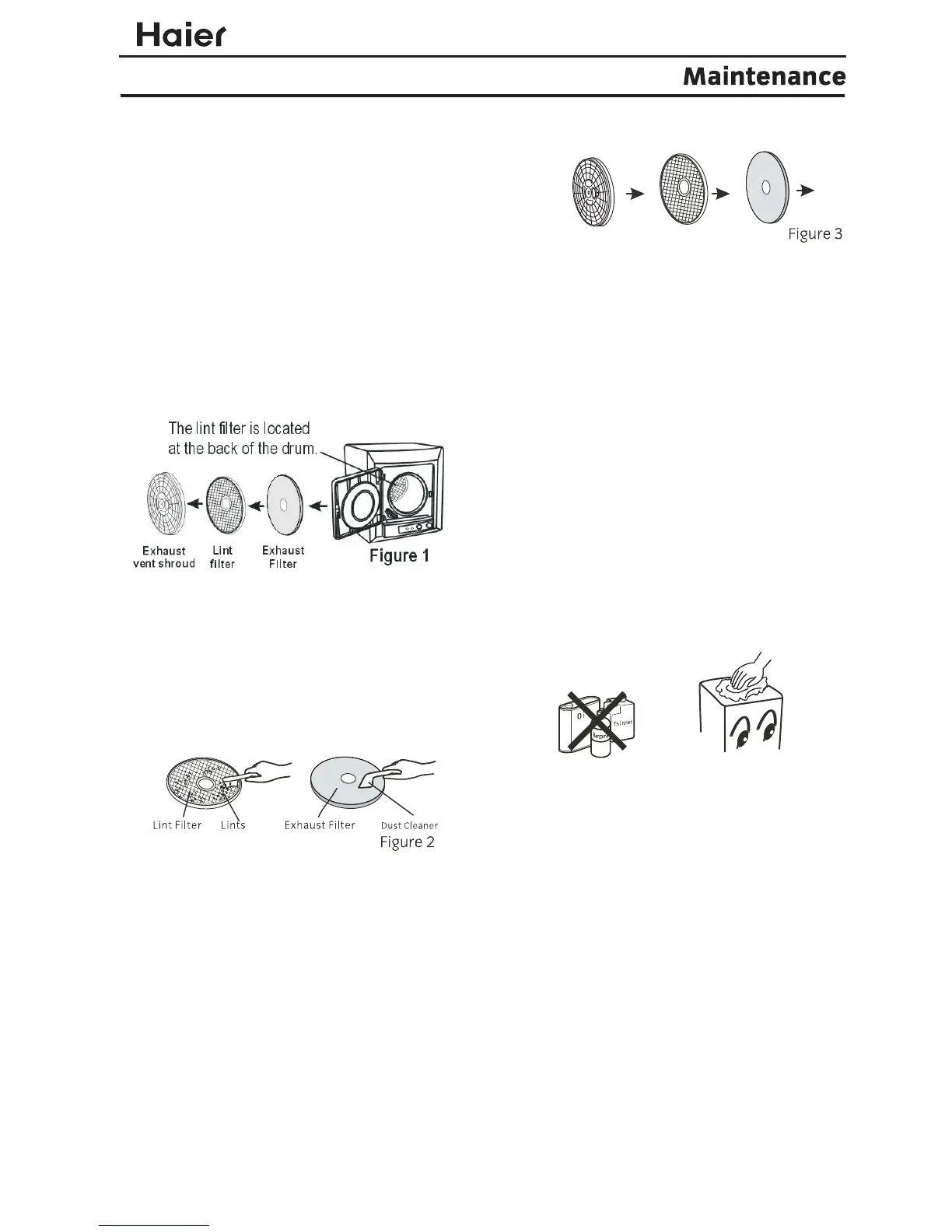

1.Removing the Filters
Insert fingers into the four holes around the
exhaust vent shroud and pull out to remove. The
filter is in 3 parts: Exhaust vent shroud, lint filter
and exhaust filter (as shown in figure 1).
2.Cleaning the filter
Separate the filters from the shroud and
remove the lint with a soft brush or vacuum
cleaner. Then wash it with water if dirty still.
And dry it in the air absolutely before use.
Take care not to damage the filters. (See fig 2).
3. Re-installing the Filter
Reinstall in the reverse order, align the recess
in the centre of the filters with the spigot in the
centre of the drum and ensure that it is fitted
firmly. (as shown in figure 3).
Note: The filter fixed in the bottom of the
drum should also be cleaned with a soft
brush.
Do not use excessive water, just a damp cloth.
Do not use solvents.
Do not use spray cleaners when cleaning the
interior.
If the drum becomes stained, clean it with a
damp cloth and allow to dry before using.
Clean the cabinet with mild soap and water.
Do not use harsh or abrasive cleaners.
Cleaning the Interior & Exterior of
The Dryer
Do not let any kind of liquid get into the air
intake or on the control panel.

Haier hlp140e Specifications

General

AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption	- kWh
Energy efficiency class	-
Annual energy consumption	400 kWh
Door hinge	Left
Drum volume	73.62 L
Control type	Touch
Loading type	Front-load
Product color	White
Built-in display	No
Appliance placement	Freestanding
Cycle time	150 min
Drum capacity	2.6 kg
Number of cycles	4
Package depth	482.6 mm
Package width	722.2 mm
Package height	780 mm
Package weight	28123 g
LED program stage indicator	Yes

Weight and Dimensions

Depth	425 mm
Width	630 mm
Height	685 mm
Weight	24766 g
