Haier hlp140e Service Manual

Cycle
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cool Down
Cycle End
Clean Lint
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y

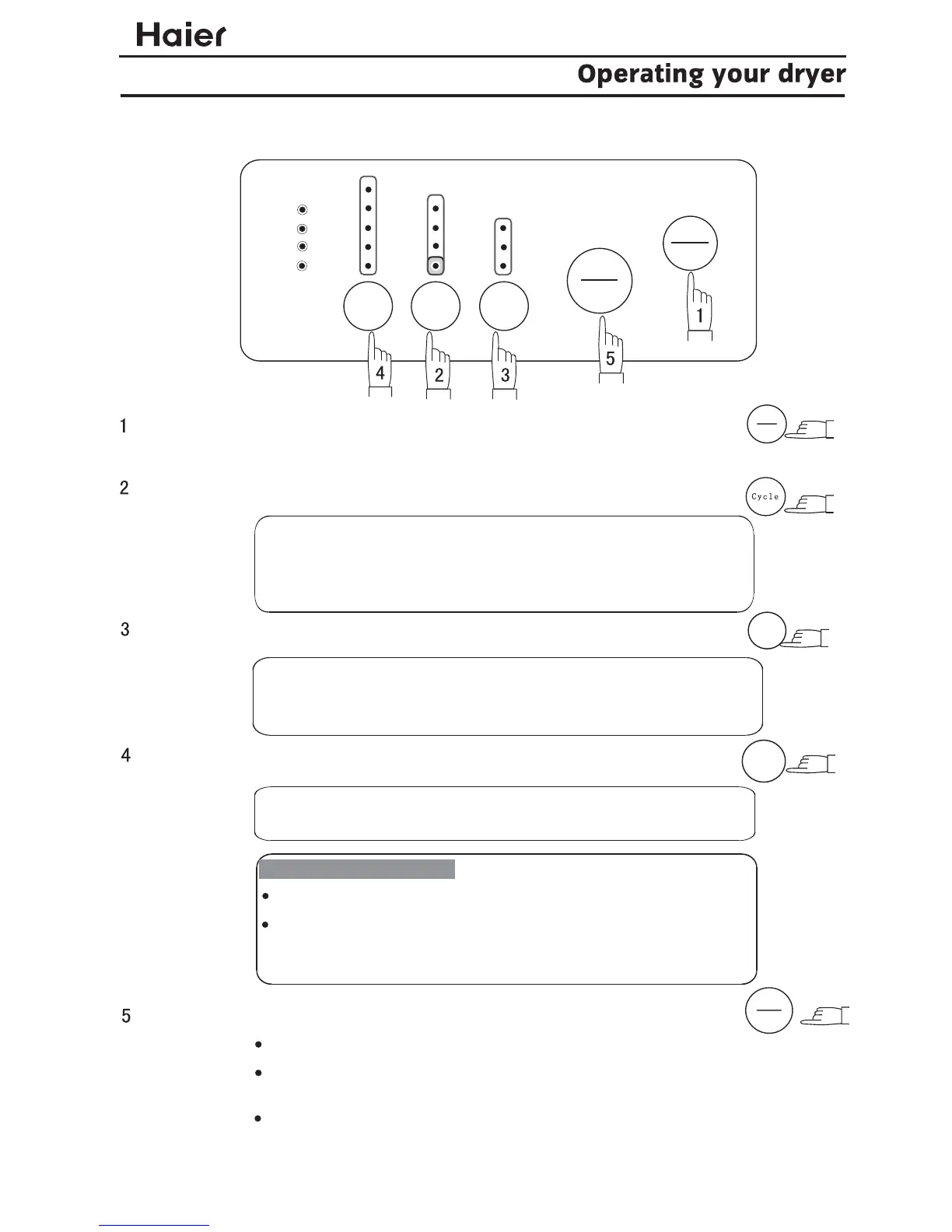

Operation button using procedure and instruction for each step
b
Press in the 'PowerOn/Off' button to run the machine.
Press in the 'Cycle' button to choose appropriate mode.
The clothes dryer is originally set as 'Normal ' when the power is on . You may want to
choose other cycles; please press in the 'Cycle' button .
If a 'AUTO DRY' cycle is chosen, please directly move to step 5.
If a 'Timed Dry ' cycle is chosen, please follow up step 3,4,5.
Press in the 'Temp' button to choose the appropriate temperature.
The clothes dryer is originally set as 'High' for 'Normal' and 'Heavy ' mode of
cycle, and 'Low' for 'Delicate' The temperature change is forbidden. If you choose 'Timed dry'
mode of cycle, you can choose other temperature mode freely.
Power
On/Off
Power
On/Off
Temp
Tumble Exhaust Type Clothes Dryer
Model:HLP140E
Press in the 'Start/ Pause' button
Make sure the front door is properly closed before you press in the
'Start/Pause' button, otherwise, the clothes dryer won't start and give an alarm.
The machine will stop to work if the front door is opened in middle of operation
(including heater and engine). It will continue to work after pressing the
'Start/Pause' button
when the front door is closed again.
There is power to heating screen after 30 seconds' spinning of the engine.
Attention
Please choose the drying time and Temperature according to the quality and quantity of the
garments.
Press in the 'Dry Time' button to set appropriate drying time.
Heating apparatus won't heat in'Air dry' mode, and is proper for down, sweater,
mohair, cotton sweater, cotton-padded clothes. You may choose this mode to make garments
fluffier after dried. The machine can also achieve same results for garments left unused for
long in the wardrobe.
For 'High' and 'Low' mode, you can choose drying time freely.
For 'Air Dry' mode, only 30 or 60 are available.
Start
Pause
Start
Pause
Dry
Time
Dry
Time
8

Haier hlp140e Specifications

General

AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption	- kWh
Energy efficiency class	-
Annual energy consumption	400 kWh
Door hinge	Left
Drum volume	73.62 L
Control type	Touch
Loading type	Front-load
Product color	White
Built-in display	No
Appliance placement	Freestanding
Cycle time	150 min
Drum capacity	2.6 kg
Number of cycles	4
Package depth	482.6 mm
Package width	722.2 mm
Package height	780 mm
Package weight	28123 g
LED program stage indicator	Yes

Weight and Dimensions

Depth	425 mm
Width	630 mm
Height	685 mm
Weight	24766 g
