Haier hlp140e Service Manual

7
Tumble Exhaust Type Clothes Dryer
Model:HLP140E
Cycle
Dry
Time
Dry
Cool Down
Cycle End
Clean Lint
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
150
Status
A
U
T
O
D
R
Y

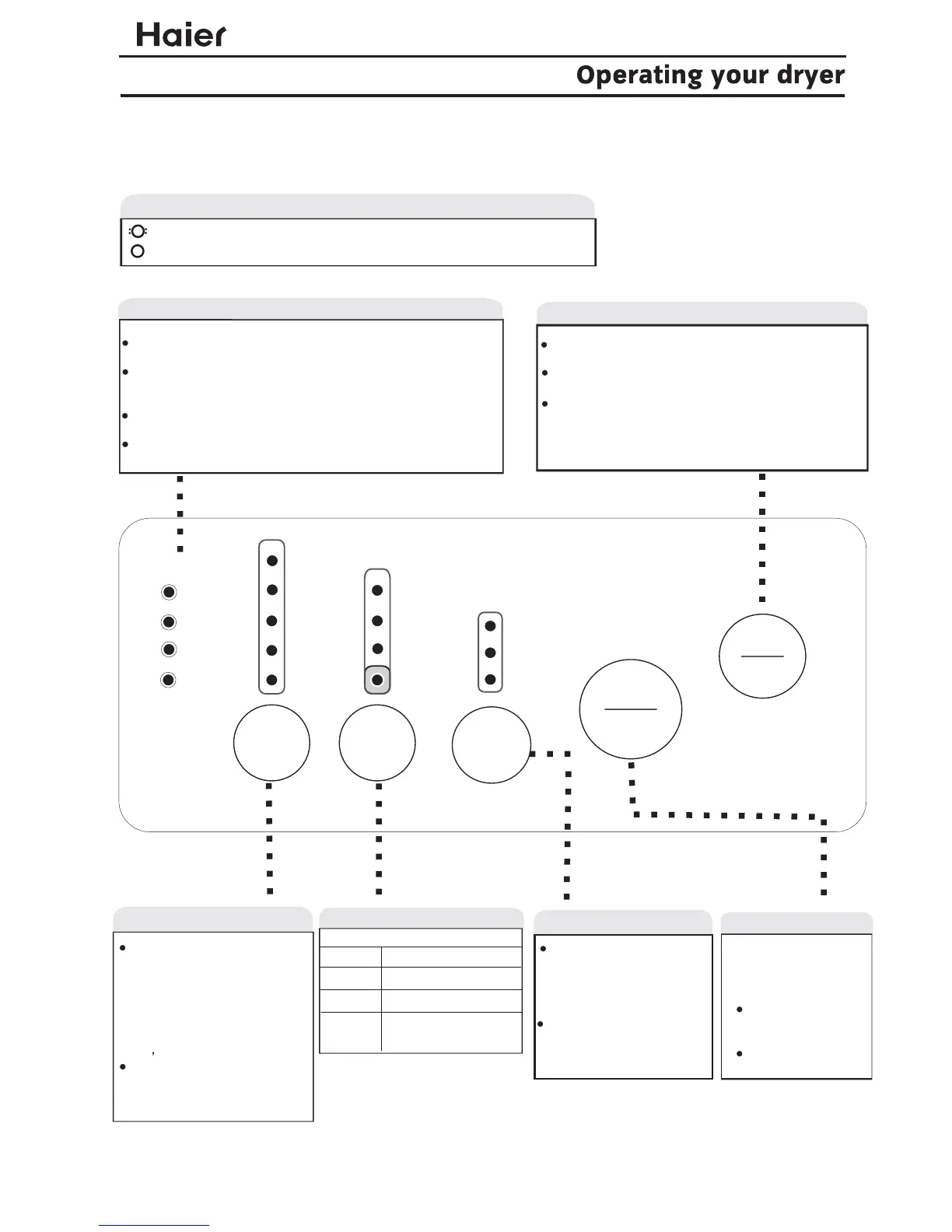

Instruction for the operation button
a
3. Drying Procedure Setting
Status and implication of the indicator light
Flash- indicates the program that is functioning
'Dry Time' button
Indicator lights of the status
On- indicates the program that is going to function or the state that has been chosen
After the power is on, you can
press in the 'DryTime' to
choose the drying time directly.
When choose 'Timed Dry', you
can press in the 'DryTime'
button to choose drying time
in a range of 30, 60,90,120,
150 too.
If the 'Temp' function is set as
'Air-Dry', subsequently the
'Dry Time' will adapt to 30 or
60 minutes.
The implication of the indicator lights.
Dry
The dryer is working.
Cool Down
The cycle will be completed soon, and the heater stops heating.
The temperature decreases.
Cycle End
The cycle is completed.
Clean Lint
Remind you clean the lint in time each time you dry your clothes.
Normal Normal drying
Heavy Huge and heavy garments
Delicate Low level heat resistance
'Cycle' button
Timed Dry You can set the drying time
as required
Possible cycle
'PowerOn/Off ' button
'Start/Pause' button
Press in the'PowerOn/Off' button to connect the
power connector.
Press in the
'PowerOn/Off' button to cut off the
power connector after there is power to the machine.
Press in the
'PowerOn/Off' button to connect the
power connector, then press in the
'Start/Pause' button,
if not, the machine will cut off the power connector
by itself.
High
Low
Air-Dry
Temp
Press in the'Start/Pause'
button when there is power
to the machine to run the
dryer.
Pause when press in
in the middle of
running.
Start again when in
status of pause.
Start
Pause
Power
On/Off
'Temp' button
When you choose'Timed dry',
p
ress in the 'Temp' button to
choose temperature in a range
of High, Low and Air Dry
(without heating).
'Normal' and 'Heavy' of 'Cycle'
is originally set as 'High'.
'Delicate' is originally set as
'Low'.

Haier hlp140e Specifications

General

AC input voltage	120 V
AC input frequency	60 Hz
Energy consumption	- kWh
Energy efficiency class	-
Annual energy consumption	400 kWh
Door hinge	Left
Drum volume	73.62 L
Control type	Touch
Loading type	Front-load
Product color	White
Built-in display	No
Appliance placement	Freestanding
Cycle time	150 min
Drum capacity	2.6 kg
Number of cycles	4
Package depth	482.6 mm
Package width	722.2 mm
Package height	780 mm
Package weight	28123 g
LED program stage indicator	Yes

Weight and Dimensions

Depth	425 mm
Width	630 mm
Height	685 mm
Weight	24766 g
