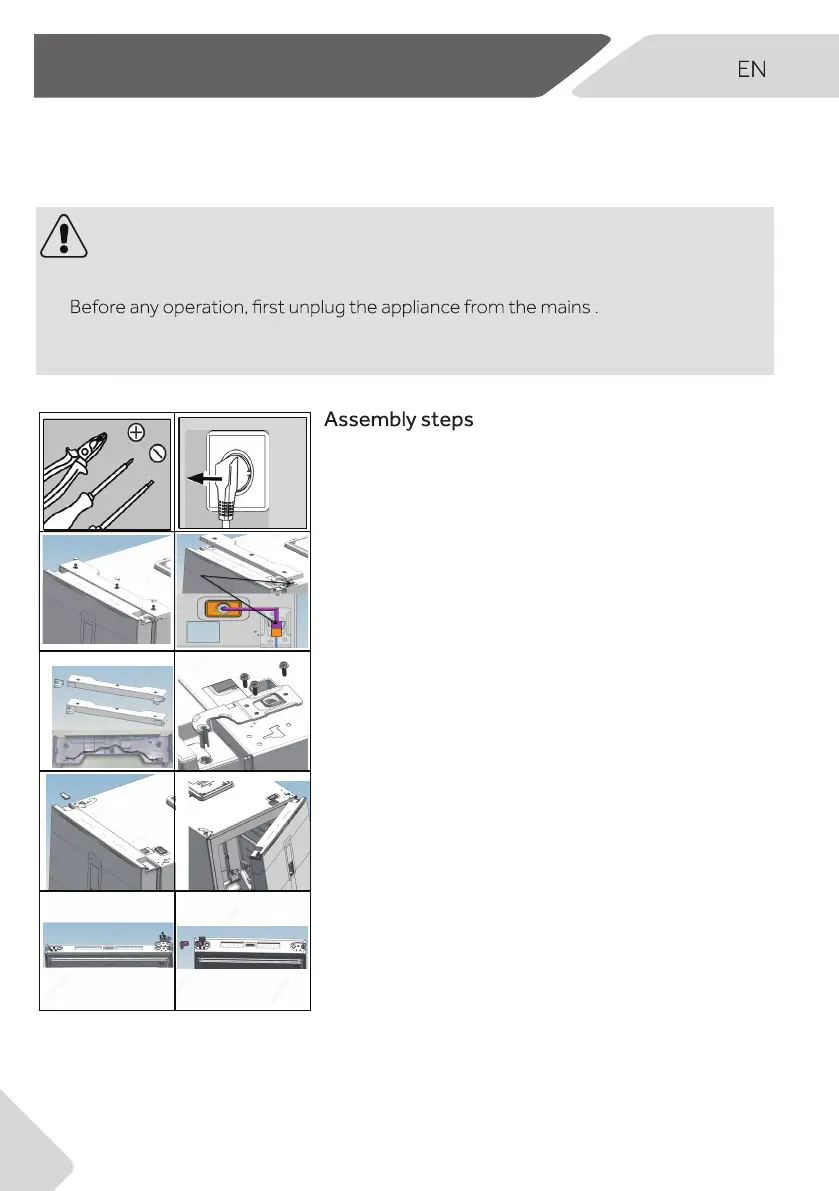

10 - Installation
10.9
1
2
3 4
5 6
7 8
9
10
1. Provide necessary tool.
2. Unplug the appliance.
3. Remove the screw hole cover, bolts, and hinge cover.
4. Unplug the connection cable.
5. Take Upper left hinge cover and Door extension
cord out of the gift bag,As shown in the figure, repl-
ace the hinge cover and install the extension cord
into the wiring slot of the hinge cover.
6.
Removes screws and hinge.
7. Remove cover on door. Remove axle cover on
door.
8. Open and remove the door.
9.
10. Take Lifting shaft sleeve out of the gift bag.
Fix the lifting stop, Door stop, and 3 screws on the
left side of the door.
(Fig. 10.9):
Turn the door upside down, remove 3 screws on
the bottom of the door. Remove 3 screws, door
stopper and Lifting shaft sleeve on the bottom of
the door.
24
10.9 Door Reversibility
Before connecting the appliance to the power supply you should check, whether the door
swing must changed from right (as delivered) to left, if this is required by the installation
location and the usability.
WARNING!
▶ The appliance is heavy. You need two persons to carry out the door reversibility.
▶
▶ Do not tilt the appliance more than 45 ° to prevent damage of the cooling system.
Please consult with Haier Customer Service for relative paid parts and service.
▶
