10 - Installation
11 12
13
14
15
16
17
18
19 20

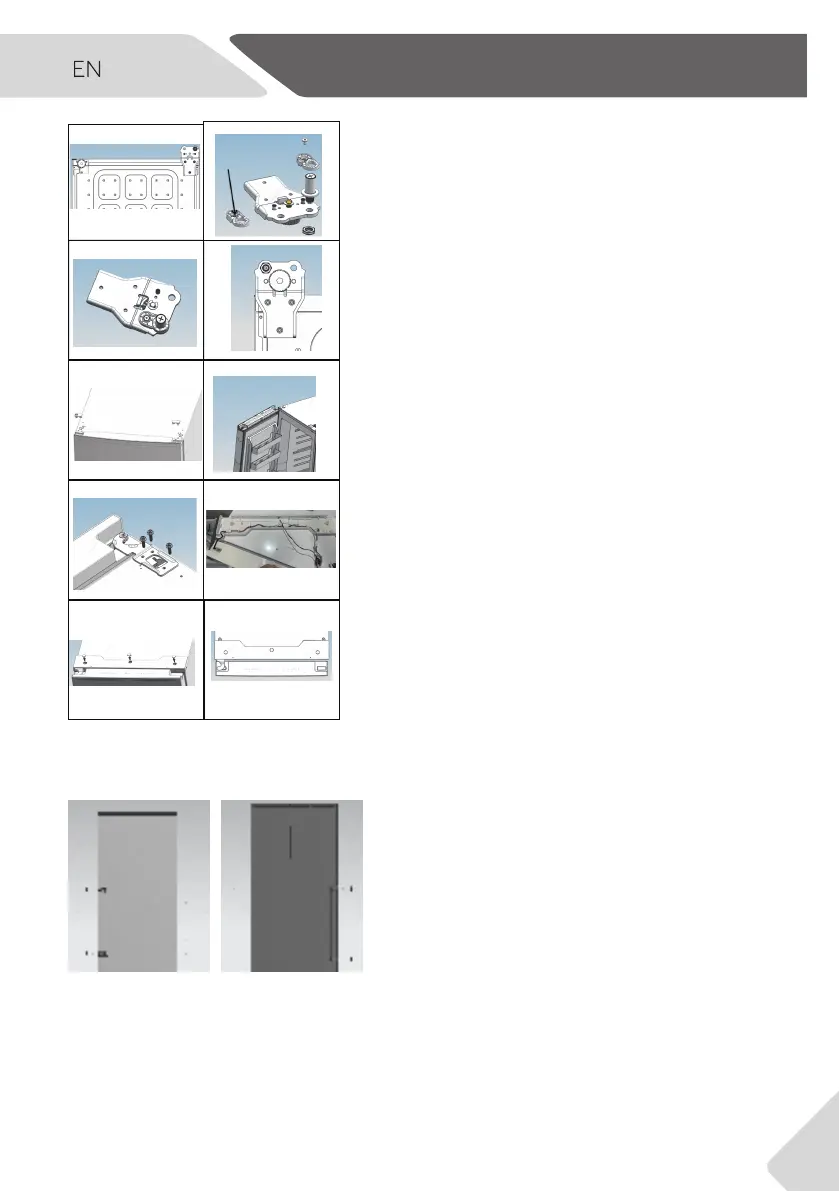

Tilt slightly backwards the cabinet, remove 3
screws and then the lower hinge.
11.
Take Lifting shaft sleeve out of the gift bag.
Remove 2 bolts, Remove the Lifting shaft sleeve and
Lifting shaft
12.
13.
Install the lifting shaft sleeve and lifting shaft in the left
hole and secure 2 bolts.(Adding lubricating oil to the
shaft)
Fix the hinge to the opposite position of the cabinet
with 3 screws.
14.
On opposite side of the door, pull out left side
connection cable and put it through the axle
cover from step 5, mount axle cover. Mount the
hole cover on the right side.
15.
16.
Mount the door.
Fix upper right upper hinge with 3 screws.
17.
18.
Connect the wiring harness as shown in the figure
Install the assembled hinge cover in step 5,
secure the three screws and screw hole
covers
19.
20.
Finished.
25
(Add
lubricating oil to the upper hinge before installation)
10.10 Handle Reversibility
Assembly steps (Fig. 10.10):
1. Remove 2 handle covers, 4 screws and handle
assembly from left side of the door. Remove 4 hole
plugs from right side of the door.
2. Fix handle assembly with 4 screws to right side
of door and 2 handle covers. Fix 4 hole plugs to
left side of the door.
3. Finished.
