52

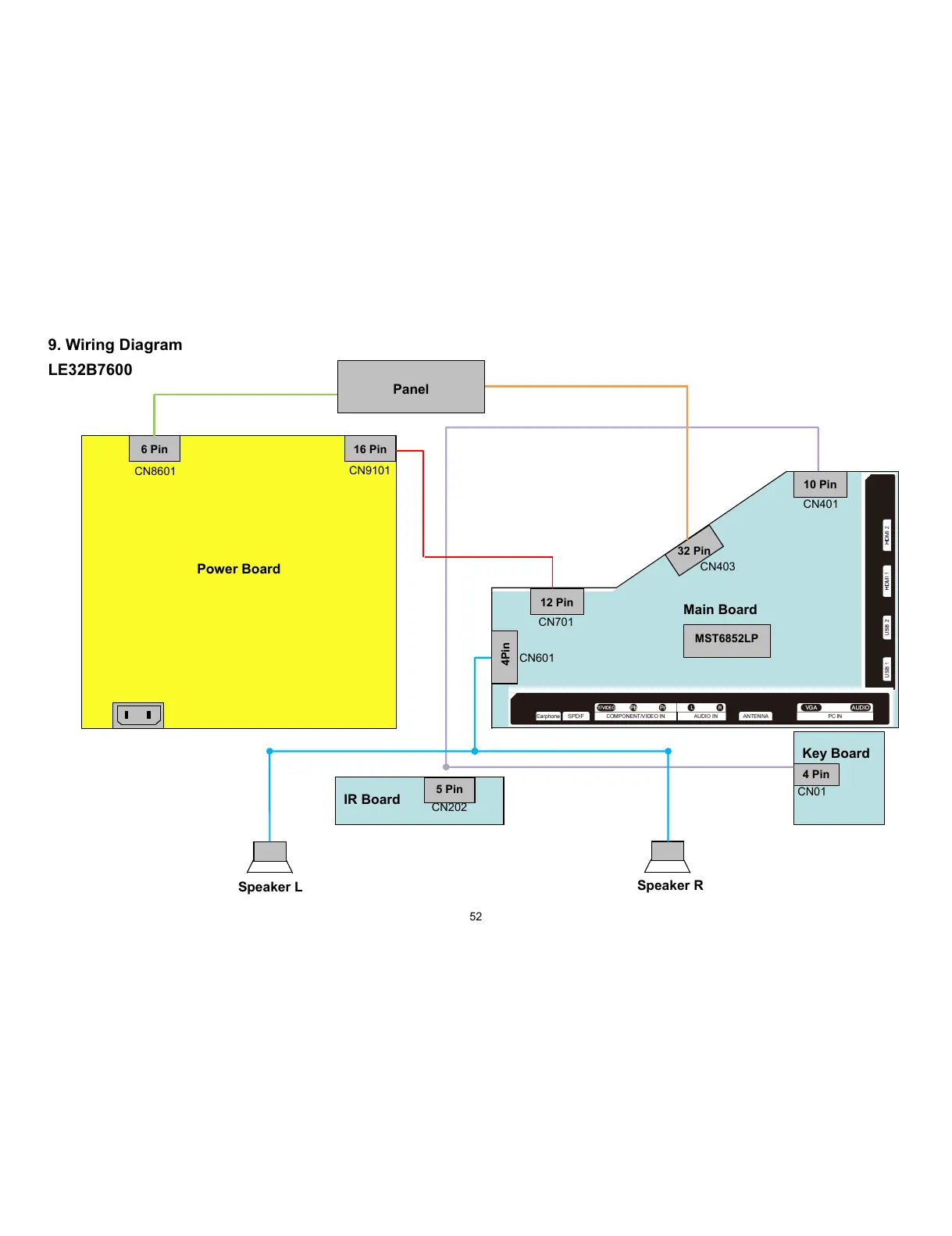

9. Wiring Diagram
LE32B7600
Panel
Speaker L
Speaker R
Power Board
6 Pin
CN601
Main Board
10 Pin
CN403
MST6852LP
Key Board
4 Pin
CN01
16 Pin
4Pin
12 Pin
32 Pin
CN401
CN8601
CN9101
CN701
IR Board
5 Pin
CN202
