Haier LE32B7600 - IR Board

65

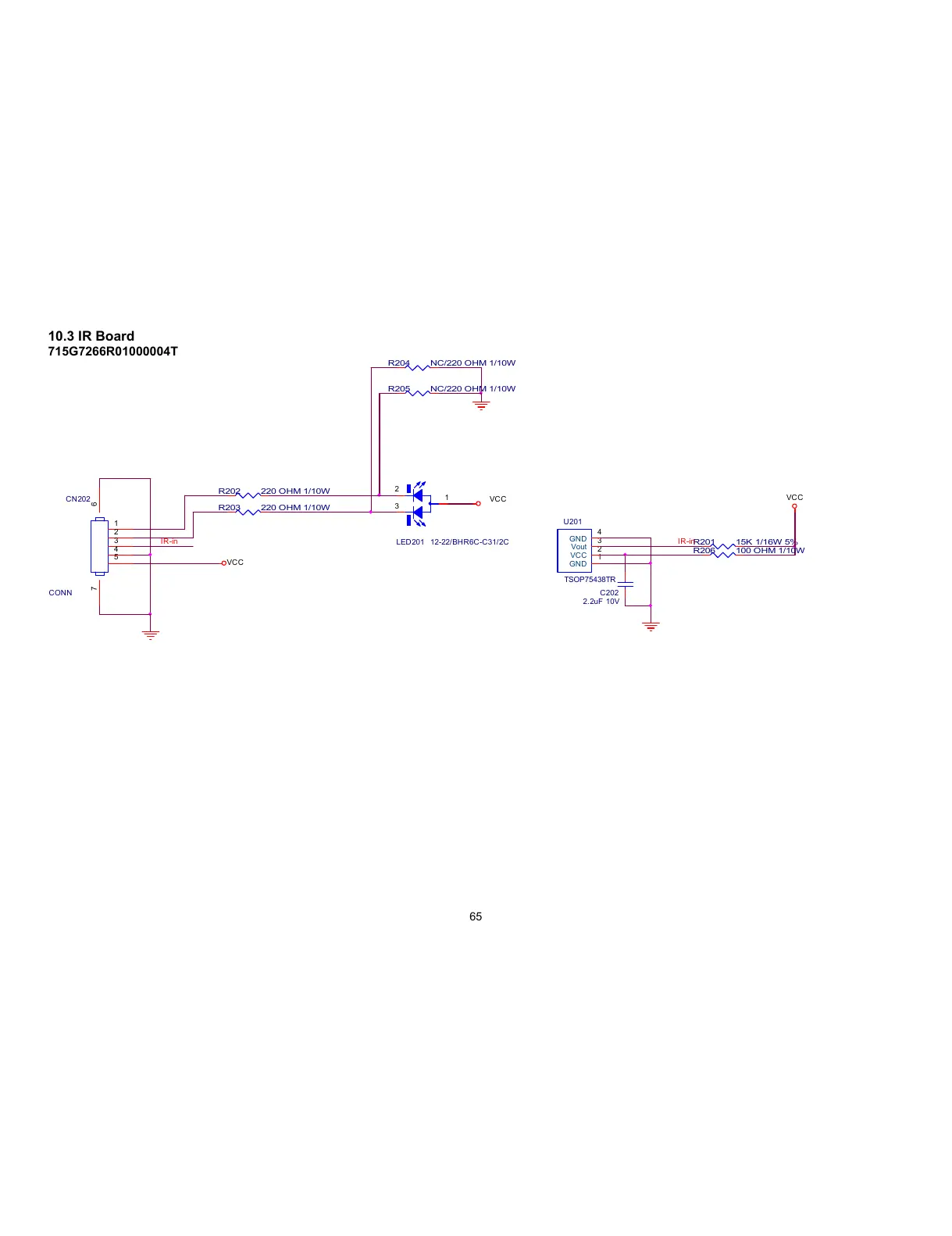

10.3 IR Board
715G7266R01000004T
VCC
VCC
R201 15K 1/16W 5%
R206 100 OHM 1/10W
CN202
CONN
1
2
3
4
5
67
IR-in
VCC
R204 NC/220 OHM 1/10W
R205 NC/220 OHM 1/10W
LED201 12-22/BHR6C-C31/2C
1
2
3
R203 220 OHM 1/10W
R202 220 OHM 1/10W
U201
TSOP75438TR
GND
1
VCC
2
Vout
3
GND
4
IR-in
C202
2.2uF 10V
