66
Note:
a. If all the indoor units operate at the same time in one system, the total indoor units capacity should be less
than or equal to the total outdoor units capacity. Otherwise,overloading operations may occur in bad operating
condition or some special conditions. If all the indoor units don't operate at the same time in one system,the total
indoor units capacity should be no more than 130% of the total outdoor units capacity.
c. If the system operates in high heat load or cold area (Ambient Temperature below -10°C), the total indoor units
capacity should be less than the total outdoor units capacity.
d. To choose combinations' wires and air switches according to the Max. operating current of the combinations.

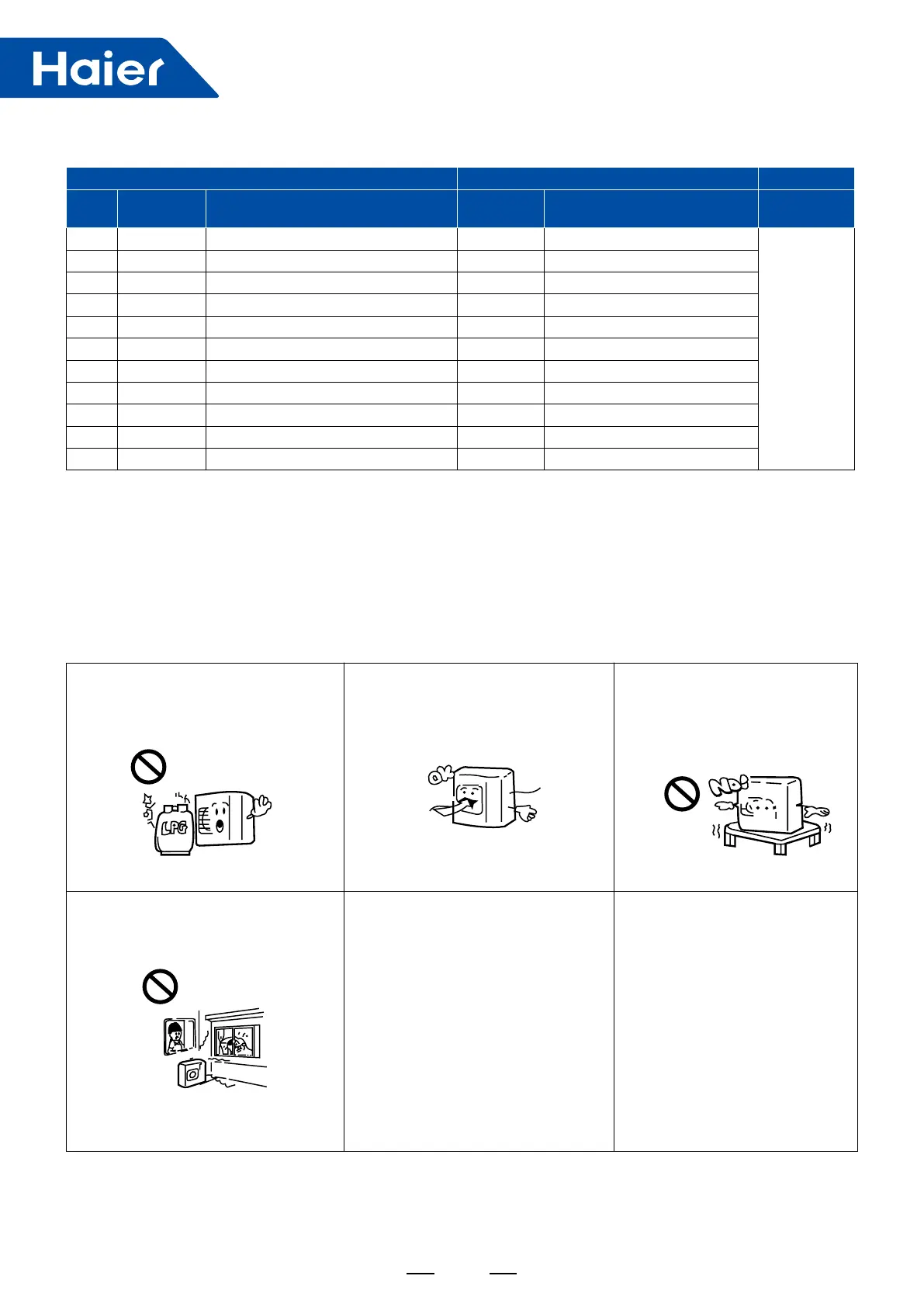

Installation place selection
Air-conditioner can't be installed in the
place with inammable gas. Or it will
cause re hazard.
The unit should be installed at the
place with good ventilation. No
obstacle at the air inlet/outlet. And no
strong wind blows the unit.
The installation space refers to the
latter info.
The unit should be installed at
the strong enough place. Or it will
cause vibration and noise.
Outdoor Indoor
HP
Capacity
(100W)
Combination type Indoor Qty Total indoor capacity (HP) Gather pipe
68 1908 Combination (450+450+504+504) 1~64 34~88.4
HZG-R40B
70 1962 Combination (450+504+504+504) 1~64 35~91
72 2016 Combination (504+504+504+504) 1~64 36~93.6
74 2072 Combination (504+504+504+560) 1~64 37~96.2
76 2128 Combination (504+504+560+560) 1~64 38~98.8
78 2184 Combination (504+560+560+560) 1~64 39~101.4
80 2240 Combination (560+560+560+560) 1~64 40~104
82 2295 Combination (560+560+560+615) 1~64 41~106.6
84 2350 Combination (560+560+615+615) 1~64 42~109.2
86 2405 Combination (560+615+615+615) 1~64 43~111.8
88 2460 Combination (615+615+615+615) 1~64 44~114.4
• The unit is better not be installed
at the below places, or it will
cause damage.
• The place where there is
corrosive gas (spa area etc).
• The place blowing salty air
(seaside etc).
• Exsits the strong coal smoke.
• The place with high humidity.
• The place where there is device
emitting Hertzian waves.
• The place where voltage
changes greatly.
• The place where the water can ow
uently.
• The place where no other heat
source will affect the unit.
• Pay attention to the snow against
clogging the outdoor.
• In installation, install the anti-
vibration rubber between the unit
and the bracket.
The unit should be installed at the
place where the cold/hot air or
noise will not interfere the neighbours.
To Next Page
