Transportation
• In transportation, please don't dismantle the packaging, and move the unit to the installation location as closely as
possible.
• Don't hang the unit only at two points. When hanging the unit, don't sit on the unit. The unit should be upright.
When removing the unit with the forklift, put the fork into the special hole at bottom of the unit. When being
hanged, the rope should be 4 pieces of steel cable with over 8mm diameter. Put the cushion at the contact
section between steel cable and the unit against the distortion or damage.
• When ring unit use hosting hole at base of unit. Protect unit against riging
damage by using cusion.

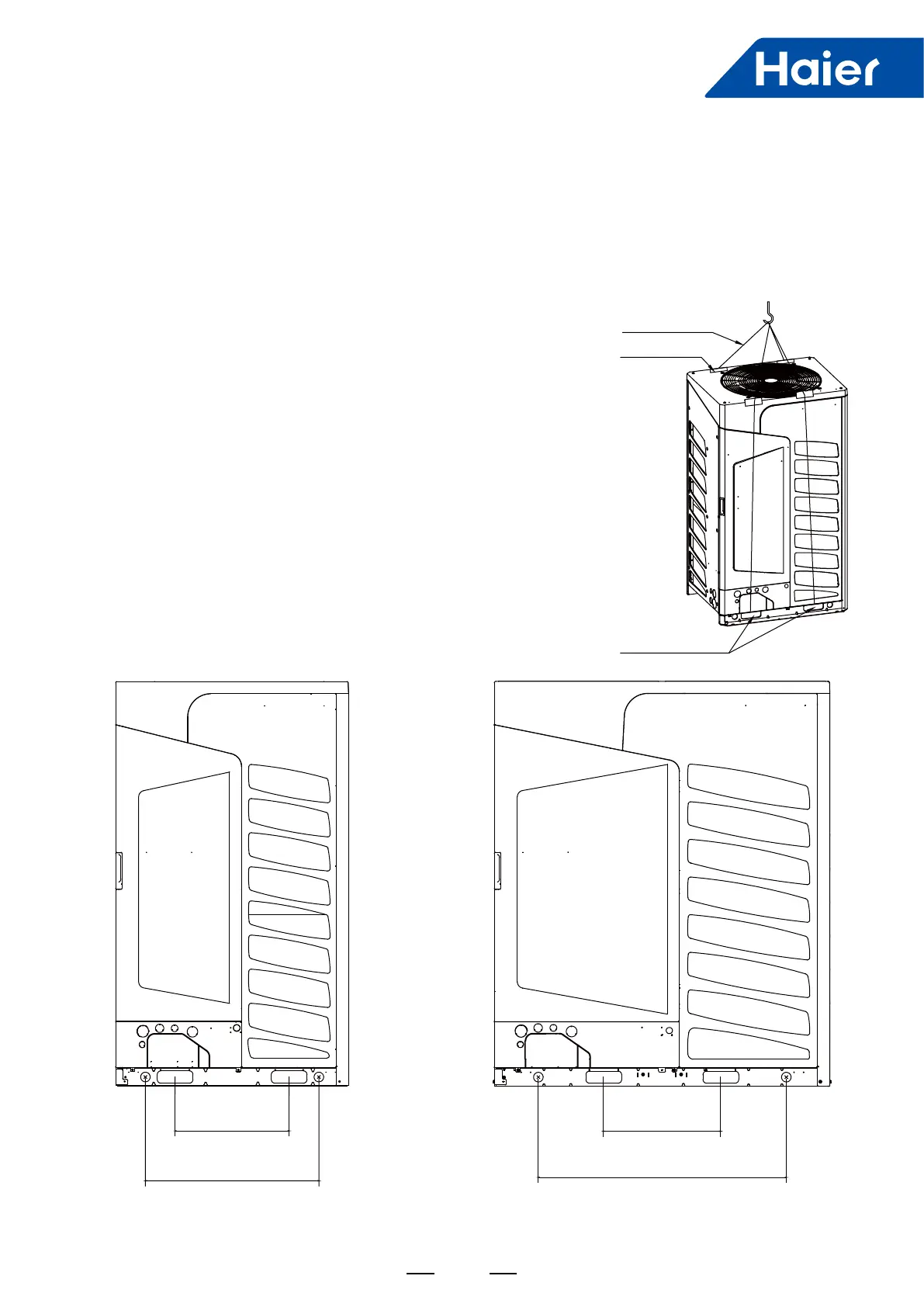

Forklift hole
distance
480mm
Hoisting hole diameter Ø40mm, distance730mm
AV08~14IMVURA
Forklift hole
distance
480mm
Hoisting hole diameter Ø40mm, distance1042mm
AV16~22IMVURA
Steel cable
Cushion
Hoisting hole
