2. Follow the instructions to route.
3. Make the dial setting - see the setting method.
4. Installation notes - see the IGU09 installation instructions.

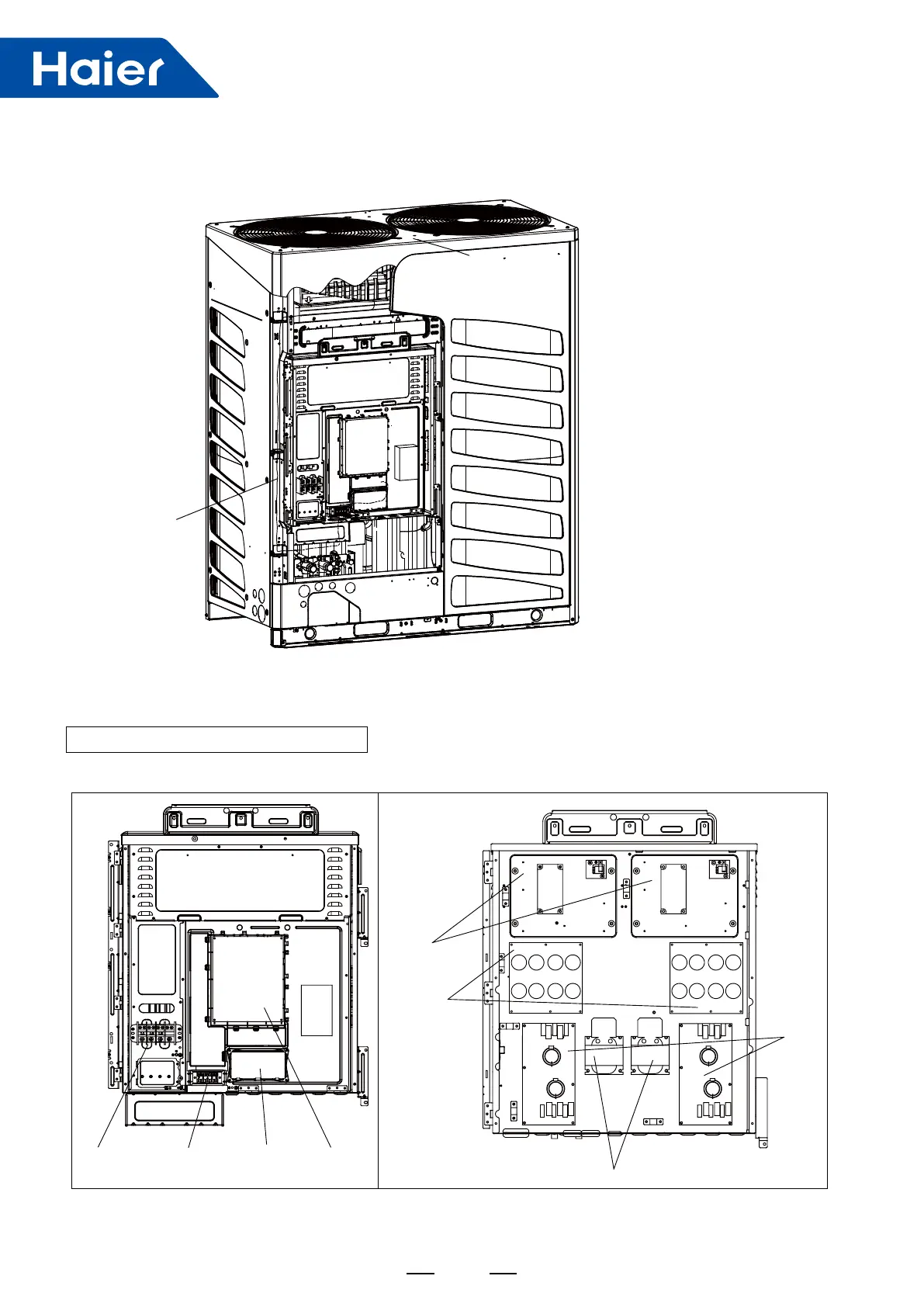

Internal layout of electric appliance box
For example
IGU09
Connecting line
Compressor
drive
module
Power
terminal
Communication
terminal
PCB Main control
board
Capacitor
plate
Reactance
Filter
board
