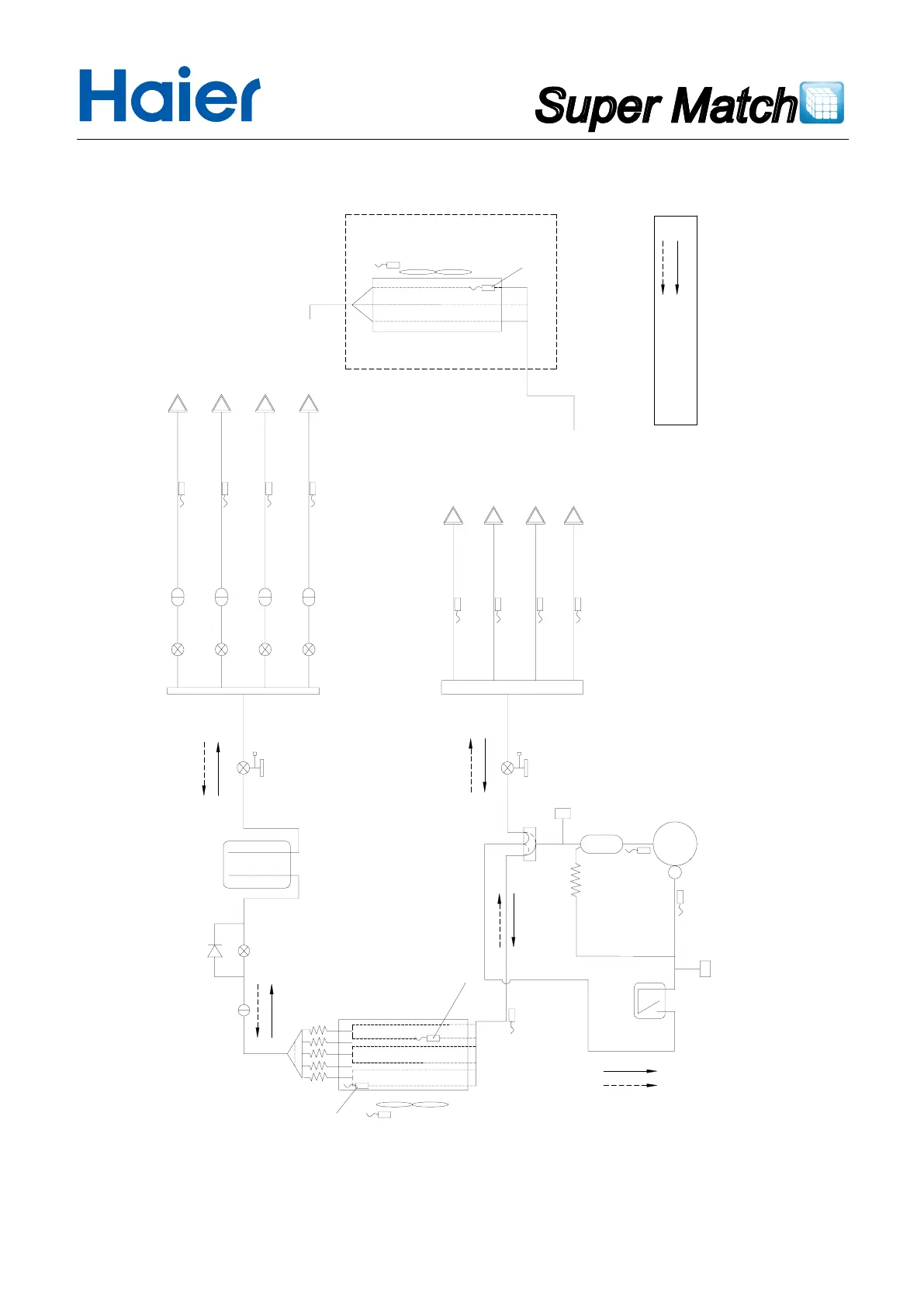

Super MatchSuper Match
Comp- ressor
Discharge temp.
sensor
Oil separator
Capillary tube Ø2.7*Ø1.0*1400
High pressure
switch
4-way valve
Pipe sensor
Toci
Suction temp. sensor
Low pressure
switch
Accumulator
Gas stop valve
Outdoor
heat
exchanger
temp.
sensor
FAN-OUT
Outdoor ambient temperature sensor
Defrost sensor
Distributor
Strainer
Check valve
Receiver
Liquid stop vavle
5/8 3/8
Strainer
Unit A liquid pipe temp. sensor
Indoor unit A
Strainer
Unit B liquid pipe temp. sensor
Indoor unit B
Strainer
Unit C liquid pipe temp. sensor
Indoor unit C
Strainer
Unit D liquid pipe temp. sensor
Indoor unit D
Unit A gas pipe temp. sensor
Unit B gas pipe temp. sensor
Unit C gas pipe temp. sensor Unit D gas pipe temp. sensor
Indoor unit A Indoor unit B Indoor unit C Indoor unit D
4-way valve coil:
OFF ON
Refrigerant flow in cooling
Refrigerant flow in heating
FAN-IN
Indoor
ambient
temperature
sensor
Indoor
heat
exchanger
temp.
sensor
4U30HS2ERA
EEV A
B VEE
EEV C EEV D
EEV O
