INTRODUCTION
A-4
ENGLISH

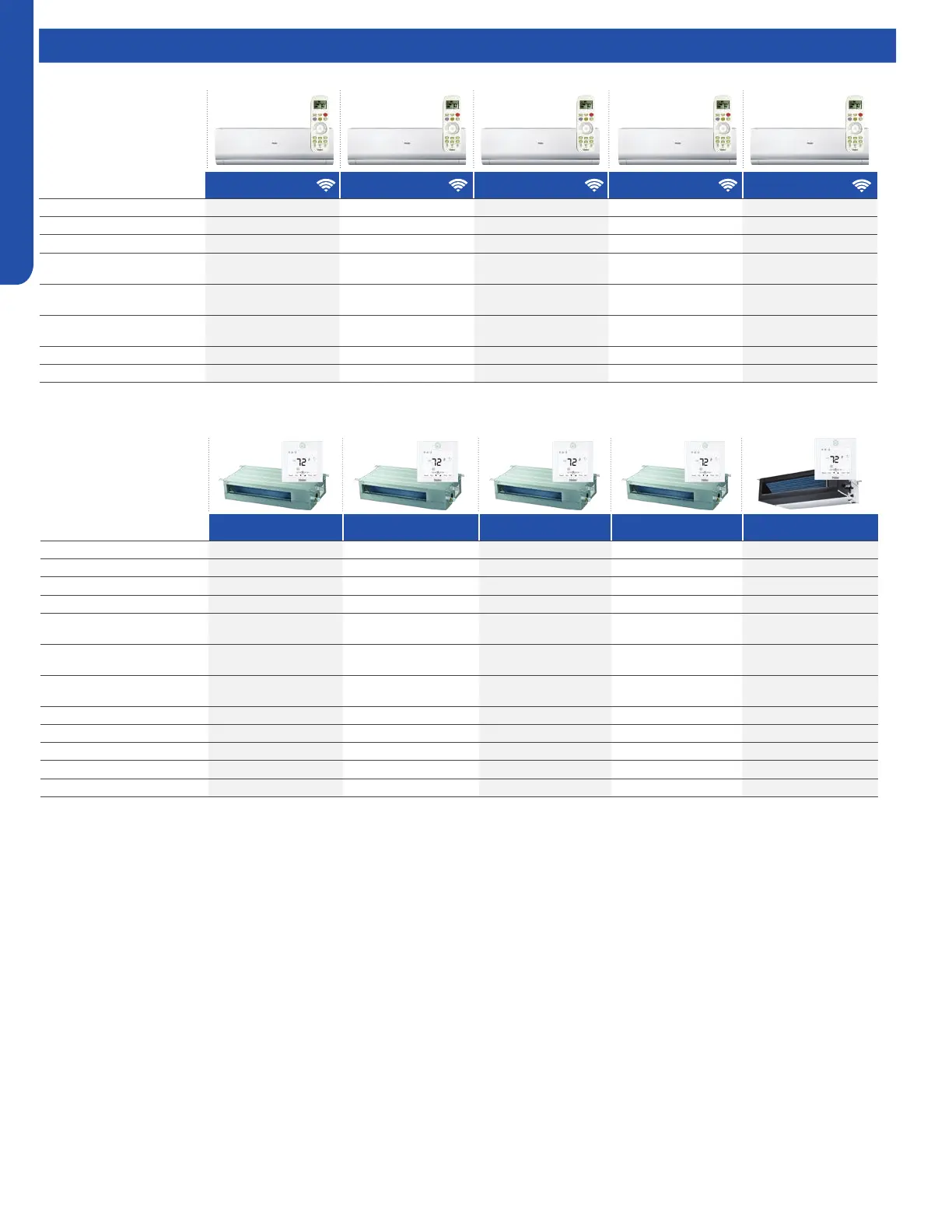

Specications
AD07SL2VH(-) AD09SL2VH(-) AD12SL2VH(-) AD18SL2VH(-) AM24LP2VH(-)
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 18,000 24000
Rated Heating Capacity Btu/hr 8,000 10,000 13,000 19,000 27000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
AirowCFM(Turbo/H/M/L/Quiet) 353/312/270/230/188 353/312/270/230/188 400/353/282/247/218 540/500/447/365/306 845/670/530/470
Max. Ext. Static Pressure
in.W.G(Pa)
0.16 (40) 0.16 (40) 0.16 (40) 0.16 (40) 0.6 (150)
Indoor Sound dB
(Turbo/H/M/L/Quiet)
35/33/29/26/21 35/33/29/26/22 38/35/29/26/23 31/29/23/29/25 38/35/32/29
Dimension: HxWxD in (mm)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 33 7/16 x16 9/16
(185x850x420)
7 5/16 x 46 1/16 x16 9/16
(185x1170x420)
9 7/8 x 37 5/8 x 25 3/4
(250x957x655)
Weight(Ship/Net)-lbs(kg) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 47.2/36.8 (21.4/16.7) 61.8/48.5 (28/22) 68.8/81.1 (31.2/36.8)
Liquid / Suction O.D. in 1/4 3/8 1/4 3/8 1/4 3/8 1/4 1/2 3/8 5/8
Drainpipe Size O.D. in 1 1/4 1 1/4 1 1/4 1 1/4 1 1/4
Condensate Pump Standard Standard Standard Standard Standard
Max. Drain-Lift height in(mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)
AW07LC2VH(-) AW09LC2VH(-) AW12LC2VH(-) AW18LC2VH(-) AW24LP2VH(-)
Rated Cooling Capacity Btu/hr 7,000 9,000 12,000 18,000 22,000
Rated Heating Capacity Btu/hr 8,000 10,000 13,000 19,000 24,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1 208-230/60/1
AirowCFM
(Turbo/H/M/L/Quiet)
410/350/295/235/205 410/350/295/235/205 440/380/320/265/215 636/530/483/430/383 710/650/560/440/410
Indoor Sound dB
(Turbo/H/M/L/Quiet)
43/38/33/26/22 43/38/33/26/22 44/39/34/27/23 48/45/40/35/30 49/47/42/36/34
Dimension: H x W x D in (mm)
11 x 33 5/8 x 8 1/16
(280 x 855 x 204)
11 x 33 5/8 x 8 1/16
(280 x 855 x 204)
11 x 33 5/8 x 8 1/16
(280 x 855 x 204)
12 3/4 x 39 1/4 x 9 1/4
(332 x 997 x 235)
13 1/4 x 43 7/8 x 9 9/16
(336 x 1115 x 243)
Weight(Ship/Net)-lbs(kg) 26.8/22 (12.2/10) 26.8/22 (12.2/10) 26.8/22 (12.2/10) 35.3/28.6 (16/13) 45.4/37.5 (20.6/17)
Liquid /Suction O.D. in 1/4 3/8 1/4 3/8 1/4 3/8 1/4 1/2 3/8 5/8
Highwall Indoor
Ducted Indoor
