Haiwell PLC User Manual & Application Case

www.haiwell.com Haiwell PLC - Analog Module Application Case
17 / 18
2.9. Haiwell Cloud configuration communicates directly with S08AI module example

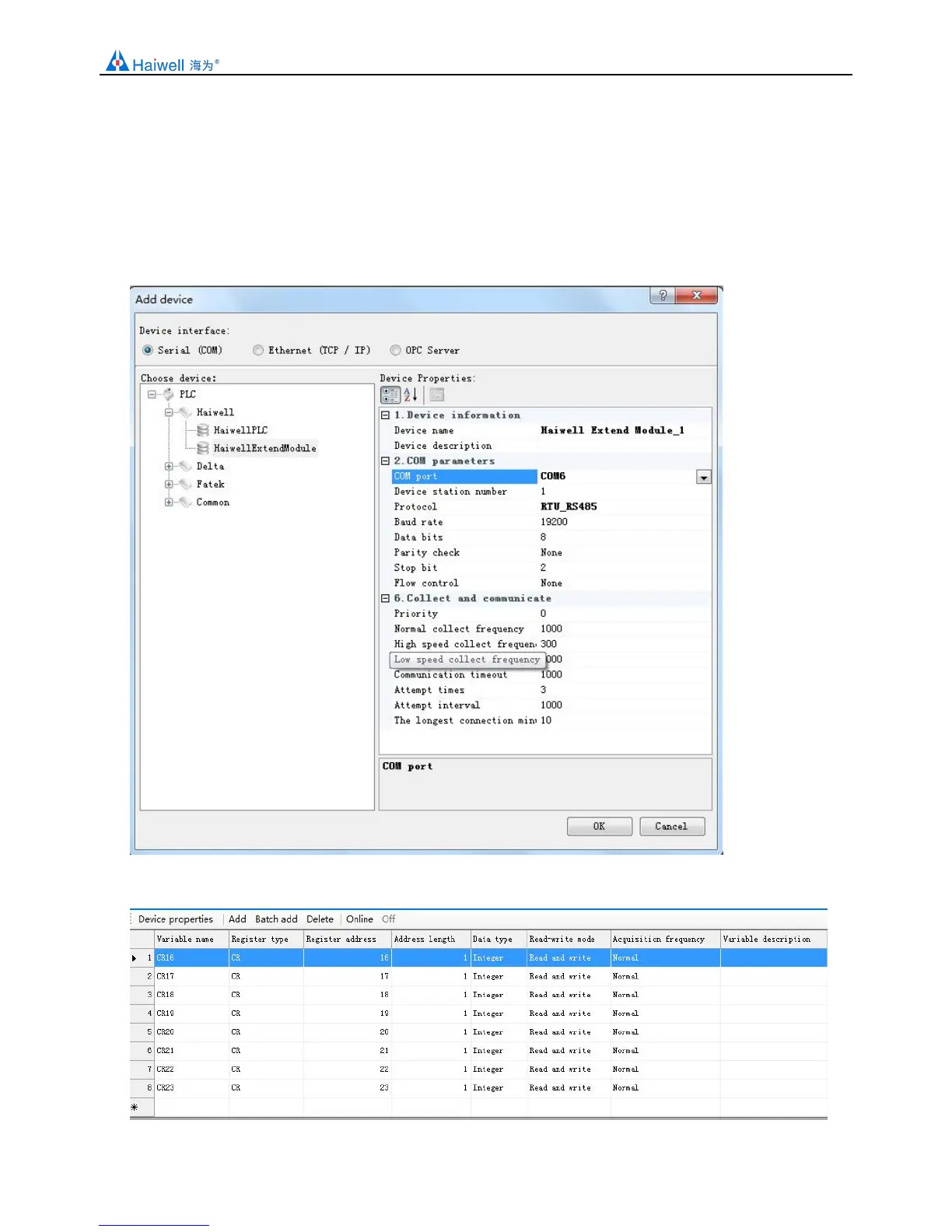

Open Haiwell SCADA software, select the "new project", choose to add the device in the "device", then choose serial port or
Ethernet according to the module which supports the Ethernet or RS485, this example for serial port, the serial port number
of USB to 485 is COM6, as shown below:
Default parameter 19200 N 8 2 RTU for the module, station number address is 1. And directly select Haiwell remote module
driver in serial port：
Click OK, then we are prompted to start set up variables, the establishment of eight variables indicates 8 channels:
