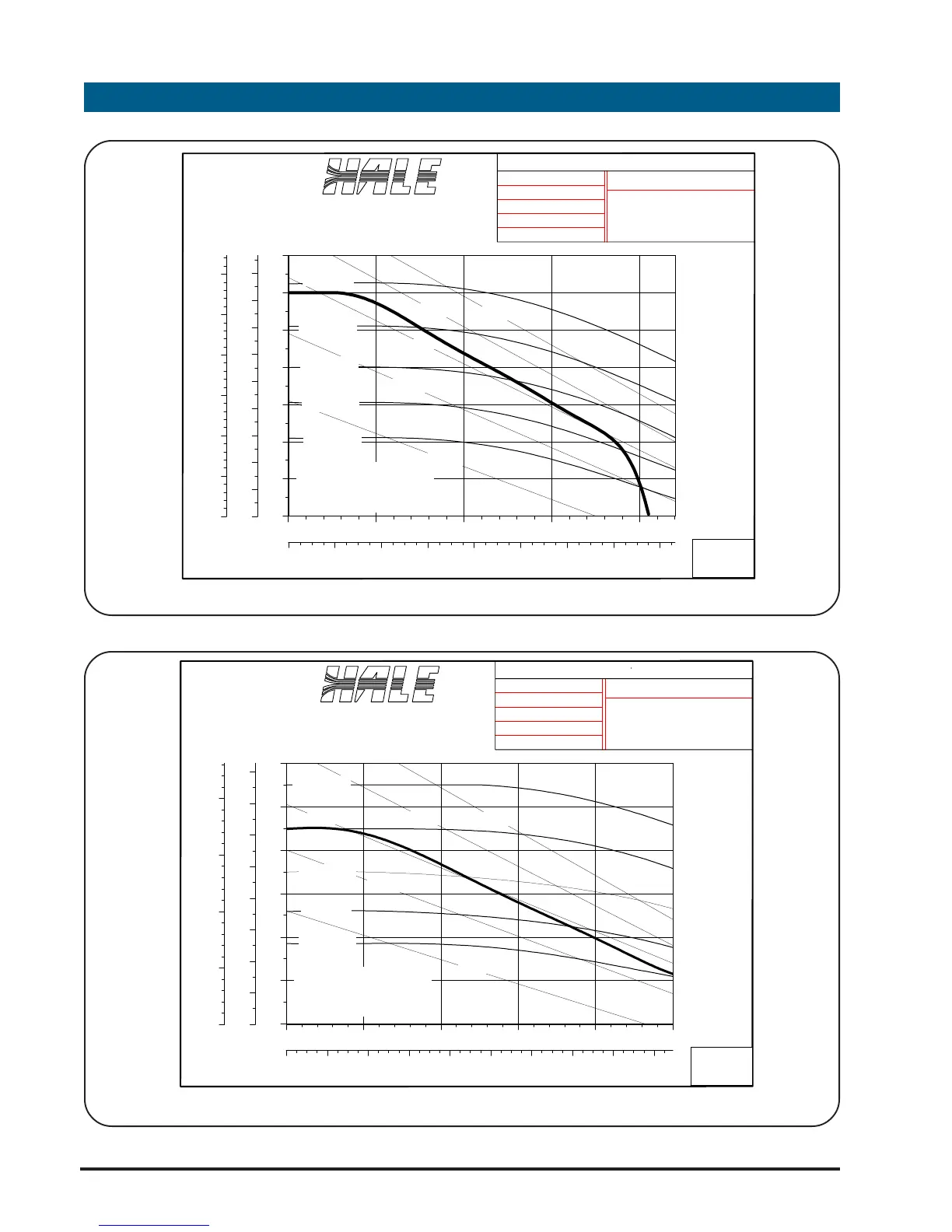

HP300 SERIES PERFORMANCE CURVE
HP400 SERIES PERFORMANCE CURVE
0 100 200 300 400 500
GPM
0
20
40
60
80
100
120
PSI
0 200 400 600 800 1,000 1,200 1,400 1,600 1,800
LITERS/MIN
0
1
2
3
4
5
6
7
8
BAR
0
50
100
150
200
FEET
CURVE NO.
E-1124
Hale Fire Pump Company
Conshohocken, Pa. 19428 USA
UNIT MODEL : HP400
INLET: 4 IN
OUTLET: 3 IN
CONDITIONS: STP
LIFT: 4 FT
2800 RPM
3200 RPM
3600 RPM
4000 RPM
2400 RPM
5 HP
10 HP
15 HP
20 HP
25 HP
6-21-94 JDRTOTAL HEAD
FLOW
ELEVATION: SEA-LEVEL
ENGINE:
BRIGGS & STRATTON MODEL
VANGUARD 18 OHV
18 HP @ 4000 RPM
PERFORMANCE BASED ON
95% OF ENGINE
MANUFACTURER'S MAXIMUM
BRAKE HORSEPOWER
0 100 200 300 400
GPM
0
20
40
60
80
100
120
140
PSI
0 200 400 600 800 1,000 1,200 1,400 1,600
LITERS/MIN
0
1
2
3
4
5
6
7
8
9
BAR
0
50
100
150
200
250
300
FEET
CURVE NO.
E-1123
Hale Fire Pump Company
Conshohocken, Pa. 19428 USA
UNIT MODEL : HP300
INLET: 3 IN
OUTLET: 2-1/2 IN
CONDITIONS: STP
LIFT: 4 FT
2800 RPM
3200 RPM
3600 RPM
4000 RPM
2400 RPM
5 HP
10 HP
15 HP
20 HP
25 HP
1-12-94 JDR
TOTAL HEAD
FLOW
ELEVATION: SEA-LEVEL
ENGINE:
BRIGGS & STRATTON MODEL
VANGUARD 18 OHV
18 HP @ 4000 RPM
PERFORMANCE BASED ON
95% OF ENGINE
MANUFACTURER'S MAXIMUM
BRAKE HORSEPOWER
