HALNy HL-1GE Quick Installation Guide
4
2.2 Front and Rear Panel
The description of the front panel and the rear panel of the GPON ONU as follows.
2.2.1 Front Panel

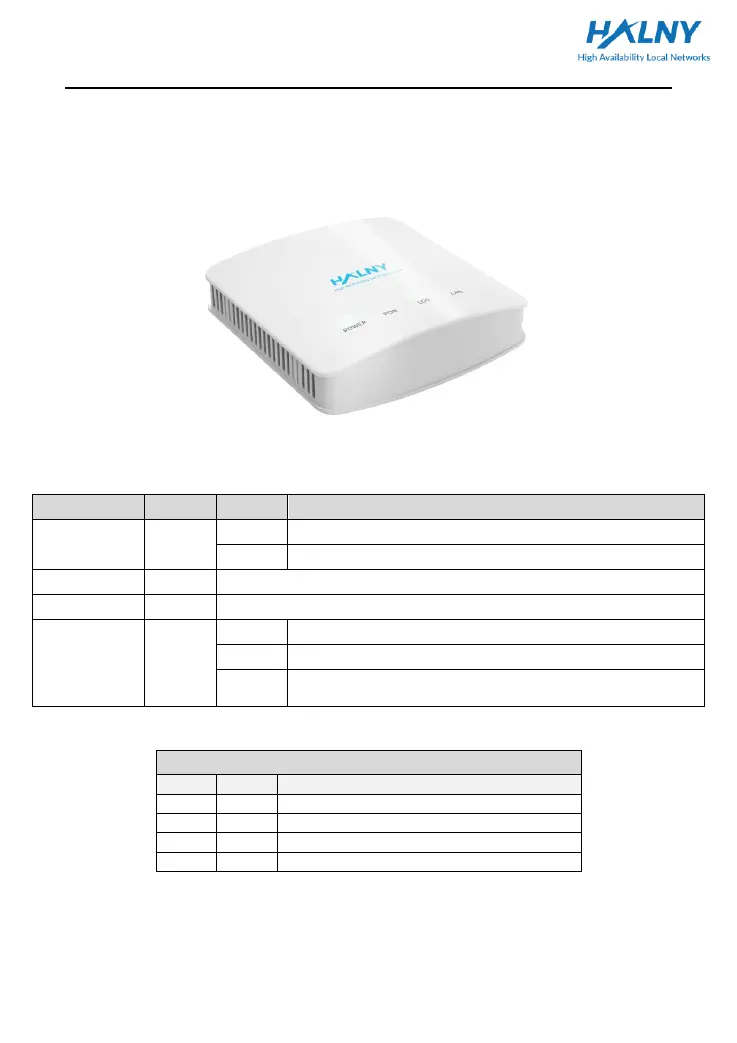

Fig. 1 - Front Panel
LED
Color
Status
Description
POWER
Green
On
The power works normally.
Off
Powered off or the power supply is abnormal.
PON
Green
Refer to Table 2: “PON LED Status Instruction”
LOS
Red
Refer to Table 2: “PON LED Status Instruction”
LAN
Green
On
The connection of Ethernet interface is normal.
Blink
Data is being transmitted through the Ethernet interface.
Off
The connection of the Ethernet interface fails to
establish.
Table 1. ONU LED Indication Table
Table 2.PON LED Status Instruction
PON LED Status Instruction
PON
LOS
Description
Off
Off
The ONT is disabled by the OLT
Flash
Off
The ONT is registering to the OLT
On
Off
The ONT has already registered to OLT
Off
Flash
The fiber is not connected properly
