ADJUSTMENTS & CONTROL FUNCTIONS

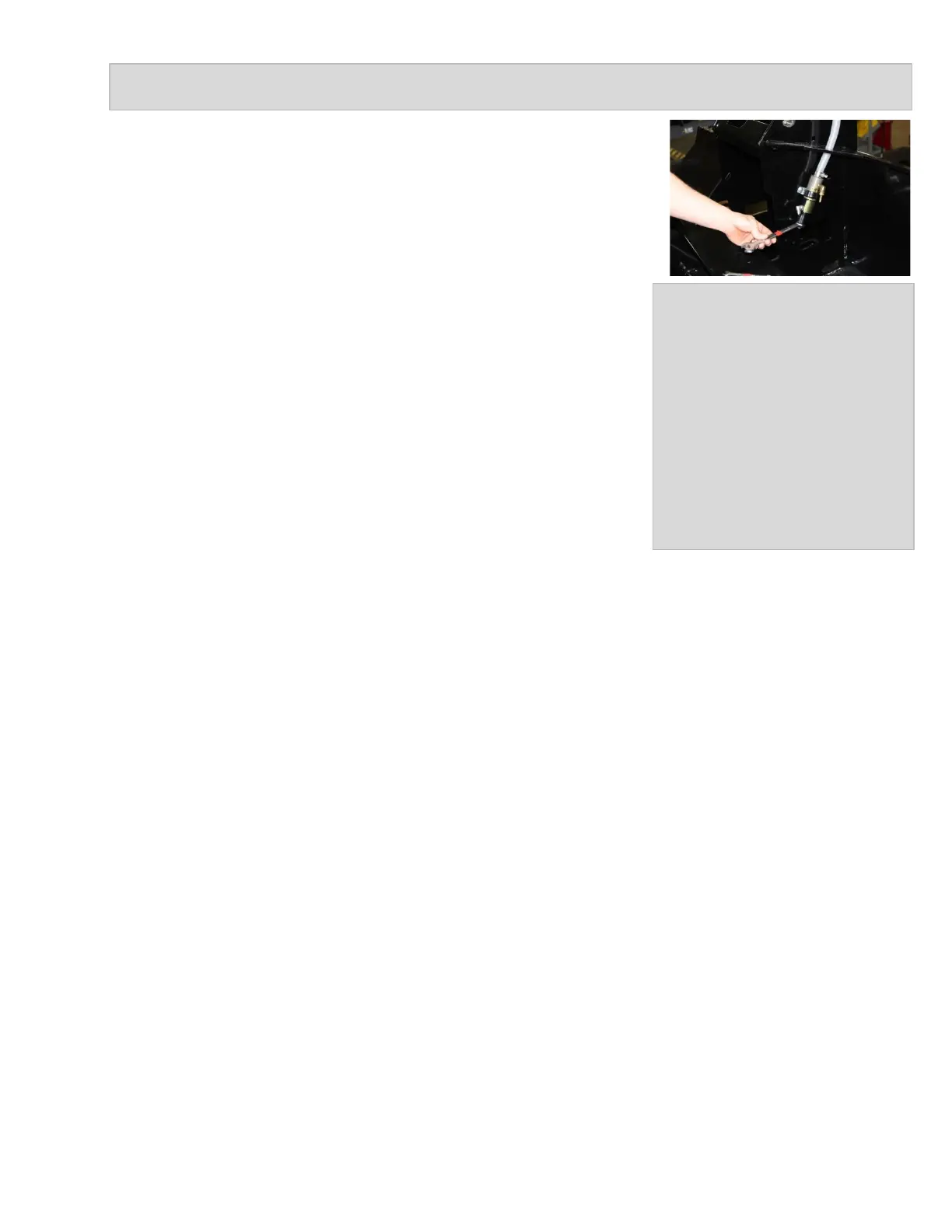

SAW OILER:
To increase the oiler pump output, turn the adjusting stem out
(counter clockwise). To decrease the amount of bar oil, turn the stem
in (clockwise).
CLEANING:
Keep the splitter area, valve compartment and splitting table free of
debris. Inspect the skid steer’s radiator and oil cooler on a regular
basis and look for build-up of saw dust and other debris. Pressure
wash the radiator and oil cooler regularly to prevent overheating and
damaging the skid steer and processor components.
LUBRICATION INTERVALS:
DAILY: -Grab arm pivot points
-Saw swivel head
-Saw cylinder pivot points
CHAINSAW:
To engage the saw, press the second button down on the right hand control pad. To raise the saw,
release the button. (Splitter must be all the way to the left)
SAW CHAIN TENSIONING:
- Maintain proper chain tension by adjusting the saw bar tension screw. If the chain runs too loose, it
can hit the inside of the guard and become dull. The chain is properly tensioned when you can pull the
tie straps 1/8” from the surface of the bar’s rails in the center of the bar. Do not tighten it when it is hot
as it will shrink when it cools and will stress the chain and the bar’s sprocket nose.
- Regularly monitor the bar oil flow to ensure the chain is being lubricated sufficiently but not
excessively. The reservoir should last 3-1/2 hours. Use only quality bar and chain oil.
- Regularly monitor the condition of the chain’s cutters and sharpen as required. Failure to do so will
result in reduced saw performance and reduced bar life.
SPLITTER /TABLE:
Press the TABLE FORWARD
button, the top button on the right hand control pad, to extend the splitter
cylinder/attached to the table. This will simultaneously split the wood.
HOME POSITION FOR SAW & SPLITTER:
- The home position for the saw is all the way back inside the guard.
- The home position for the splitter is all the way back, to the left.
- The travel position for the splitter is all way out, to the right.
ADAPTOR 14 PIN CONNECTOR
- You will need 5 electronic buttons that send 12 volts to each pin on the 14 pin connector. You will
also need constant power and ground on the 14 pin connector.
- If you do not have enough functions you will need an optional main cab harness kit.
NOTES:
•
It is common to have excess
oil dripping off the saw bar.
• Oiler may need to be
adjusted. You should see a
mist of oil when saw button
is pushed.
-Turn adjustment in for
less oil
-Turn adjustment out
for more oil
