Hamilton HTK Installation Manual

Document #101-0204 24 10/21/2011
OFF
ON
Time
1 Second
Minimum
1 Second
Minimum
If > 10 Minutes Then " Closed"
ON
OFF
Time

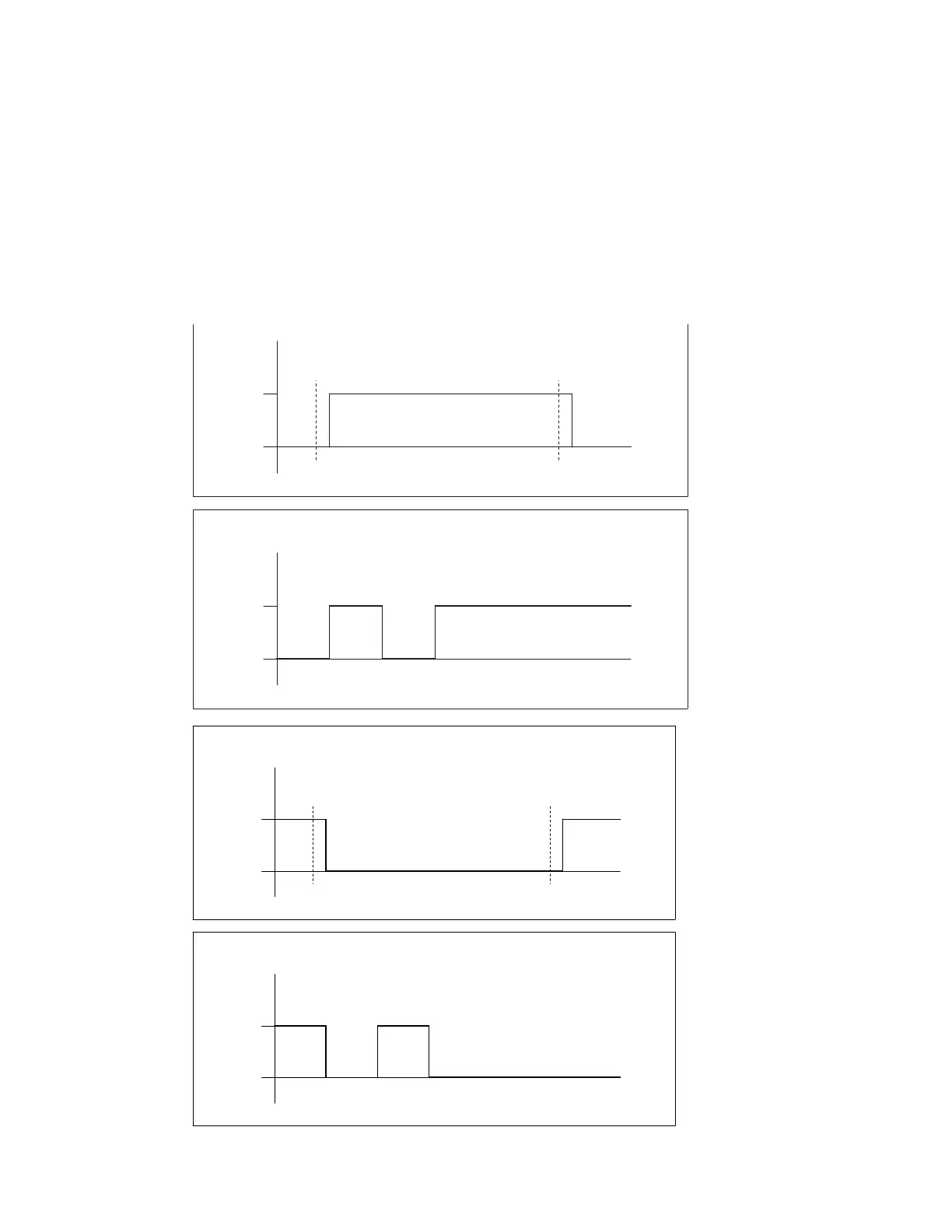

Car Enters Wash Car Exits Wash
Cycle Relay
Coil Status
Cycle Relay
Coil Status
yy
( Passive )
Cycle on Entry
( Passive )
Busy Status Signal
OFF
ON
Car Enters Wash Car Exits Wash
Time
OFF
ON
1 Second
Minimum
1 Second
Minimum
If > 10 Minutes Then " Closed"
Time
Cycle Relay
Coil Status
Cycle Relay
Coil Status
Cycle on Entry
( Active )
Cycle on Entry
( Active )
Busy Status Signal
 Setting Car Wash Cycle Synchronization
The Car Wash Cycle Synchronization is a programmable setting in the HTK controller. The proper set-
ting of this category depends on the equipment used in your car wash system. If the car wash equipment
normally leaves the CYCLE/INHIBIT RELAY de-energized while in standby, and then energizes the
relay when the customer enters the bay, the programming category should be set to PASSIVE . If the
reverse occurs, where the car wash equipment normally energizes the CYCLE/INHIBIT RELAY while
in standby, then de-energizes the relay when the customer enters the bay, the programming category
should be set to ACTIVE .
