4
Assembly

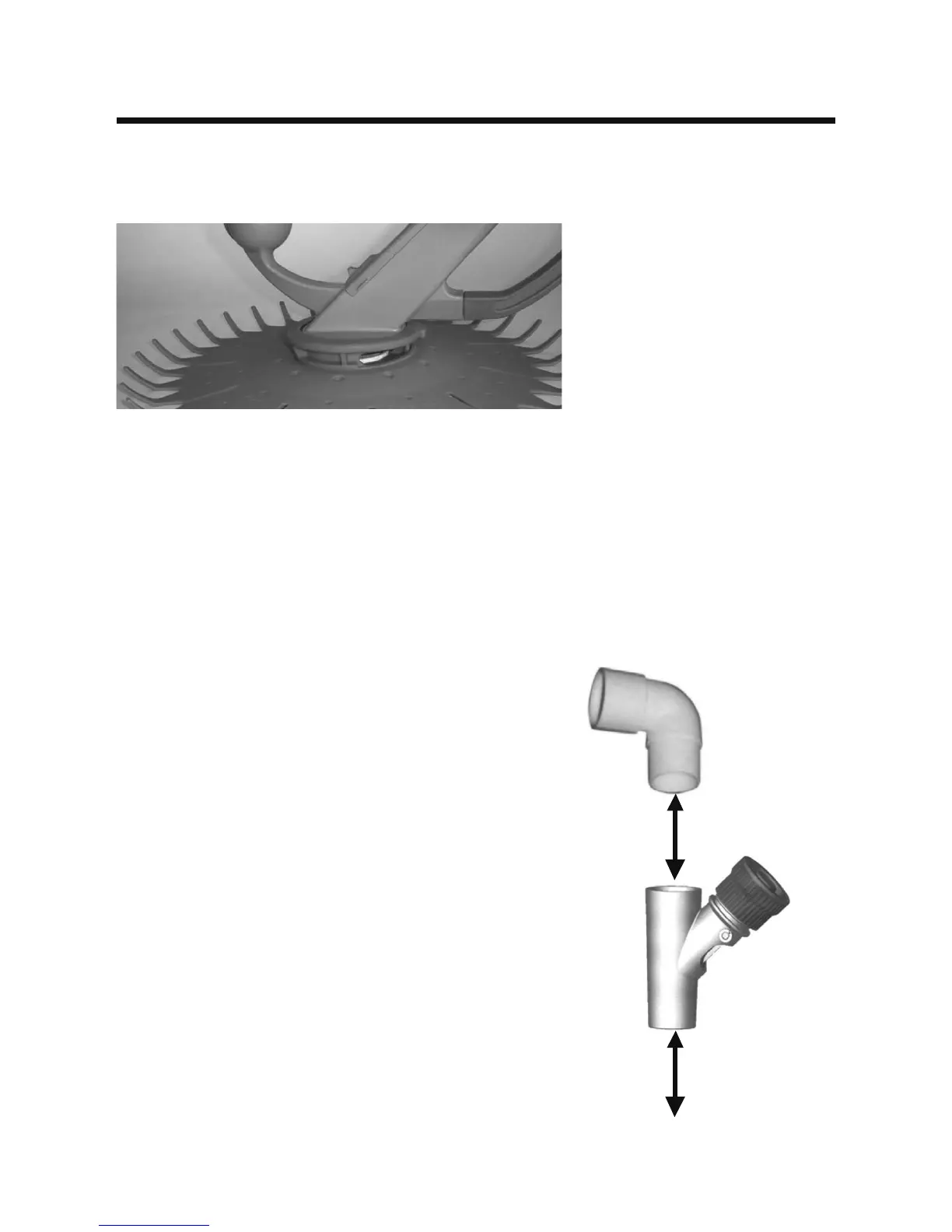

Suction Seal Assembly
Weir Component Assembly
Pull Suction Seal over the cleaners Foot Pad so that it will fi t properly into the Foot
Pad’s groove as shown in illustration #1.
Ensure that the curved tips of the Suction Seal face upwards.
Ensure that the Suction Seal rotates freely.
Certain Skimmer Boxes may not require the
insertion of the 90 Degree Elbow.
If the fi rst length of pool hose can be inserted
into the valve.
Insert the 90 Degree Elbow into the Regulator
Valve as shown in the illustration.
90 Degree elbow
Regulator valve
(insert into weir)
