HAMPTON BAY 118023 - Attaching the Legs; Assembling Bottom Screen Sections; Installing the Fire Bowl; Attaching the Center Ring

5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly

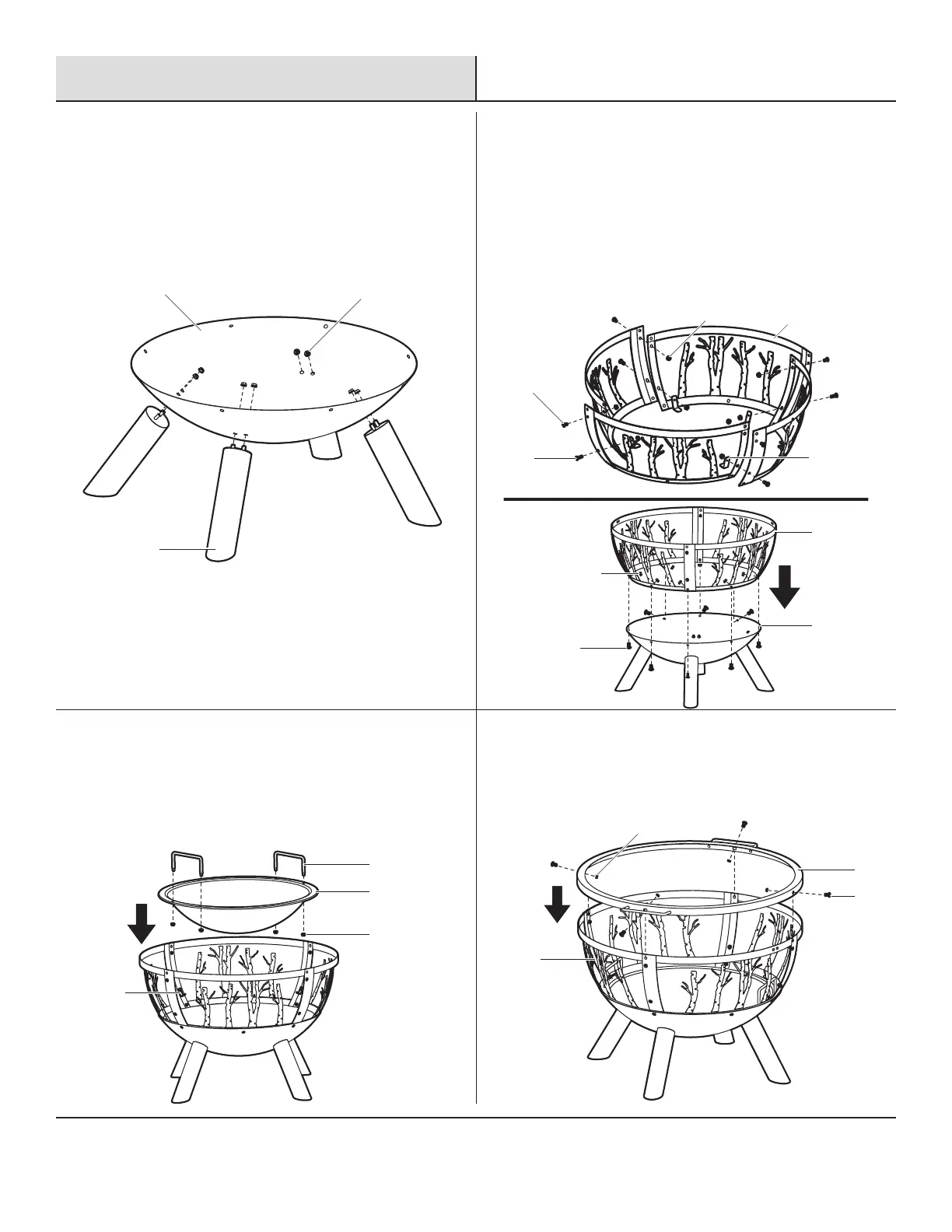

1
Attaching the legs
□ Attach the legs (B) to the metal base (A) using the hexnuts
(DD).
A
DD
B
2
Assembling the bottom screen
sections
□ Assemble the bottom screen sections (C) and re bowl pins
(I) using four 12 MM bolts (AA) through the upper holes
and four 16 MM bolts (BB) through the lower holes and re
bowl pins (I). Secure using eight hexnuts (DD).
□ Attach the assembled bottom screen sections (C) to the
metal base (A) using 12 MM bolts (AA) and hexnuts (DD).
BB
AA
DD
I
C
DD
C
A
AA
3
Installing the re bowl
□ Attach the re bowl handles (H) to the re bowl (G) using
the hexnuts (DD).
□ Place the re bowl (G) on the re bowl pins (I).
H
G
DD
I
4
Attaching the center ring
□ Attach the center ring (D) to the bottom screen sections (C)
using the 12 MM bolts (AA) and hexnuts (DD).
AA
D
DD
C
