HAMPTON BAY 56-ANTHL - Assembly - Attaching the Fan Blades; Attaching the fan blades; Fastening the blade assemblies to the motor

12

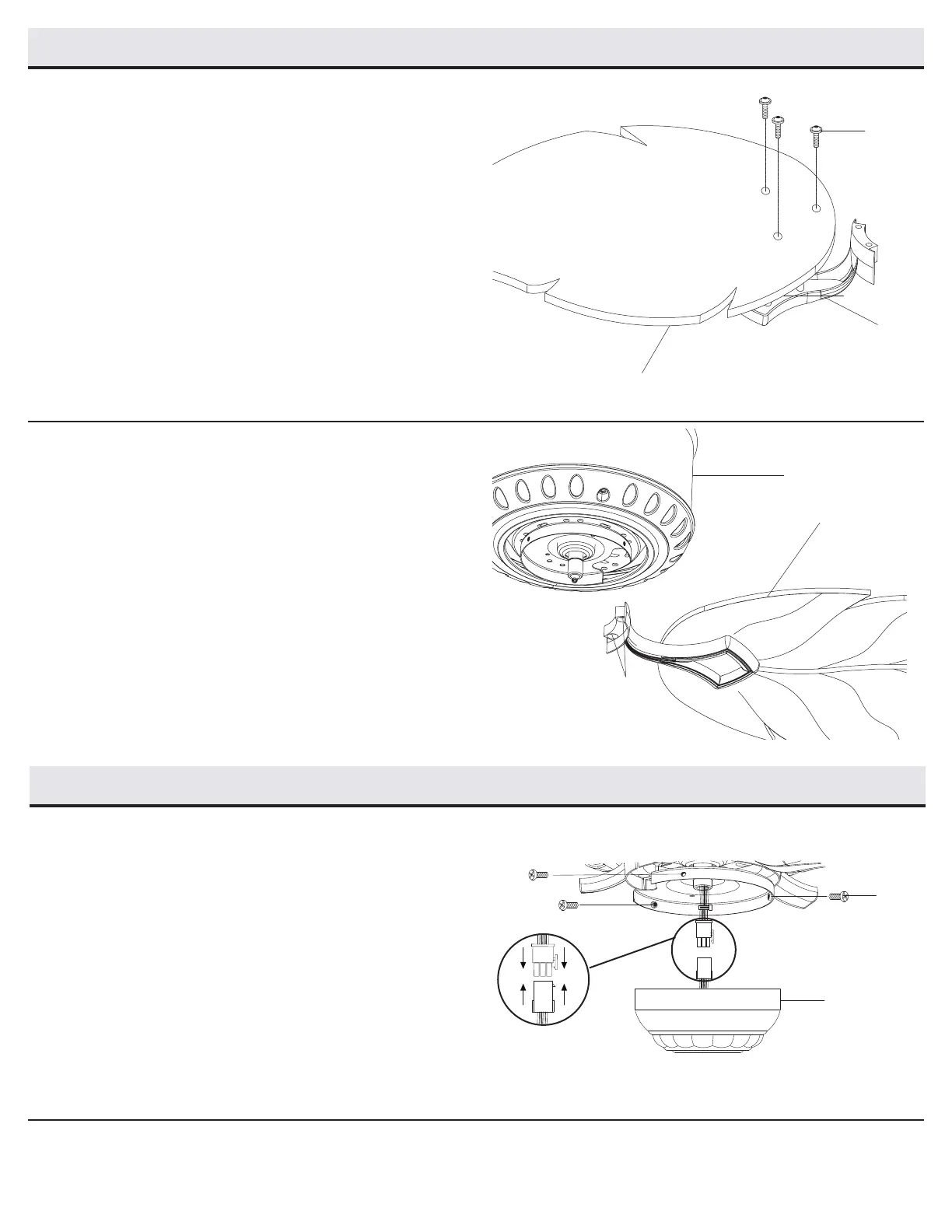

Assembly - Attaching the Fan Blades
Attaching the fan blades
Fastening the blade assemblies to
the motor
8
9
□ Attach blade (G) to blade bracket (H) using the screws (AA)
provided. Please note that the rubber washers are pre-
attached to the blade bracket (H). Insert a screw into the
blade bracket (H). Repeat for the two remaining screws (AA).
□ Tighten each screw securely.
□ Repeat these steps for the remaining blades.
□ Fasten the blade assembly to the motor (E) by inserting the
alignment post into the slot on the bottom of the motor (E)
and tightening the blade bracket screws (TT). Please note
that the blade bracket screws (TT) are pre-attached into the
blade bracket (H).
□ Repeat this step for the remaining blade assemblies.
Assembly - Installing the Fan without the Light Kit
Attaching the switch cup
10
□ Remove the three mounting screws (RR) on the black bracket
below fan motor assembly (E).
□ Connect the wire from the witch cup (F) to the wires exiting
the fan motor assembly (E) by connecting the molded
adaptor plugs together. Carefully tuck all wires and splices
into the switch cup (F).
□ Mount the switch cup (F) to the black bracket below the fan
motor assembly (E) by aligning the three screw holes and
securing with three screws (RR) that were removed in step 1.
AA
G
H
E
TT
G
F
RR
