Attaching the Fan Blades
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADES WHILE INSTALL-
ING, BALANCING THE BLADES, OR CLEANING
THE FAN. DO NO INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
Insert the blade through the slots in the bottom
band. (fFig. 13)
Align the holes from the blade to the holes
from the motor and secure in place with screws
and fiber washers provided. (Fig. 14)
Repeat process with other blades.
1.
2.
3.
Fiber Washers
Blade
Screws
Blade
Motor
Motor
Slot

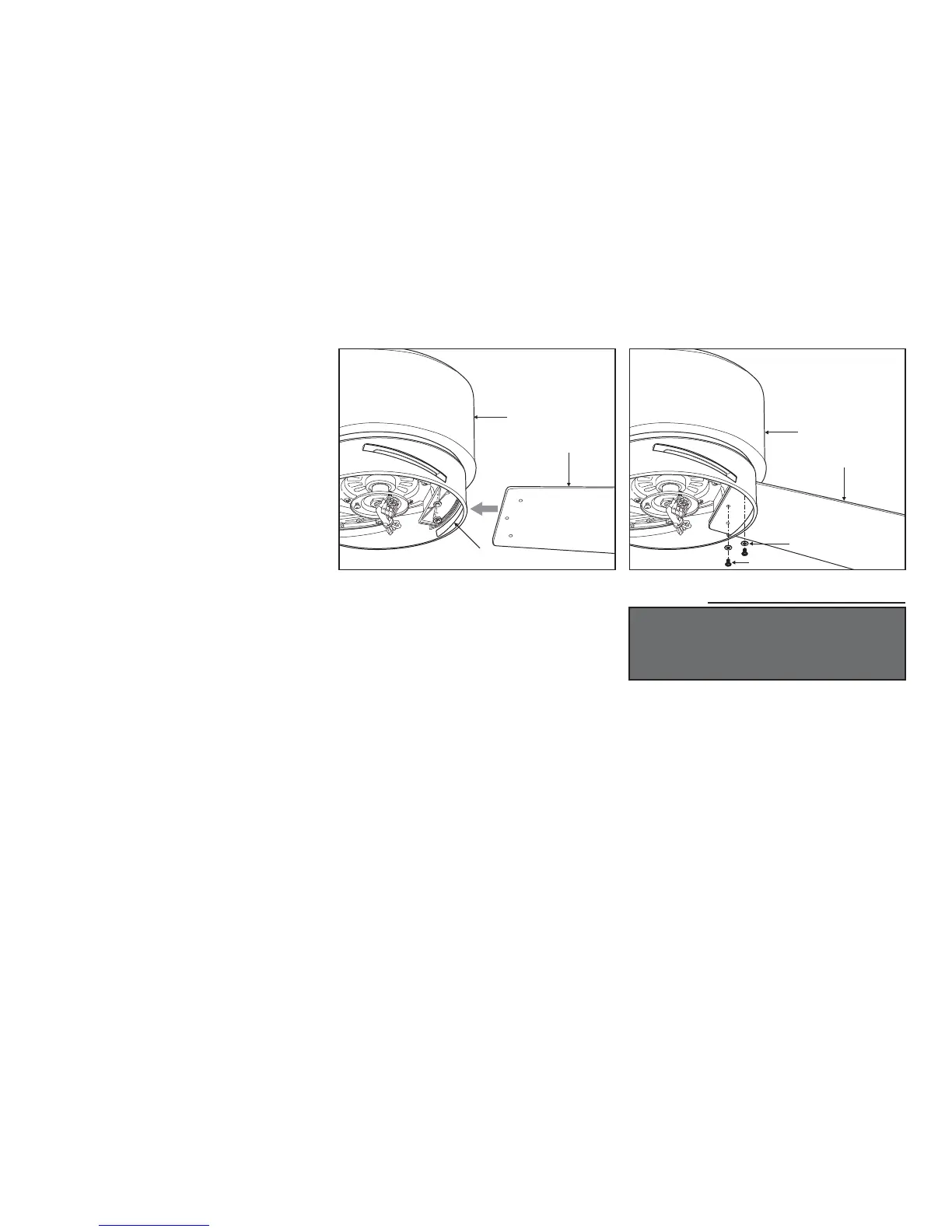

Figure 14
Figure 13
