HAMPTON BAY HARPER - Attaching Right Side Covers; Securing Right Middle Covers to Beam; Inserting Copings into Beams; Securing Copings to Beams

10
Assembly (continued)
17

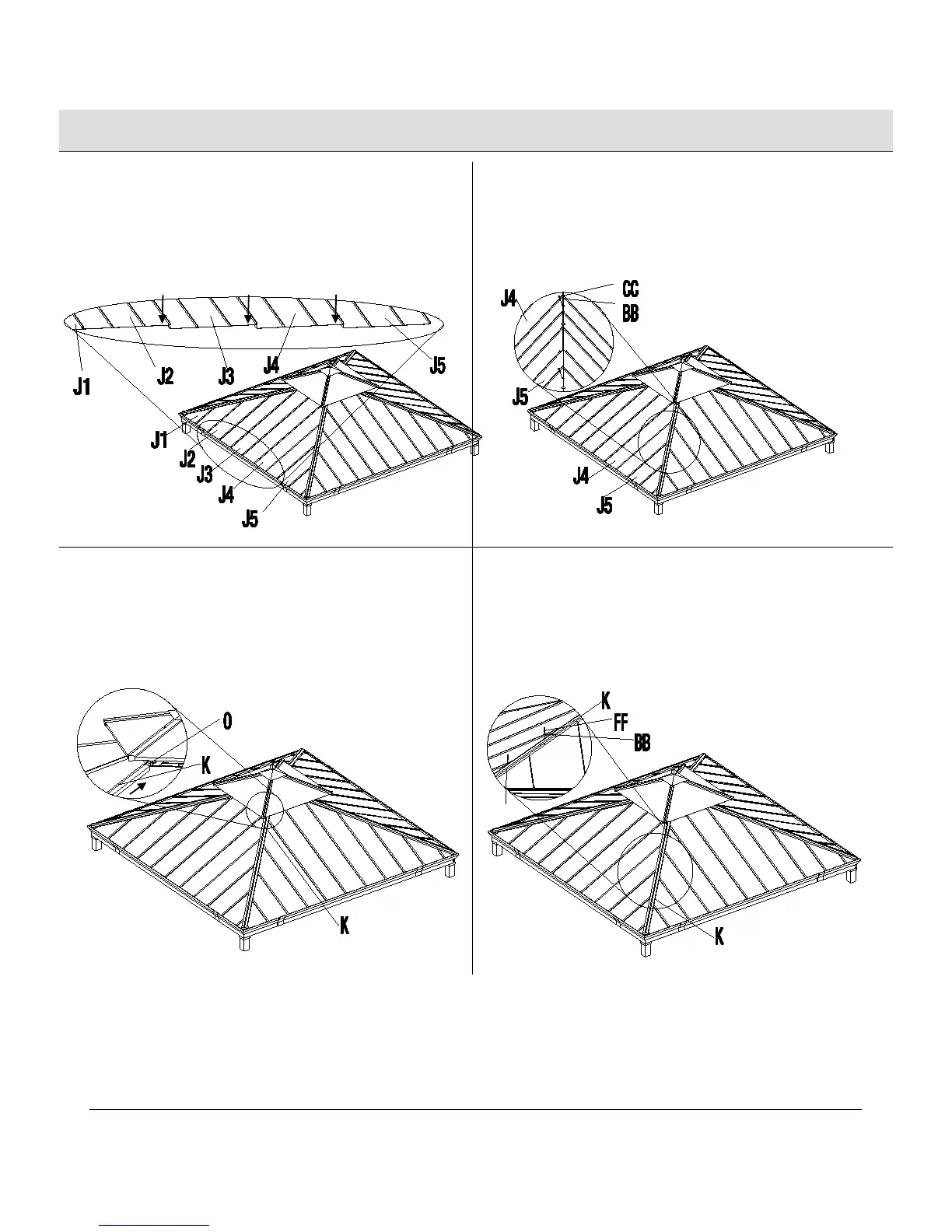

Attaching the right middle covers
18
Attaching the right middle cover
to the right small cover
Ƒ Attach the middle covers (J3) to the left middle covers (J2).
Attach the right middle covers (J4) to the middle covers (J3).
Attach the right small covers (J5) to right middle covers (J4).
Ƒ Use the screws (CC) and flat washers (BB) to secure the
right middle cover (J4) and right small cover (J5) to the beam.
19
Attaching the coping to the small
roof beam
20
Securing the copings to the
beams
Ƒ Insert one end of the copings (K) to the holes of the small roof
beams (O).
Ƒ Use the screws (FF) and flat washers (BB) to secure the
copings (K) to the beam.
