HAMPTON BAY HARPER - Attaching Cover Tablets; Connecting Stake Bases and Posts; Connecting Top Assembly to Posts; Attaching Corner Supports

11 WWW.HOMEDEPOT.CA
Please contact 1-877-527-0313 for further assistance.
Assembly (continued)
21

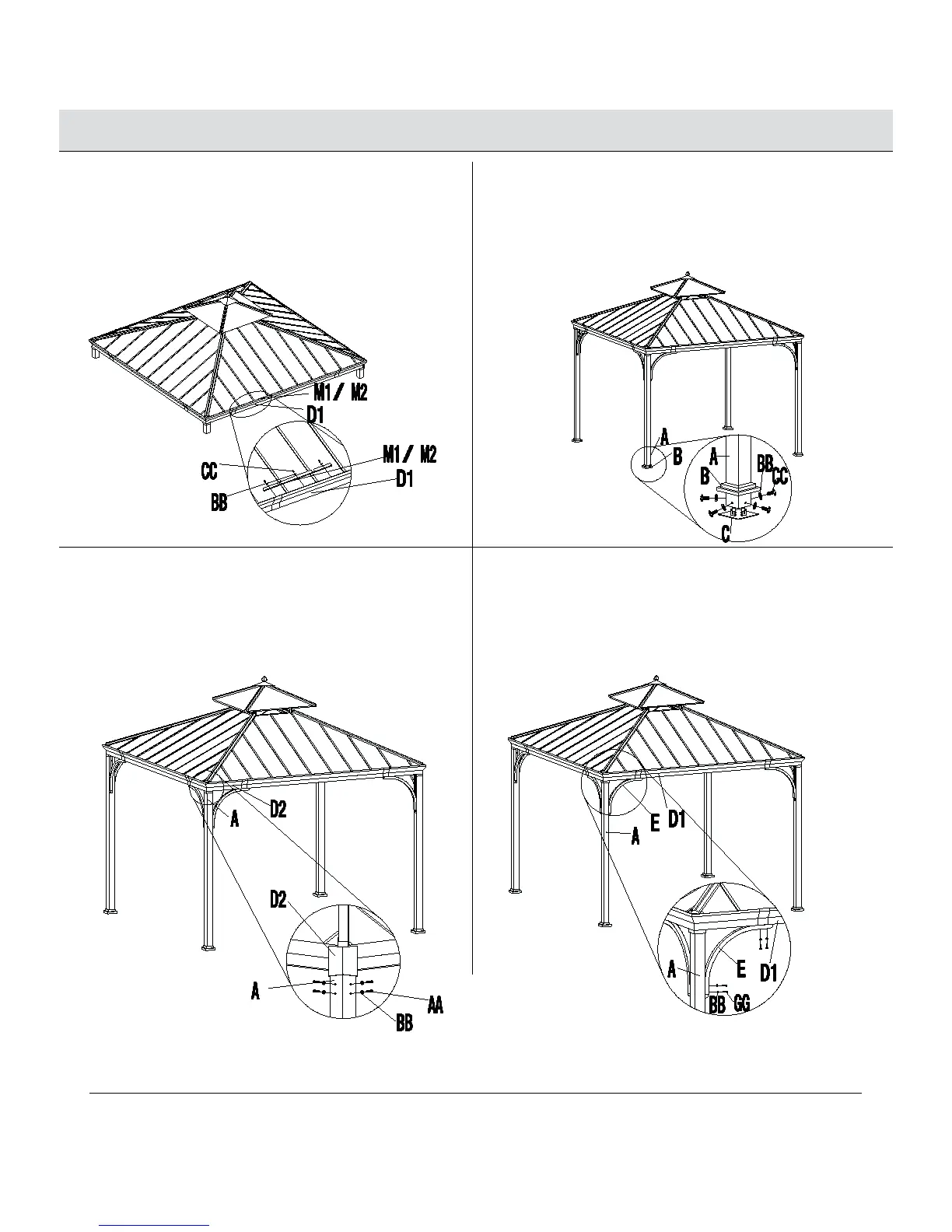

Attaching the cover tablets
22
Connecting the stake base and
post
Ƒ Use the screws (CC) and flat washers (BB) to install the cover
tablets (M) to the decorative grooves (D1).
Ƒ Attach the covers (B) to the posts (A) and connect the stake
bases (C) and posts (A) by using the screws (CC) and flat
washer (BB).
23
Connecting the top assembly to
the posts
24
Attaching the supports
Ƒ Raise the top assembly and insert the posts (A) into the cannula
of the decorative grooves (D1). Then connect them using bolts
(AA) and flat washers (BB).
Ƒ Use the bolts (GG) and flat washers (BB) to install the supports
(E) to the corners of the posts (A) and decorative grooves (D1).
