Assembly (continued)
5

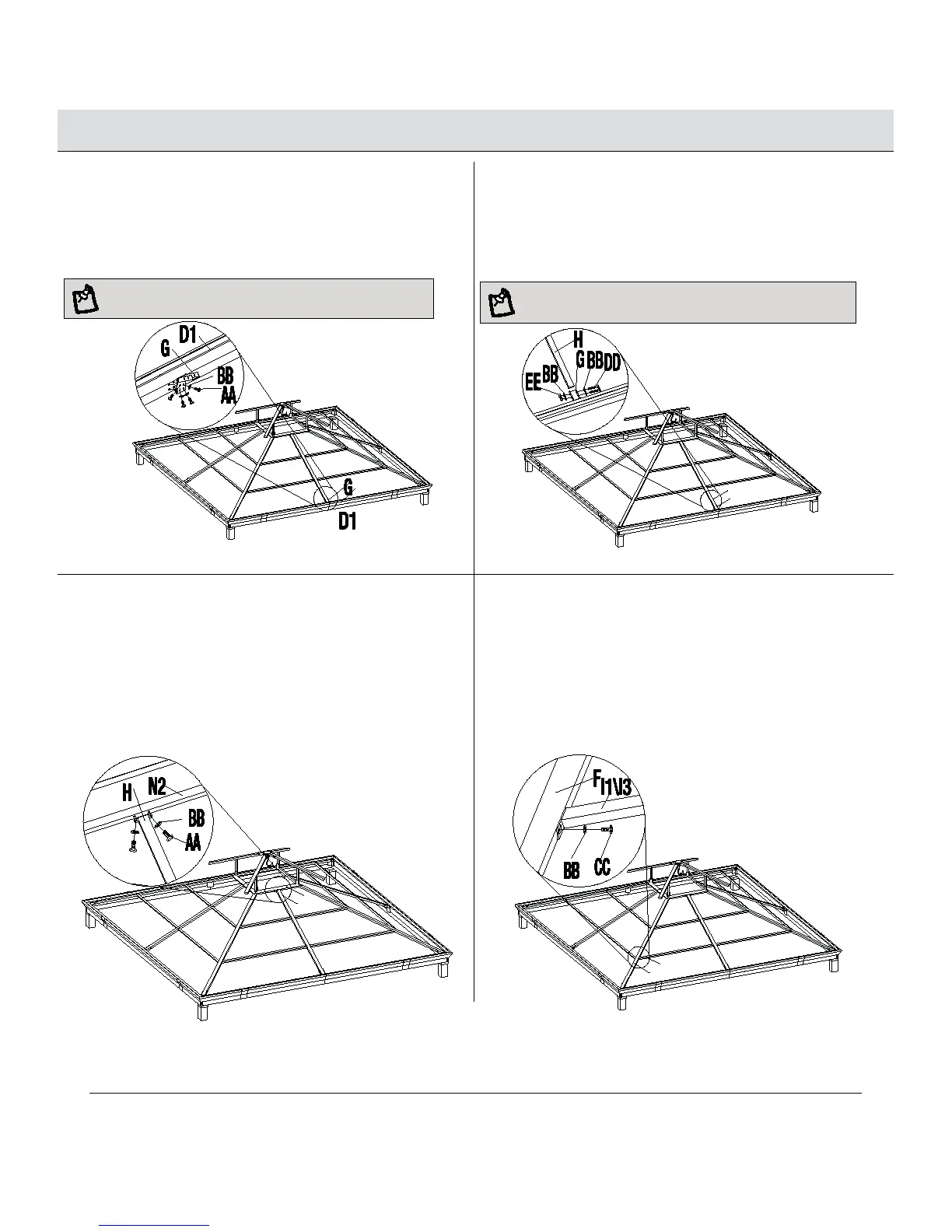

Securing the connectors
6
Securing the middle beam to the
connector
Ƒ Secure the connector (G) to the decorative groove (D1) using
bolts (AA) and flat washers (BB).
NOTE: To avoid destroying the finish, please handle it with
care.
Ƒ Secure the middle beams (H) to the connectors (G) using
screws (DD), flat washers (BB), and nuts (EE).
NOTE: To avoid destroying the finish, please handle it with
care
7
Securing the middle beam to the
frame
8
Securing the beams to the long
beams
Ƒ Use bolts (AA) and flat washers (BB) to secure the middle beam
(H) to the frame (N).
Ƒ Secure the beam 1 (I1) and beam 3 (I3) to beams (F) using
screws (CC) and flat washers (BB). Repeat this step for beam
2 (I2) and beam 4 (I4).
