HAMPTON BAY HARPER - Securing Beams to Middle Beams; Connecting Small Roof Beams; Attaching Small Roof Beams to Frame; Securing Small Roof Covers

8
Assembly (continued)
9
Securing the beams to the middle
beams
10
Attaching the small roof beams
to the connector

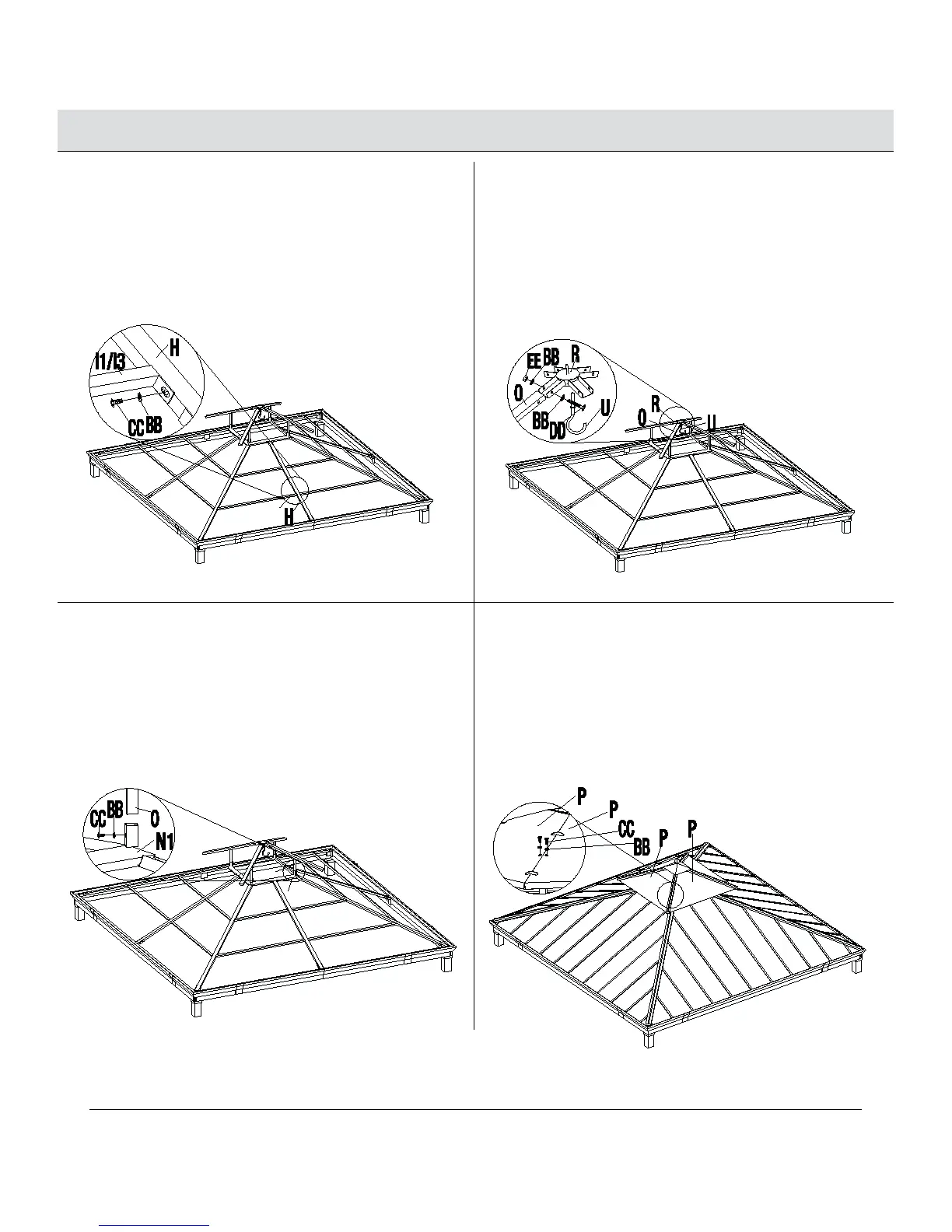

Ƒ Secure the other end of beam 1 (I1) and beam 3 (I3) to the middle
beam (H) using a screw (CC) and flat washer (BB). Repeat this
step for beam 2 (I2) and beam 4 (I4).
Ƒ Attach the small roof beams (O) to the small roof connector
(R) using screws (DD), flat washers (BB), and nuts (EE). Then
install the hook (U) to the small roof connector (R).
11
Attaching the small roof beams to
the frame
12
Securing the small roof cover to
the small roof beam
Ƒ Attach the small roof beams (O) to the frame (N) using screws
(CC) and flat washer (BB).
Ƒ Secure the small roof covers (P) to the small roof beams (O)
using screws (CC) and flat washers (BB).
