Remove the
Canopy Ring
Loosen but
do not Remove
Remove
4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two types
of hanging assemblies; the standard ceiling
installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting.
The "close-to-ceiling" mounting is recommended
in rooms with less than 8-foot ceilings or in areas
where additional space is desired from the floor to
the fan blades.
When using the standard downrod installation, the
distance from the ceiling to the bottom of the fan
blades will be approximately 12 inches. The
"close-to-ceiling" installation reduces the distance
from the ceiling to the bottom of the fan blades to
approximately 9 inches.
Once you have decided which ceiling installation
you will use, proceed with the following
instructions. Where necessary, each section of the
instructions will note the different procedures to
follow for the two types of installation.

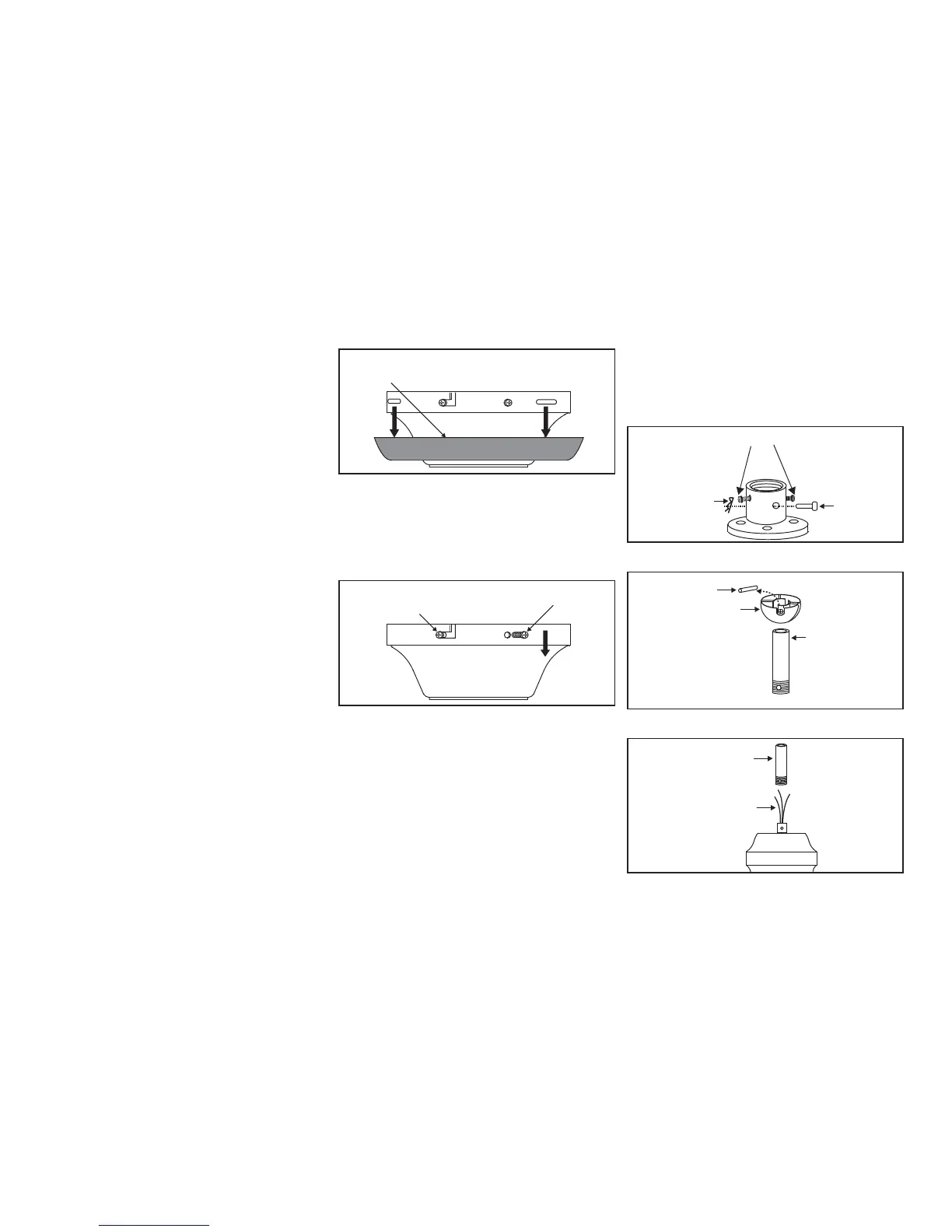

Hanging the Fan
Option 1:
Standard Ceiling Mounting
Figure 5
Figure 6
Remove the canopy ring from the canopy.
(Figure 5).
1.
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws (Figure 6).
2.
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure. 7)
Remove hanger ball from downrod assembly
by loosening set screw, removing the cross pin,
and sliding ball off rod. (Figure 8)
3.
4.
Carefully feed motor wires up through the
downrod. Thread the rod into the coupling.
Next line up holes and replace cotter pin and
clevis pin. Tighten set screws. (Figure 9)
5.
Figure 7
Set screws
Clevis Pin
Cotter Pin
Figure 8
Cross pin
Hanger ball
Downrod
Figure 9
Downrod
Motor Wires
To Next Page
