HAMPTON BAY Miramar - Attaching the Fan Motor Assembly

5

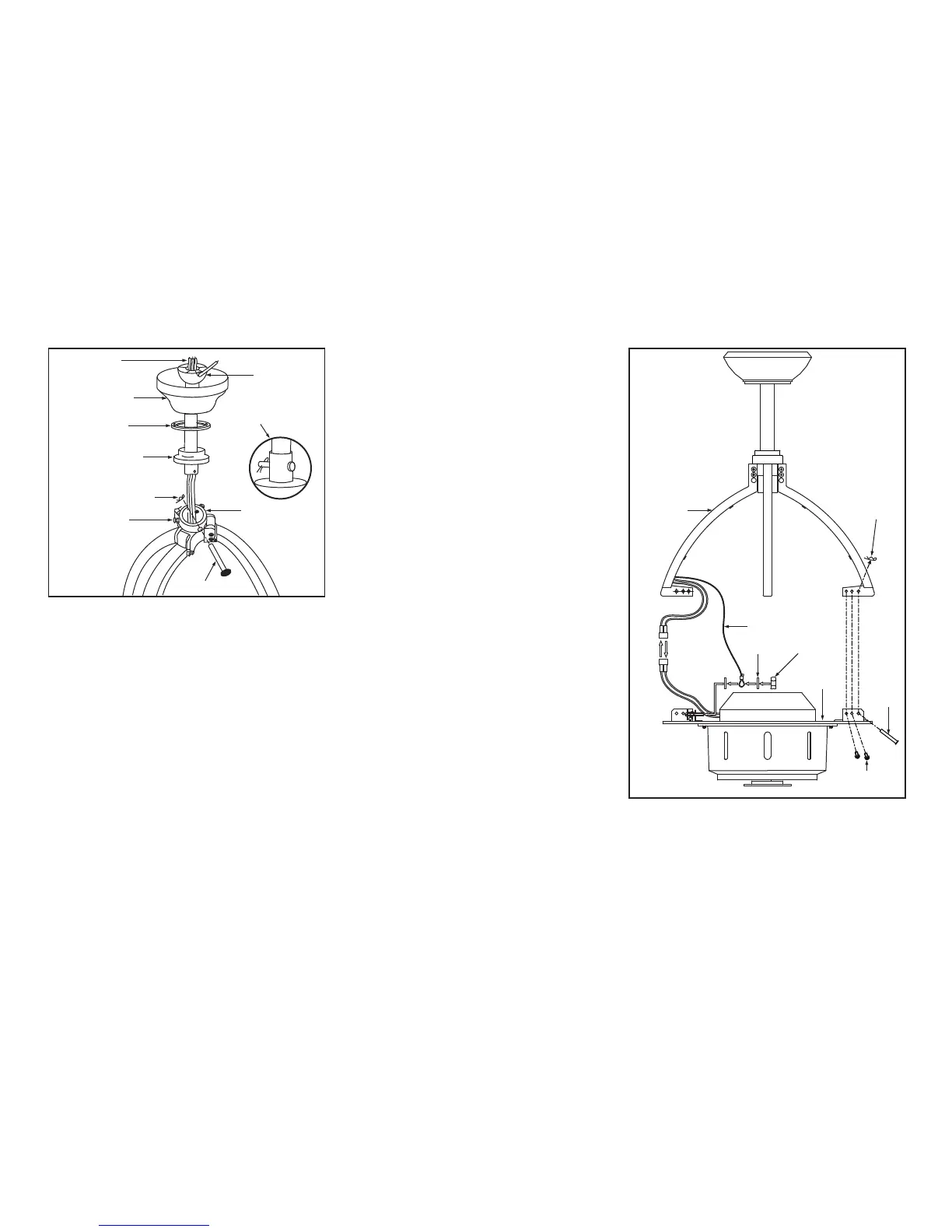

Remove the set screws, clevis pins and cotter
pins from the decorative scroll assembly,
place the decorative scroll in the top plate of
motor assembly, align the screw holes at the
bottom of decorative scroll with holes in the
top plate of fan motor assembly and then
secure with the set screws and clevis pins,
insert the cotter pin through the hole near the
end of the clevis pin until it snaps into its
locked position. Repeat the procedure for the
remaining decorative scrolls. NOTE: Make
sure the three rods are evenly set on the plate
of the motor assembly.
Snap together the wire connection plugs from
decorative scroll assembly and fan motor
assembly. (Figure 7)
Remove the nut and washers from the top plate
of motor assembly and then place the looped
end of the safety cable from the decorative
scroll between the two washers and secure with
nut provided. (Figure 7)
1.
2.
3.
Connection
Plugs
Figure 7
Decorative
Scroll
Cotter Pin
Clevis
Pin
Screws with
Washers
Safety Cable
Top Plate
Washer Nut
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Canopy Cover
Scroll Coupling
Upper Decorative
Coupling Cover
Cotter Pins
Tighten Screw
Firmly
Clevis Pin
Figure 6
Pin in Locked
Positioon
Attaching the Fan Motor
Assembly
