B
EE
EE
A
C
B
EE
C
7

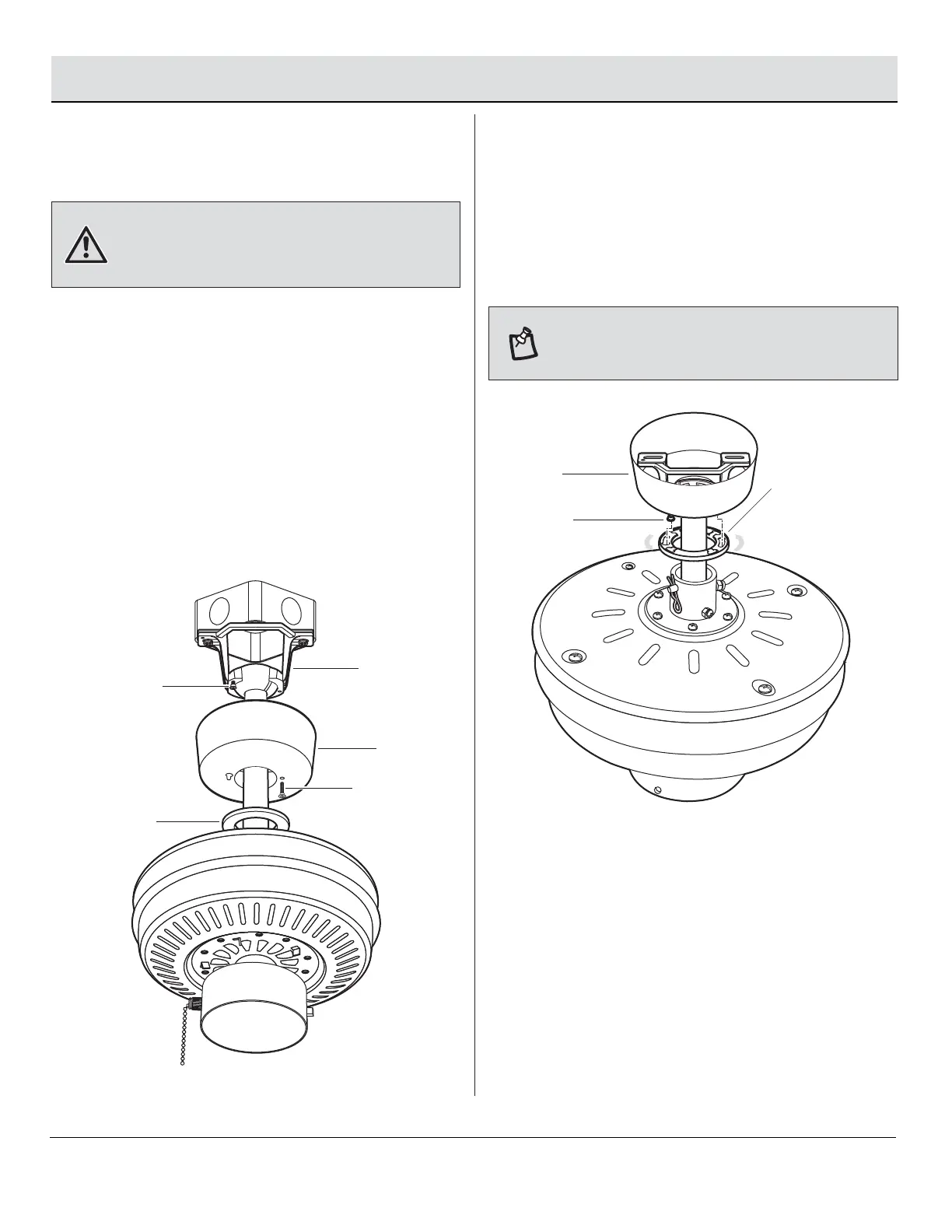

Installing the canopy
8
11 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
□ Tuck the connections neatly into the ceiling outlet
box.
□ Slide the canopy (B) up to the mounting bracket (A)
and place the key hole on the canopy (B) over the
loose mounting bracket screw (EE) on the mounting
bracket (A). Turn the canopy (B) clockwise until the
canopy (B) locks in place at the narrow section of the
key holes.
□ Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Secure
the mounting bracket screw (EE) previously removed
in the hole and tighten the two mounting bracket
screws (EE).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (D) before
attaching the canopy (B) to the mounting bracket (A) by
turning the canopy housing until it drops into place.
NOTE: Adjust the mounting bracket screws (EE) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
□ Attach the canopy bottom cover (C) to the mounting
bracket screw (EE) heads on the bottom of the
canopy (B) by inserting the screw heads into the key
slots in the canopy bottom cover (C) and rotating the
canopy bottom cover (C) clockwise.
Attaching the canopy
bottom cover
Assembly — Hanging the Fan (continued)
To Next Page
